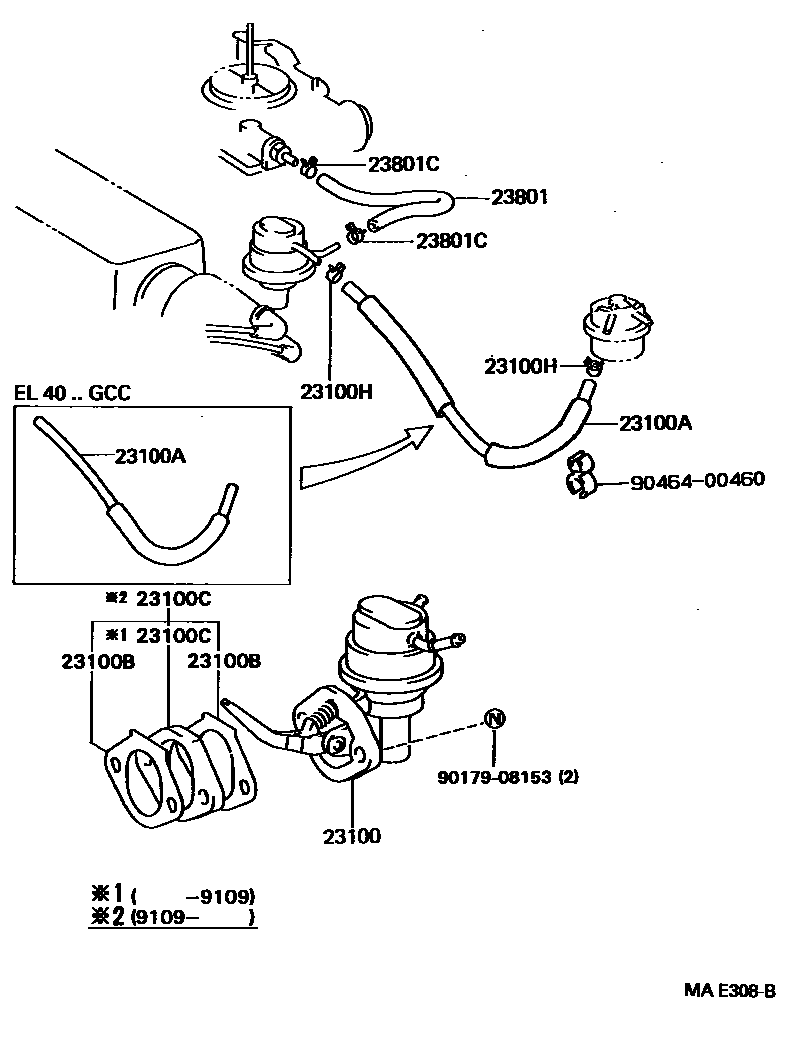

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11080i2E..EL40199009-199409

sub23100-11081

23100AHOSE, FUEL

main23271-11050i2E..EL40..GEN199009-199409

main23271-11210i2E..EL40..GCC199308-199409

23100BGASKET, FUEL PUMP

main90923-05024i2E..EL40199009-199409

23100CINSULATOR, FUEL PUMP

main23915-10020i2E..EL40199009-199109

sub23915-10021

main23915-10021i2E..EL40199109-199409

23100HCLIP(FOR FUEL HOSE)

main96132-41100i2E..EL40199009-199409

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06010i2E..EL40199009-199304

L=100

main95334-06010i2E..EL40199304-199409

L=100

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009i2E..EL40199009-199011

sub96135-51100

main96135-41100i2E..EL40199011-199409

sub96135-51100

9017908153

main90179-08153

9046400460

main90464-00460

9 parts on this diagram · 1 diagram in section
