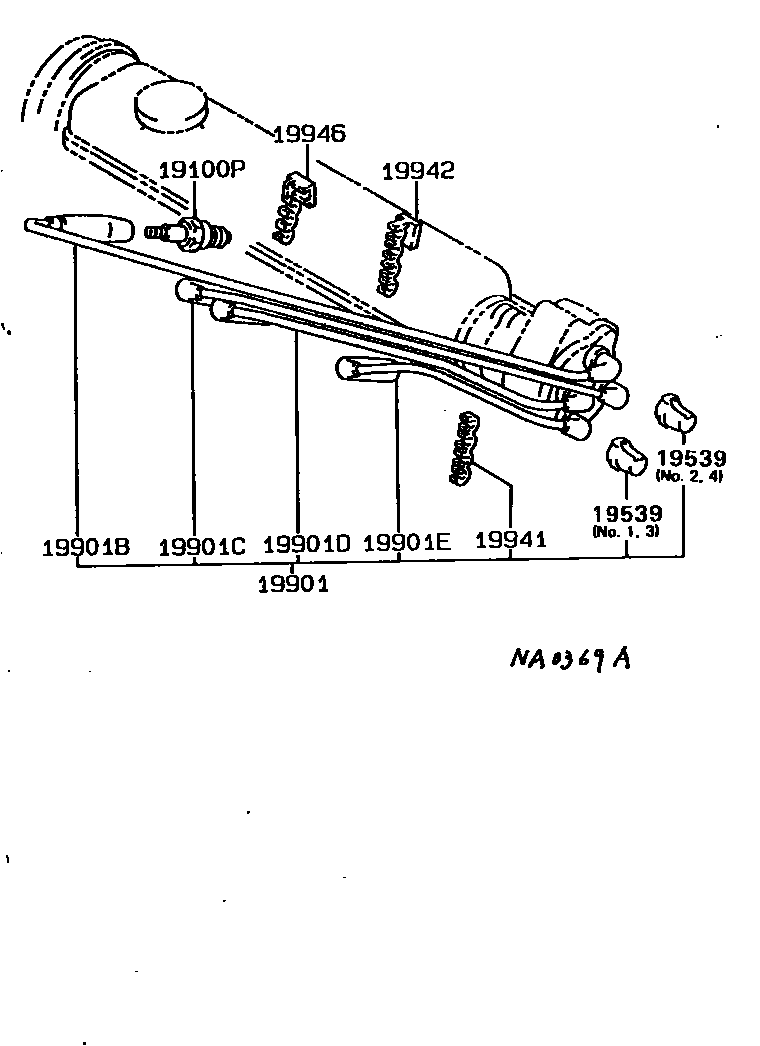

IGNITION COIL & SPARK PLUG / GLOW PLUG
19100PPLUG, SPARK
W20EXR-U
19539HOLDER, RESISTIVE CODE, NO.4
NO.2,4
NO.1,3
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
10 parts on this diagram · 1 diagram in section
