MOUNTING

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-11040i2E..EL40199009-199409

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12303-11050i2E..EL40..MTM199009-199409

sub12303-11051

main12321-11210i2E..EL40..ATM199009-199409

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i2E..EL40..ATM199009-199409

main12325-11070i2E..EL40..MTM199009-199409

12351DAMPER, ENGINE MOUNTING

main12351-11030i2E..EL40..ATM199009-199409

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11160i2E..EL40199009-199409

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11290i2E..EL40..MTM199009-199409

sub12371-11291

main12371-11300i2E..EL40..ATM199009-199409

sub12371-11301

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11170i2E..EL40..MTM199009-199409

main12372-11190i2E..EL40..ATM199009-199409

12511BRACKET, ALTERNATOR, NO.1

main12511-11020i2E..EL40199009-199409

9010510102

main90105-10102

9010510111

main90105-10111

9010510127

main90105-10127

9010510215

main90105-10215

9010510227

main90105-10227

9010510266

main90105-10266

9010510268

main90105-10268

9010510312

main90105-10312

9010510355

main90105-10355

9010908202

main90109-08202

9011908173

main90119-08173

9011910622

main90119-10622

9011910623

main90119-10623

9011910624

main90119-10624

9011912191

main90119-12191

9011912226

main90119-12226

9017910016

main90179-10016

9017910088

main90179-10088

9038710013

main90387-10013

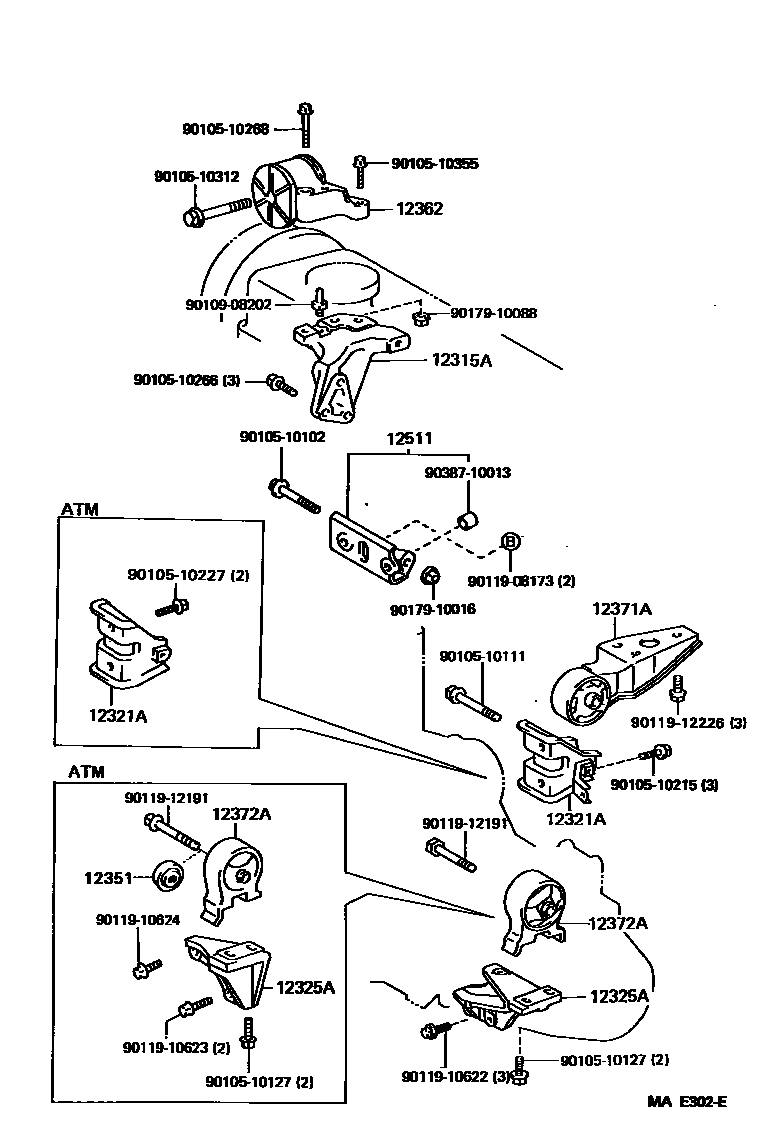

27 parts on this diagram · 1 diagram in section
