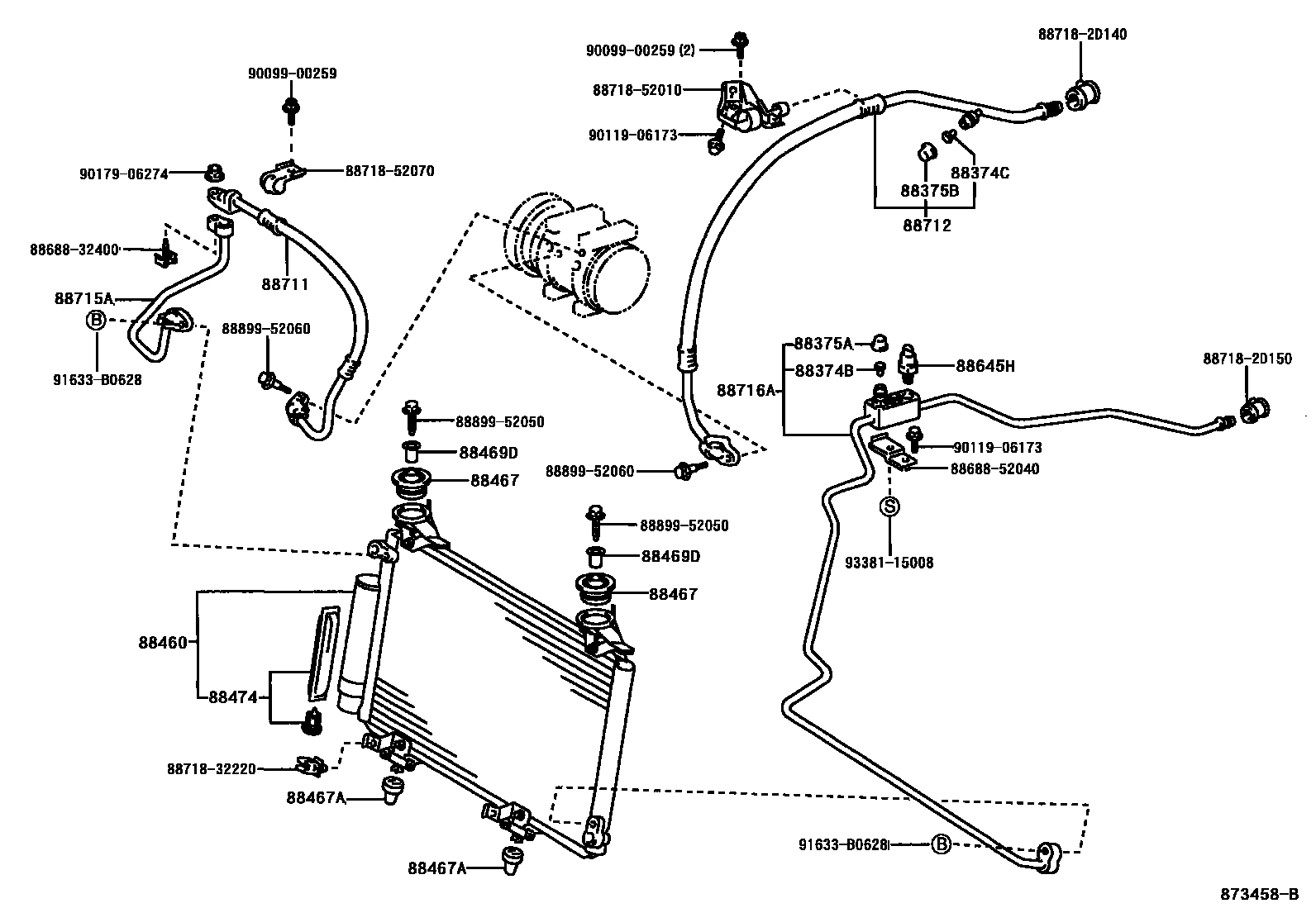

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP1#199908-200208

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP1#199908-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNCP1#199908-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP1#199908-200208

88460CONDENSER ASSY, COOLER

main88450-52150iNCP11..GCC200208-200303

main88450-52151iNCP11..GCC200303-200512

main88450-52161iNCP1#..RHD200308-200512

main88450-52170iNCP1#..LHD..GEN200208-200512

main88450-52181iNCP1#..RHD200208-200512

DEALER OPTION & W(STAY)

main88460-52010iNCP1#..RHD199908-200208

main88460-52020iNCP1#..LHD..GEN199908-200208

main88460-52030iNCP11..GCC199908-200208

main88460-52050iNCP1#..RHD199912-200208

W(STAY)

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iNCP11..RHD;NCP1#..ARL,GCC200303

main88467-52010iNCP1#199908-200208

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020iNCP1#..LHD..GEN199908-200208

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP1#199908-200208

88474DRYER, COOLER

main88474-17010iNCP11..GCC200208

main88474-17010iNCP1#..LHD200202-200208

MAKER OPTION

main88474-47010iNCP1#199908-200202

main88474-47010iNCP1#..ARL,GEN200202-200208

DEALER OPTION

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP1#..GEN199908-200308

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-52050iNCP11..GCC199908-200208

main88711-52020iNCP12..ARL200008-200208

DEALER OPTION

main88711-52021iNCP1#..ARL,GEN200008-200208

main88711-52040iNCP11..GCC200208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-52060iNCP1#..LHD200208

main88712-52030iNCP1#..RHD199908-200208

MAKER OPTION

main88712-52050iNCP1#..LHD199908-200208

main88712-52160iNCP1#..RHD200208-200307

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-52020iNCP11..GCC199908-200208

main88715-52090iNCP11..GCC200208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-52040iNCP1#..RHD200208

main88706-52100iNCP1#..RHD200208-200307

DEALER OPTION

main88706-52250iNCP11..GCC200208

main88706-52260iNCP1#..LHD..GEN200208

MAKER OPTION

main88706-52310iNCP1#..LHD..GEN200208-200307

DEALER OPTION

main88716-52030iNCP1#..LHD..GEN199908-200208

MAKER OPTION

main88716-52040iNCP1#..RHD199908-200208

MAKER OPTION

main88716-52090iNCP11..GCC199908-200112

main88716-52110iNCP1#..RHD199908-200208

DEALER OPTION

main88716-52160iNCP1#..LHD..GEN199908-200208

DEALER OPTION

main88716-52240iNCP11..GCC200112-200208

8868832400BRACKET, COOLER DIAPHRAGM

main88688-32400

8868852040BRACKET, COOLER DIAPHRAGM

main88688-52040

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8871852010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52010

8871852070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52070

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9009900259

main90099-00259

9011906173

main90119-06173

9017906274

main90179-06274

91633B0628

main91633-B0628

9338115008

main93381-15008

28 parts on this diagram · 9 diagrams in section
