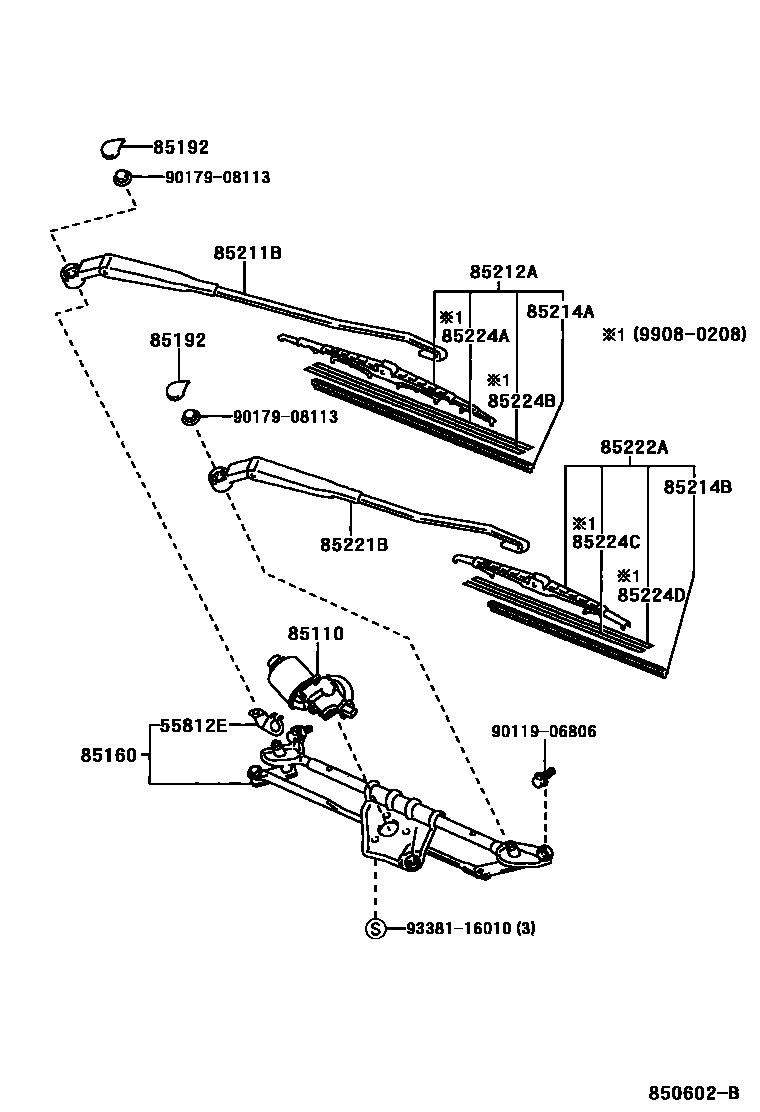

WINDSHIELD WIPER

0001 1RHD 0002 1LHD

55812EBRACKET, COWL VENTILATOR

main55812-52030iNCP1#..RHD199908-200208

main55812-52040iNCP1#..LHD199908-200208

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52020iNCP11..RHD199908-200208

sub85110-52030

main85110-52050iNCP12..ARL199908-200208

main85110-52060iNCP1#..LHD199908-200208

85160LINK ASSY, WINDSHIELD WIPER

main85150-52010iNCP1#..LHD199908-200208

main85150-52020iNCP11..RHD199908-200208

main85150-52030iNCP12..ARL199908-200208

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP1#199908-200208

85211BARM, FRONT WIPER, RH

main85211-52020iNCP11..RHD199908-200208

main85211-52040iNCP12..ARL199908-200208

main85211-52050iNCP1#..LHD199908-200208

85212ABLADE, FR WIPER, RH

main85212-26060iNCP11..RHD200207-200312

sub85212-36040

main85212-52010iNCP1#..LHD199908-200512

sub85212-52011

main85212-52020iNCP11..RHD199908-200207

sub85212-26060

main85212-52040iNCP11..RHD200312-200512

sub85212-52041

main85212-52050iNCP12..ARL199908-200511

sub85212-46010

85214ARUBBER, WIPER, RH

main85214-20280iNCP11..RHD199908-200312

sub85214-48031

main85214-22410iNCP12..ARL200106-200208

sub85214-48010

main85214-33110iNCP12..ARL199908-200106

sub85214-22410

main85214-44080iNCP1#..LHD199908-200312

main85214-48010iNCP12..ARL200208-200601

main85214-48030iNCP11..RHD200312-200512

sub85214-48031

main85214-68010iNCP1#..LHD200312-200601

sub85214-68011

85214BRUBBER, WIPER, LH

main85214-20280iNCP1#..LHD199908-200312

sub85214-48031

main85214-44080iNCP1#..RHD199908-200312

main85214-48030iNCP1#..LHD200312-200512

sub85214-48031

main85214-68010iNCP1#..RHD200312-200512

sub85214-68011

85221BARM, FRONT WIPER, LH

main85221-52020iNCP11..RHD199908-200208

main85221-52040iNCP12..ARL199908-200208

main85221-52050iNCP1#..LHD199908-200208

85222ABLADE, FR WIPER, LH

main85222-26060iNCP1#..LHD200312-200512

main85222-52020iNCP1#..RHD199908-200312

sub85222-52140

main85222-52030iNCP1#..LHD199908-200312

sub85222-33160

main85222-52140iNCP1#..RHD200312-200512

sub85222-52141

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280iNCP11..RHD199908-200208

main85224-33040iNCP12..ARL199908-200208

main85224-44031iNCP1#..LHD199908-200208

sub85224-44070

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280iNCP11..RHD199908-200208

main85224-33040iNCP12..ARL199908-200208

main85224-44031iNCP1#..LHD199908-200208

sub85224-44070

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20280iNCP1#..LHD199908-200208

main85224-44070iNCP1#..RHD199908-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20280iNCP1#..LHD199908-200208

main85224-44070iNCP1#..RHD199908-200208

9011906806

main90119-06806

9017908113

main90179-08113

9338116010

main93381-16010

17 parts on this diagram · 2 diagrams in section
