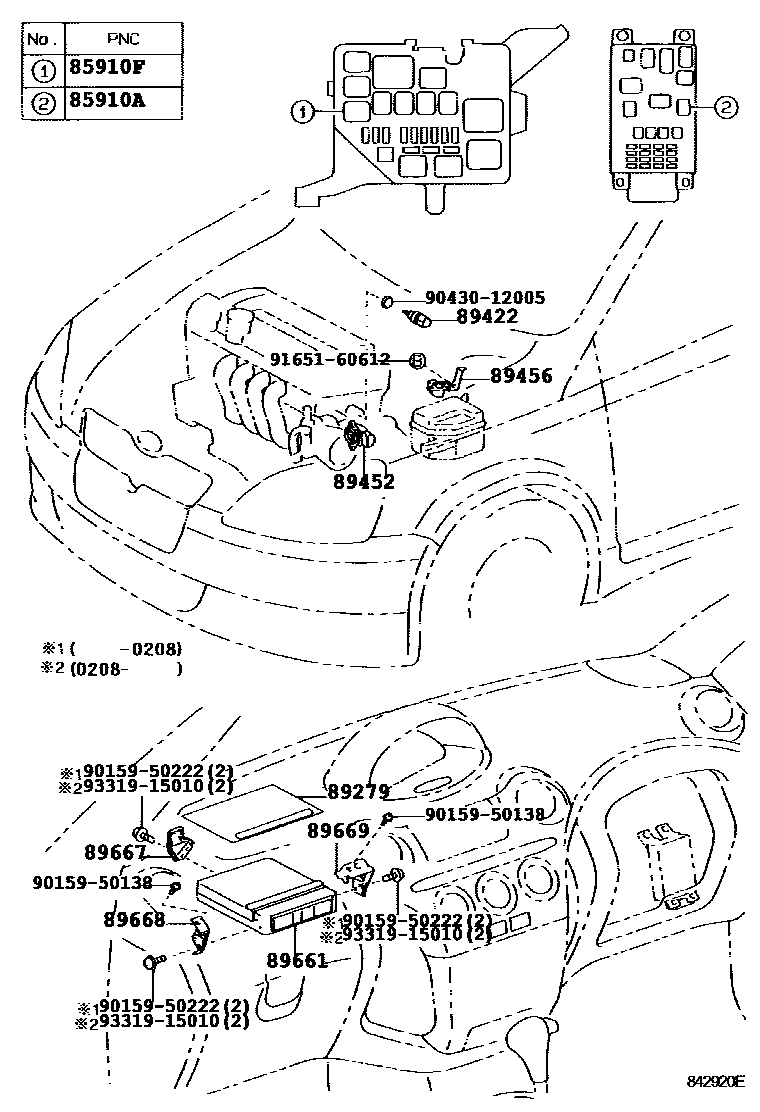

ELECTRONIC FUEL INJECTION SYSTEM
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89279COVER, ENGINE CONTROL COMPUTER
LEADED GASOLINE SPEC
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
MARK 89422-16010*369
MARK 89422-22030*369
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89456RESISTOR, VARIABLE
89661COMPUTER, ENGINE CONTROL
sub89661-52642
sub89661-52652
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
LEADED GASOLINE SPEC
9015950138
main90159-50138
9015950222
main90159-50222
9043012005
main90430-12005
9165160612
main91651-60612
9331915010
main93319-15010
15 parts on this diagram · 2 diagrams in section
