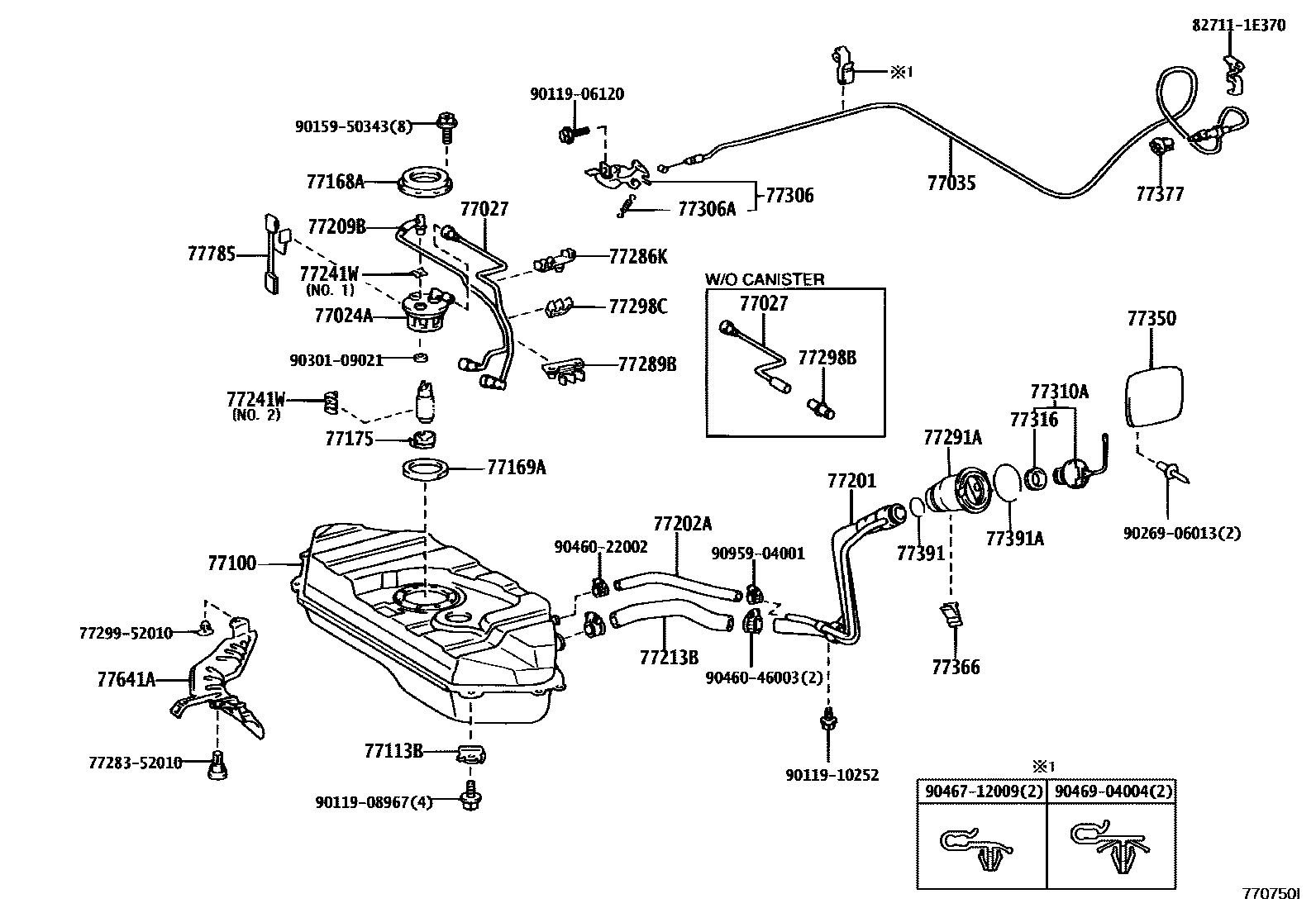

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
W(CHARCOAL CANISTER)
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113BPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-52021
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=360
L=360,LEADED GASOLINE SPEC
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
LEADED GASOLINE SPEC
77286KCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77298BCLAMP, FUEL TUBE, NO.4
77298CCLAMP, FUEL TUBE, NO.4
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
W(LUGGAGE COMPARTMENT DOOR OPENER)
W(LUGGAGE COMPARTMENT DOOR OPENER)
77306ASPRING, FUEL LID OPEN LEVER
W(LUGGAGE COMPARTMENT DOOR OPENER)
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77641APROTECTOR, FUEL TANK, NO.1
77785HARNESS, FUEL PUMP
7728352010BRACKET, FUEL TUBE
main77283-52010
7729952010CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52010
827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E370
9011906120
main90119-06120
9011908967
main90119-08967
9011910252
main90119-10252
9015950343
main90159-50343
9026906013
main90269-06013
9030109021
main90301-09021
9046022002
main90460-22002
9046046003
main90460-46003
9046712009
main90467-12009
9046904004
main90469-04004
9095904001
main90959-04001
43 parts on this diagram · 3 diagrams in section
