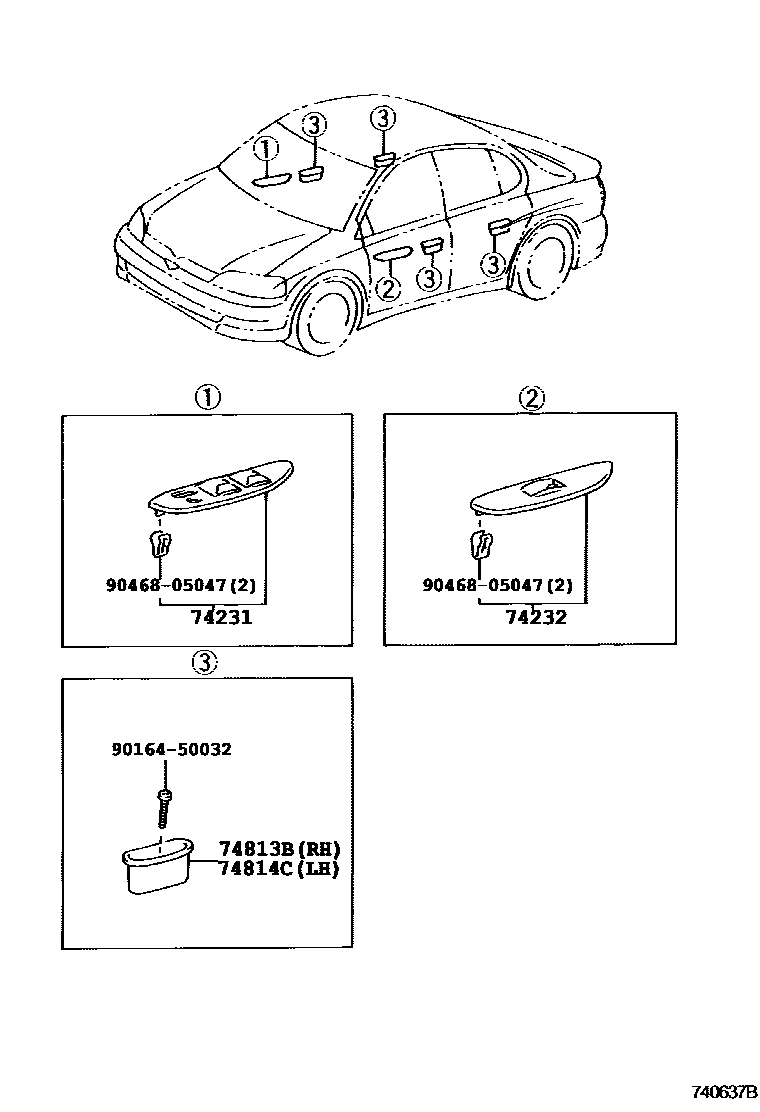

ARMREST & VISOR

0001 1 0002 1

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52010iNCP1#..RHD199908-200208

main74231-52010-B0iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main74231-52010-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

main74231-52030iNCP1#..LHD199908-200208

main74231-52030-B0iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main74231-52030-B1iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main74231-52030-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52010iNCP1#..LHD199908-200208

main74232-52010-B0iNCP11..GCC200208-200212

SHADOW GRAY,TRIM1#

main74232-52010-B2iNCP1#..LHD200212-200512

DK.GRAY,TRIM1#

main74232-52010-E0iNCP1#..LHD200208-200512

SANDAL WOOD,TRIM4#

main74232-52030iNCP1#..RHD199908-200208

main74232-52030-B0iNCP1#..RHD200212-200512

DK.GRAY,TRIM1#

main74232-52030-E0iNCP1#..RHD200208-200512

SANDAL WOOD,TRIM4#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-B0×2iNCP1#199908-200208

SHADOW GRAY,TRIM1#

main74813-52010-B1×2iNCP1#199908-200208

AMETHYST,TRIM9#

main74813-52010-B2×2iNCP1#..ARL,GCC200208-200512

DK.GRAY,TRIM1#

main74813-52010-E0×2iNCP1#200208-200512

SANDAL WOOD,TRIM4#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B0×2iNCP1#199908-200208

SHADOW GRAY,TRIM1#

main74814-52010-B1×2iNCP1#199908-200208

AMETHYST,TRIM9#

main74814-52010-B2×2iNCP1#..ARL,GCC200208-200512

DK.GRAY,TRIM1#

main74814-52010-E0×2iNCP1#200208-200512

SANDAL WOOD,TRIM4#

9016450032

main90164-50032

9046805047

main90468-05047

6 parts on this diagram · 2 diagrams in section
