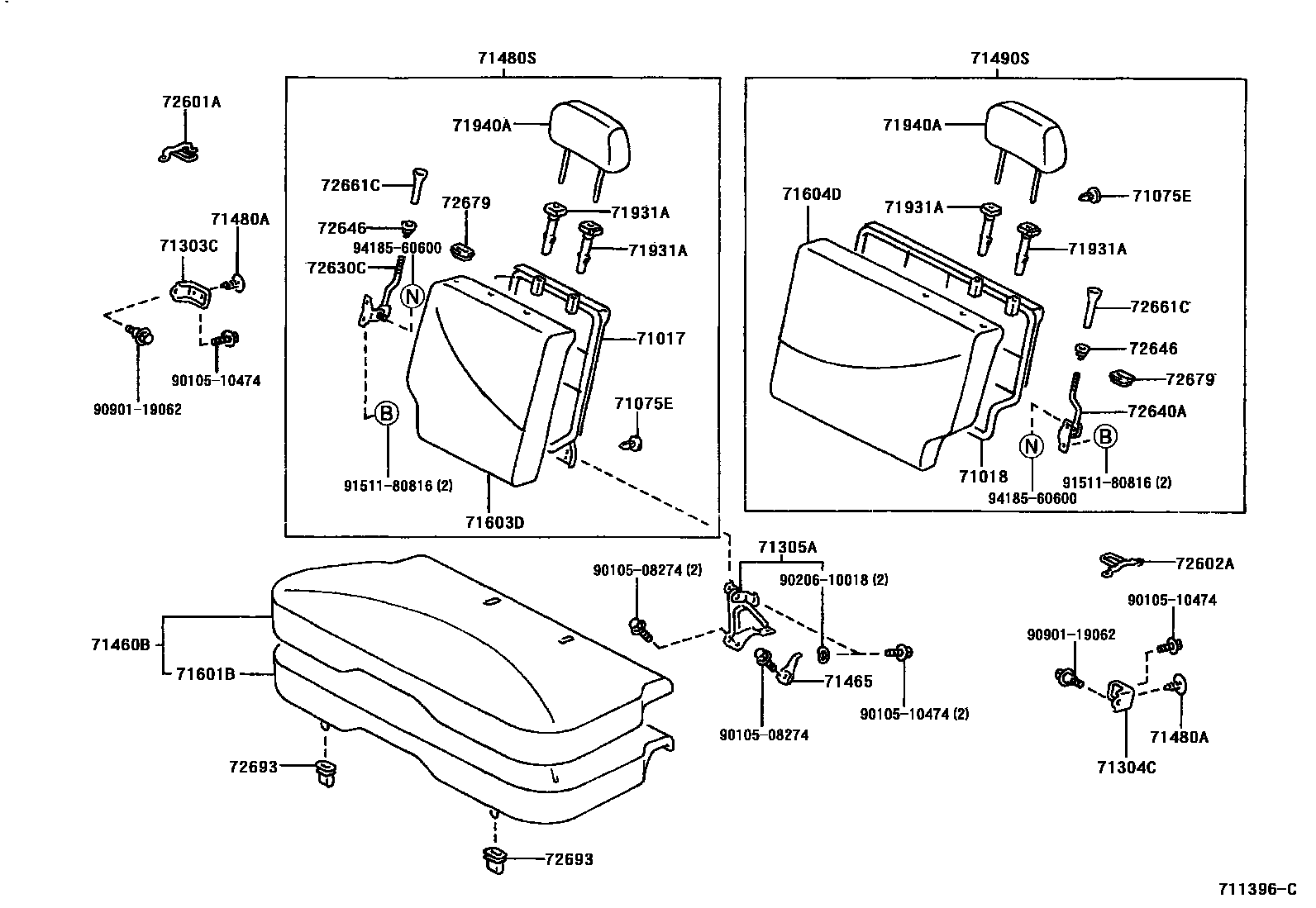

REAR SEAT & SEAT TRACK

0001 16:4 SPRIT SEAT 0002 1FIXED SEAT 0003 16:4 SPRIT SEAT 0004 1FIXED SEAT

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52100iNCP1#..GEN199908-200208

main71017-52210iNCP1#..ARL,GCC200201-200208

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52040iNCP1#..GEN199908-200208

main71018-52050iNCP1#..ARL,GCC199908-200201

main71018-52051iNCP1#..ARL,GCC200201-200208

71075ECLIP(FOR REAR SEAT)

main90467-09118iNCP1#199908-200512

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71345-52010iNCP1#199908-200208

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71345-52010iNCP1#199908-200208

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-52010iNCP1#199908-199912

main71305-52011iNCP1#199912-200208

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-52160-B0iNCP12..ARL199908-200208

SEAT = TYPE A-*104,LT. AMETHYST,TRIM9#

main71460-52190-B0iNCP1#199908-200208

SEAT = TYPE B-*104,LT. AMETHYST,TRIM9#

main71460-52190-B1iNCP1#199908-200208

SEAT = TYPE B-*104,GRAY,TRIM1#

71465SPRING, REAR SEAT CUSHION, NO.5

main71465-52010iNCP1#199908-200208

71480ACLIP (FOR REAR SEATBACK)

main90467-06070-B6iNCP1#..ARL,GCC200208-200512

DK.GRAY,TRIM1#,4#

main90467-06070-B6iNCP1#..GEN200208-200212

DK.GRAY,TRIM4#

main90467-06070-P0iNCP1#199908-200208

SHADOW GRAY,TRIM1#,9#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-52320-B1iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#

main71480-52320-B2iNCP1#..GEN199908-200204

GRAY,TRIM1#

main71480-52320-B3iNCP1#..GEN200204-200208

GRAY,TRIM1#

main71480-52330-B1iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#

main71480-52330-B2iNCP1#..ARL,GCC199908-200204

GRAY,TRIM1#

main71480-52330-B3iNCP1#..ARL,GCC200204-200208

GRAY,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-52140-B1iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#

main71490-52140-B2iNCP1#..GEN199908-200204

GRAY,TRIM1#

main71490-52140-B3iNCP1#..GEN200204-200208

GRAY,TRIM1#

main71490-52150-B1iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#

main71490-52150-B2iNCP1#..ARL,GCC199908-200204

GRAY,TRIM1#

main71490-52150-B3iNCP1#..ARL,GCC200204-200208

GRAY,TRIM1#

71601BPAD SUB-ASSY, REAR SEAT CUSHION W/COVER

main71601-52400-B0iNCP12..ARL199908-200208

SEAT = TYPE A-*104,LT. AMETHYST,TRIM9#

main71601-52430-B0iNCP1#199908-200208

SEAT = TYPE B-*104,LT. AMETHYST,TRIM9#,ARACO

main71601-52430-B1iNCP1#199908-200208

SEAT = TYPE B-*104,GRAY,TRIM1#,ARACO

main71601-52460-B0iNCP12..ARL199908-200208

SEAT = TYPE A-*104,LT. AMETHYST,TRIM9#,TACHIESU

main71601-52490-B0iNCP1#199908-200208

SEAT = TYPE B-*104,LT. AMETHYST,TRIM9#,TACHIESU

main71601-52490-B1iNCP1#199908-200208

SEAT = TYPE B-*104,GRAY,TRIM1#,TACHIESU

main71601-5C440iNCP1#200208-200601

TACHIESU

main71601-5C440-B0iNCP1#..ARL,GCC200208-200212

MD.GRAY,TRIM17,19

main71601-5C440-B0iNCP1#..GEN200208-200601

MD.GRAY,TRIM17

main71601-5C440-E0iNCP1#200208-200601

MD.NEUTRAL BONE,TRIM40

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52580-B0iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#,ARACO

main71603-52580-B1iNCP1#..ARL,GCC199908-200208

GRAY,TRIM1#,ARACO

main71603-52590-B0iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#,ARACO

main71603-52590-B1iNCP1#..GEN199908-200208

GRAY,TRIM1#,ARACO

main71603-52620-B0iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#,TACHIESU

main71603-52620-B1iNCP1#..ARL,GCC199908-200208

GRAY,TRIM1#,TACHIESU

main71603-52630-B0iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#,TACHIESU

main71603-52630-B1iNCP1#..GEN199908-200208

GRAY,TRIM1#,TACHIESU

main71603-5C740-B0iNCP1#..GEN200208-200512

MD.GRAY,TRIM17

main71603-5C740-E0iNCP1#..GEN200208-200512

MD.NEUTRAL BONE,TRIM40

main71603-5C750iNCP1#..ARL,GCC200208-200601

TACHIESU

main71603-5C750-B0iNCP1#..ARL,GCC200208-200212

MD.GRAY,TRIM17,19

main71603-5C750-B0iNCP1#..ARL,GCC200212-200601

MD.GRAY,TRIM17

main71603-5C750-E0iNCP1#..ARL,GCC200208-200601

MD.NEUTRAL BONE,TRIM40

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52270-B0iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#,ARACO

main71604-52270-B1iNCP1#..ARL,GCC199908-200208

GRAY,TRIM1#,ARACO

main71604-52290-B0iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#,ARACO

main71604-52290-B1iNCP1#..GEN199908-200208

GRAY,TRIM1#,ARACO

main71604-52320-B0iNCP1#..ARL,GCC199908-200208

LT. AMETHYST,TRIM9#,TACHIESU

main71604-52320-B1iNCP1#..ARL,GCC199908-200208

GRAY,TRIM1#,TACHIESU

main71604-52340-B0iNCP1#..GEN199908-200208

LT. AMETHYST,TRIM9#,TACHIESU

main71604-52340-B1iNCP1#..GEN199908-200208

GRAY,TRIM1#,TACHIESU

main71604-52890-B0iNCP1#..GEN200208-200512

MD.GRAY,TRIM17

main71604-52890-E0iNCP1#..GEN200208-200512

MD.NEUTRAL BONE,TRIM40

main71604-5C010iNCP1#..ARL,GCC200208-200601

TACHIESU

main71604-5C010-B0iNCP1#..ARL,GCC200212-200601

MD.GRAY,TRIM17

main71604-5C010-B0iNCP1#..ARL,GCC200208-200212

MD.GRAY,TRIM17,19

main71604-5C010-E0iNCP1#..ARL,GCC200208-200601

MD.NEUTRAL BONE,TRIM40

71931ASUPPORT, REAR SEAT HEADREST

main71930-52010-A0iNCP1#200208-200512

W(LOCK),IVORY,TRIM4#

main71930-52010-B0iNCP1#199908-200008

W(LOCK),SHADOW GRAY,TRIM1#

main71930-52010-B2iNCP1#199908-200208

W(LOCK),AMETHYST,TRIM9#

main71930-52010-B4iNCP1#..ARL,GCC200008-200512

W(LOCK),DK.GRAY,TRIM1#

main71931-52010-A0iNCP1#200208-200512

W/O(LOCK),IVORY,TRIM4#

main71931-52010-B0iNCP1#199908-200008

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-52010-B2iNCP1#199908-200208

W/O(LOCK),AMETHYST,TRIM9#

main71931-52010-B4iNCP1#..ARL,GCC200008-200512

W/O(LOCK),DK.GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-52030-B1iNCP12..ARL199908-200208

SEAT = TYPE A-*104,LT. AMETHYST,TRIM9#

main71940-52040-B0iNCP1#199908-200208

SEAT = TYPE B-*104,LT. AMETHYST,TRIM9#

main71940-52040-B1iNCP1#199908-200208

SEAT = TYPE B-*104,GRAY,TRIM1#

main71940-52040-B3iNCP1#..GEN200208-200601

SEAT = TYPE B-*104,MD.GRAY,TRIM1#

main71940-52040-E1iNCP1#200208-200601

SEAT = TYPE B-*104,MD.NEUTRAL BONE,TRIM4#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-52050iNCP1#199908-200512

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-52050iNCP1#199908-200512

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-52030iNCP1#..GEN199908-200512

main72630-52040iNCP1#..ARL,GCC199908-200112

main72630-52041iNCP1#..ARL,GCC200112-200512

72640ALOCK ASSY, REAR SEATBACK, LH

main72630-52030iNCP1#..GEN199908-200512

main72640-52030iNCP1#..ARL,GCC199908-200111

main72640-52031iNCP1#..ARL,GCC200111-200512

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-B1iNCP1#199908-200204

SHADOW GRAY,TRIM1#

main72646-33010-B2iNCP1#199908-200208

AMETHYST,TRIM9#

main72646-33010-B4iNCP1#..GEN200204-200512

DK.GRAY,TRIM1#

main72646-33010-E1iNCP1#200208-200512

FAWN,TRIM4#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-B0iNCP1#199908-200204

SHADOW GRAY,TRIM1#

main72661-32030-B1iNCP1#199908-200208

AMETHYST,TRIM9#

main72661-32030-B3iNCP1#..GEN200204-200601

DK.GRAY,TRIM1#

main72661-32030-B3iNCP1#..ARL,GCC200208-200212

DK.GRAY,TRIM17,19

main72661-32030-E0iNCP1#200208-200601

FAWN,TRIM4#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-20030-B1iNCP1#..ARL,GCC200208-200212

DK.GRAY,TRIM17,19,4#

main72679-20030-B1iNCP1#..ARL,GCC200208-200512

DK.GRAY,TRIM1#,4#

main72679-20030-C0iNCP1#..ARL,GCC199908-200208

BLACK,TRIM1#,9#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10040iNCP1#199908-200208

9010508274

main90105-08274

9010510474

main90105-10474

9020610018

main90206-10018

9090119062

main90901-19062

9151180816

main91511-80816

9418560600

main94185-60600
