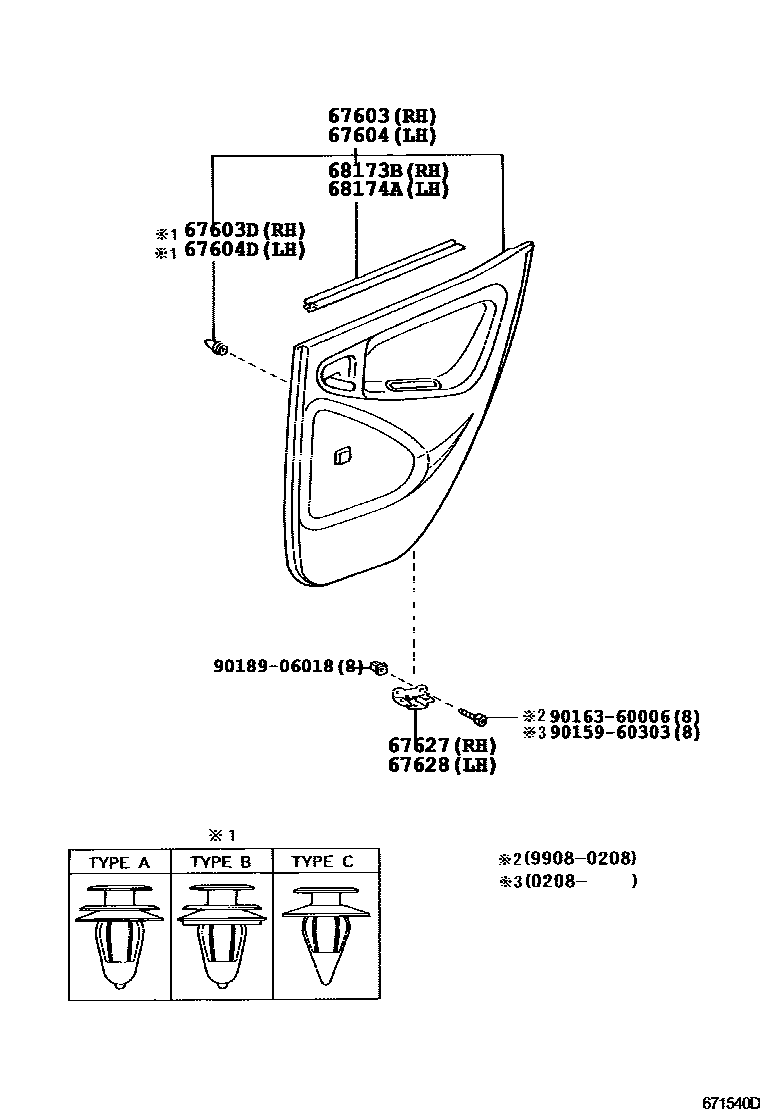

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-52190-B0iNCP11199908-200212

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67630-52190-B1iNCP11199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67630-52190-B4iNCP11200212-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-52190-E0iNCP11200208-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67630-52200-B0iNCP11199908-200212

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67630-52200-B1iNCP11199908-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67630-52200-B2iNCP11200212-200601

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67630-52200-E0iNCP11200208-200601

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

main67630-52230-B0iNCP1#199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub67630-52230

main67630-52230-B1iNCP1#199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

sub67630-52230

main67630-52230-B2iNCP1#200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67630-52230

main67630-52230-B4iNCP1#200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub67630-52230

main67630-52230-E0iNCP1#200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

sub67630-52230

main67630-52240-B0iNCP1#199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

sub67630-52240

main67630-52240-B1iNCP1#199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

sub67630-52240

main67630-52240-B2iNCP1#200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

sub67630-52240

main67630-52240-B4iNCP1#200208-200212

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

sub67630-52240

main67630-52240-E0iNCP1#200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

sub67630-52240

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12050iNCP1#200208-200601

TYPE A:REFER ILLUST.

main67771-12050iNCP1#199908-200208

TYPE A:REFER TO ILLUSTRATION

main67771-16170iNCP1#200208-200601

TYPE C:REFER ILLUST.

main67771-16170iNCP1#199908-200208

TYPE C:REFER TO ILLUSTRATION

main67771-28020iNCP1#200208-200601

TYPE B:REFER ILLUST.

main67771-28020iNCP1#199908-200208

TYPE B:REFER TO ILLUSTRATION

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-52190-B0iNCP11199908-200212

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67640-52190-B1iNCP11199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67640-52190-B4iNCP11200212-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-52190-E0iNCP11200208-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67640-52200-B0iNCP11199908-200212

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67640-52200-B1iNCP11199908-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67640-52200-B2iNCP11200212-200601

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67640-52200-E0iNCP11200208-200601

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

main67640-52230-B0iNCP1#199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub67640-52230

main67640-52230-B1iNCP1#199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

sub67640-52230

main67640-52230-B2iNCP1#200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

sub67640-52230

main67640-52230-B4iNCP1#200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

sub67640-52230

main67640-52230-E0iNCP1#200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

sub67640-52230

main67640-52240-B0iNCP1#199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

sub67640-52240

main67640-52240-B1iNCP1#199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

sub67640-52240

main67640-52240-B2iNCP1#200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

sub67640-52240

main67640-52240-B4iNCP1#200208-200212

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

sub67640-52240

main67640-52240-E0iNCP1#200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

sub67640-52240

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050iNCP1#199908-200208

TYPE A:REFER TO ILLUSTRATION

main67771-12050iNCP1#200208-200601

TYPE A:REFER ILLUST.

main67771-16170iNCP1#199908-200208

TYPE C:REFER TO ILLUSTRATION

main67771-16170iNCP1#200208-200601

TYPE C:REFER ILLUST.

main67771-28020iNCP1#200208-200601

TYPE B:REFER ILLUST.

main67771-28020iNCP1#199908-200208

TYPE B:REFER TO ILLUSTRATION

67627BRACKET, REAR DOOR TRIM, RH

main67625-52010iNCP1#199908-200208

67628BRACKET, REAR DOOR TRIM, LH

main67625-52010iNCP1#199908-200208

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-52050iNCP1#199908-200202

sub68173-52051

main68173-52051iNCP1#200202-200512

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-52050iNCP1#199908-200202

sub68174-52051

main68174-52051iNCP1#200202-200512

9015960303

main90159-60303

9016360006

main90163-60006

9018906018

main90189-06018

11 parts on this diagram · 2 diagrams in section
