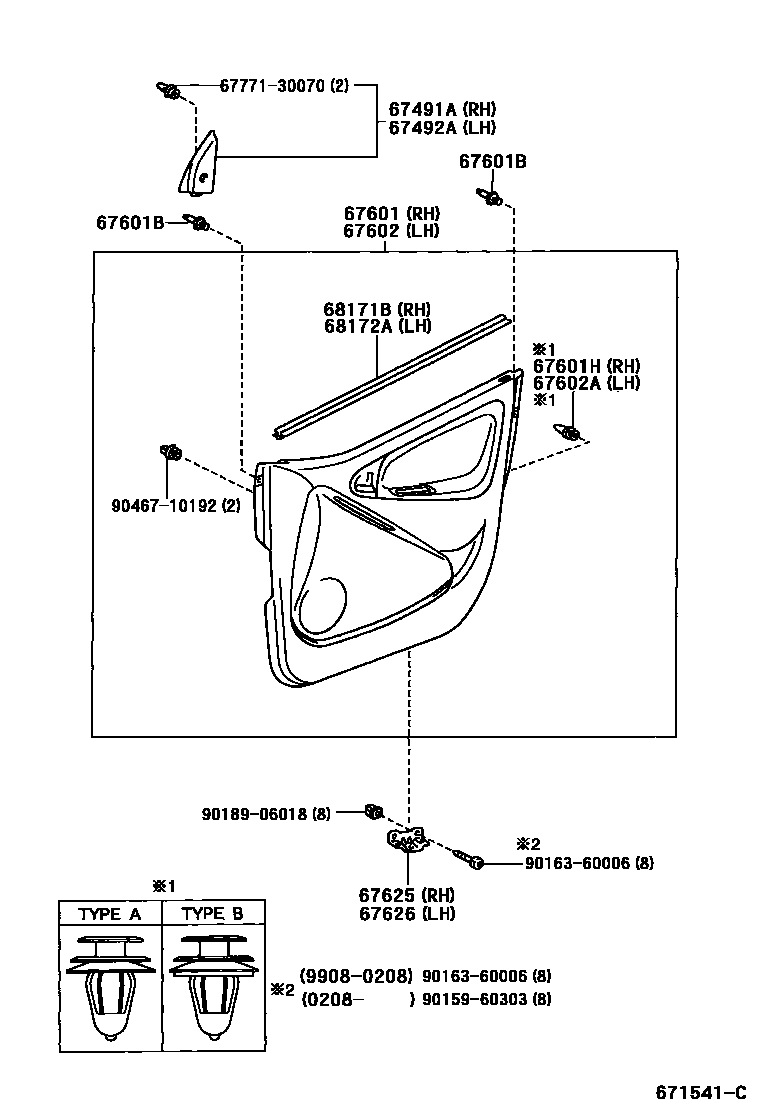

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52010iNCP1#200208

main67491-52020iNCP1#..ARL,GEN200001-200208

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52010iNCP1#200208

main67492-52020iNCP1#..ARL,GEN200001-200208

W(OUTSIDE MIRROR=STICK ADJUSTABLE)

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-52680-B0iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-52680-B1iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67610-52680-B2iNCP1#..RHD200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-52680-B3iNCP12..ARL200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-52680-E0iNCP1#..RHD200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67610-52690-B0iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67610-52690-B1iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

main67610-52690-B2iNCP1#..RHD200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67610-52690-B3iNCP12..ARL200208-200212

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67610-52690-E0iNCP1#..RHD200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

main67610-52710-B0iNCP11..GCC200208-200212

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-52710-B1iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67610-52710-B4iNCP11..LHD200212-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-52710-E0iNCP11..RHD200208-200304

W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67610-52720-B0iNCP11..GCC200208-200212

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67610-52720-B1iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67610-52720-B2iNCP11..RHD200212-200304

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67610-52720-E0iNCP11..RHD200208-200304

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

main67610-52730-B0iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-52730-B1iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67610-52730-B2iNCP1#..LHD200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-52730-B4iNCP1#..LHD200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-52730-E0iNCP1#..LHD200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67610-52740-B0iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67610-52740-B1iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

main67610-52740-B2iNCP1#..LHD200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67610-52740-B4iNCP1#..LHD200208-200212

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67610-52740-E0iNCP1#..LHD200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

main67610-52750-B0iNCP11..RHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67610-52750-B1iNCP11..RHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67610-52750-B2iNCP11..RHD200304-200512

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67610-52750-E0iNCP11..RHD200304-200512

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67610-52760-B0iNCP11..RHD200004-200208

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67610-52760-B1iNCP11..RHD200004-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67610-52760-B2iNCP11..RHD199908-200004

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67610-52760-B3iNCP11..RHD200304-200512

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67610-52760-E0iNCP11..RHD200304-200512

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

main67610-52760-K0iNCP11..RHD199908-200004

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07190-B0×6iNCP1#199908-200207

SHADOW GRAY,TRIM1#

main90467-07190-B1×6iNCP1#199908-200208

AMETHYST,TRIM9#

main90467-07190-B2×6iNCP1#..ARL,GCC200210-200512

DK.GRAY,TRIM1#

main90467-07190-E1×6iNCP1#200208-200512

SANDAL WOOD,TRIM4#

67601HRETAINER, DOOR TRIM, RH

main67771-12050×3iNCP1#200208-200512

TYPE A

main67771-28020×3iNCP1#200208-200512

TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-52680-B0iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52680-B1iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67620-52680-B2iNCP1#..RHD200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-52680-B3iNCP12..ARL200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52680-E0iNCP1#..RHD200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67620-52690-B0iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67620-52690-B1iNCP1#..RHD199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

main67620-52690-B2iNCP1#..RHD200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67620-52690-B3iNCP12..ARL200208-200212

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67620-52690-E0iNCP1#..RHD200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

main67620-52700-B0iNCP11..RHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52700-B1iNCP11..RHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67620-52700-B4iNCP11..RHD200212-200512

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-52700-E0iNCP11..RHD200208-200512

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67620-52710-B0iNCP11..RHD200208-200212

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67620-52710-B1iNCP11..RHD199908-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67620-52710-B2iNCP11..RHD200212-200512

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67620-52710-E0iNCP11..RHD200208-200512

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

main67620-52720-B0iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52720-B1iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67620-52720-B2iNCP1#..LHD200212-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-52720-B4iNCP1#..LHD200208-200212

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52720-E0iNCP1#..LHD200208-200601

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67620-52730-B0iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67620-52730-B1iNCP1#..LHD199908-200208

DOOR TRIM=TYPE A-*104,AMETHYST,TRIM9#

main67620-52730-B2iNCP1#..LHD200212-200601

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67620-52730-B4iNCP1#..LHD200208-200212

DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#

main67620-52730-E0iNCP1#..LHD200208-200601

DOOR TRIM=TYPE A-*104,SANDAL WOOD,TRIM4#

main67620-52740-B0iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SHADOW GRAY,TRIM1#

main67620-52740-B1iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),AMETHYST,TRIM9#

main67620-52740-B2iNCP11..LHD200212-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67620-52740-E0iNCP11..LHD200208-200601

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),SANDAL WOOD,TRIM4#

main67620-52750-B0iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#

main67620-52750-B1iNCP11..LHD199908-200208

DOOR TRIM=TYPE B-*104,AMETHYST,TRIM9#

main67620-52750-B2iNCP11..LHD200212-200601

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67620-52750-E0iNCP11..LHD200208-200601

DOOR TRIM=TYPE B-*104,SANDAL WOOD,TRIM4#

67602ARETAINER, DOOR TRIM, LH

main67771-12050×3iNCP1#199908-200208

TYPE A:REFER TO ILLUSTRATION

main67771-28020×3iNCP1#200208-200512

TYPE B

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52010iNCP1#199908-200208

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52010iNCP1#199908-200208

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52080iNCP1#199908-200202

main68171-52081iNCP1#200202-200208

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52080iNCP1#199908-200202

main68172-52081iNCP1#200202-200208

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015960303

main90159-60303

9016360006

main90163-60006

9018906018

main90189-06018

9046710192

main90467-10192

16 parts on this diagram · 4 diagrams in section
