PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

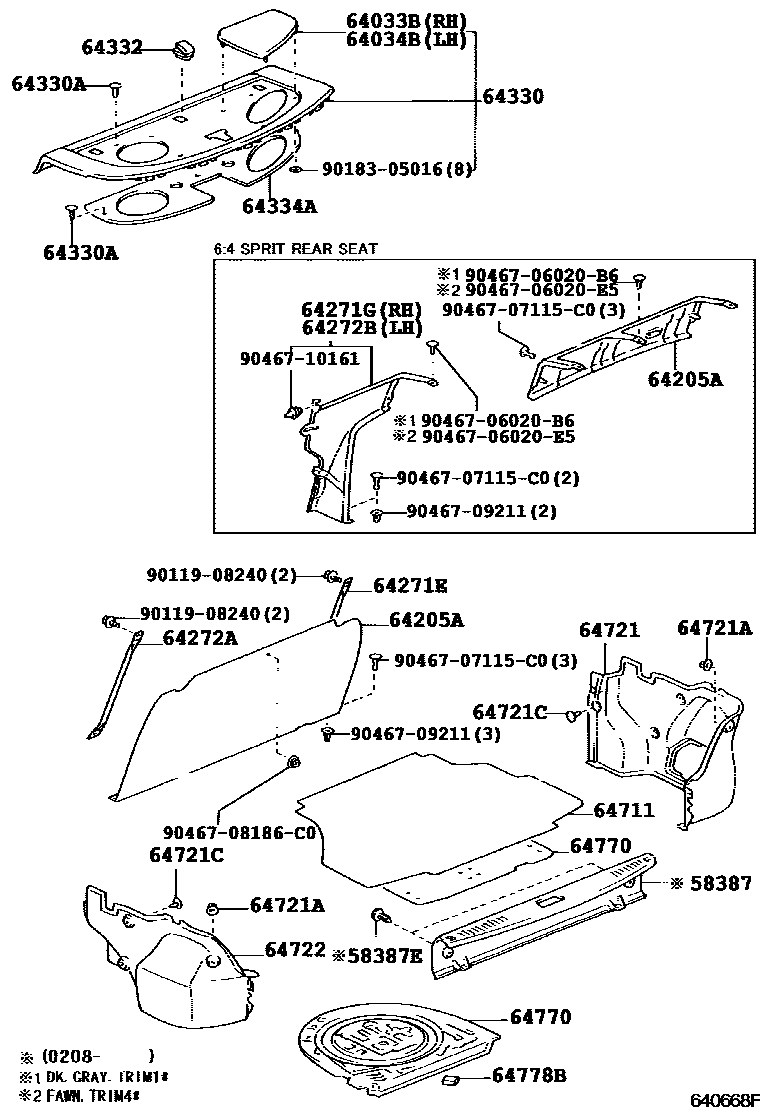

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-52010-B0i200208-200212
SHADOW GRAY,TRIM4#
sub58387-52010
main58387-52010-B0i200208-200212
SHADOW GRAY,TRIM1#,4#
sub58387-52010
main58387-52010-B1i200212-200512
DK.GRAY,TRIM1#,4#
sub58387-52010
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
main90467-08186-B4i200508-200601
DK.GRAY
sub90467-08186
main90467-08186-C0i200208-200212
BLACK,TRIM4#
sub90467-08186
main90467-08186-C0i200208-200508
BLACK,TRIM1#,4#
sub90467-08186
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
main64383-52010-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub64383-52010
main64383-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
sub64383-52010
main64383-52010-B2i200212-200512
DK.GRAY,TRIM1#
sub64383-52010
main64383-52010-E0i200208-200512
FAWN,TRIM4#
sub64383-52010
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
main64384-52010-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub64384-52010
main64384-52010-B0i200208-200212
SHADOW GRAY,TRIM1#
sub64384-52010
main64384-52010-B2i200212-200512
DK.GRAY,TRIM1#
sub64384-52010
main64384-52010-E0i200208-200512
FAWN,TRIM4#
sub64384-52010
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-52010i199908-200004
sub64275-52011
sub90467-08186
main64275-52011i200004-200512
main64275-52020-B0i200208-200212
SHADOW GRAY,TRIM4#
sub64275-52020
main64275-52020-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub64275-52020
main64275-52020-B0i200208-200212
SHADOW GRAY,TRIM1#,4#
sub64275-52020
main64275-52020-B2i200212-200512
DK.GRAY,TRIM1#,4#
sub64275-52020
64271EPANEL, ROOM PARTITION
main64241-52010i199908-200208
64271GBOARD, ROOM PARTITION, RH
main64271-52010-B0i200208-200212
SHADOW GRAY,TRIM1#,4#
sub64271-52010
main64271-52010-B0i200208-200212
SHADOW GRAY,TRIM4#
sub64271-52010
main64271-52010-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub64271-52010
main64271-52010-B2i200212-200512
DK.GRAY,TRIM1#,4#
sub64271-52010
64272APANEL, ROOM PARTITION, LH
main64242-52010i199908-200208
64272BBOARD, ROOM PARTITION, LH
main64272-52010-B0i200208-200212
SHADOW GRAY,TRIM1#,4#
sub64272-52010
main64272-52010-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub64272-52010
main64272-52010-B0i200208-200212
SHADOW GRAY,TRIM4#
sub64272-52010
main64272-52010-B2i200212-200512
DK.GRAY,TRIM1#,40
sub64272-52010
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-52040-C0i199908-200208
W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#,9#
main64330-52050-C0i199908-200208
BLACK,TRIM1#,9#
main64330-52060-C0i199908-200104
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#,9#
main64330-52061-C0i200104-200208
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#,9#
main64330-52070-C0i199908-200104
W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#,9#
main64330-52071-C0i200104-200208
W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#,9#
main64330-52080-C0i199908-200208
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#,9#
main64330-52090-C0i199908-200208
W(SPEAKER),BLACK,TRIM1#,9#
main64330-52110-C0i200208-200511
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#
main64330-52110-E0i200208-200511
W(HIGH MOUNT STOP LAMP & SPEAKER),FAWN,TRIM4#
main64330-52120-C0i200208-200212
W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#
main64330-52120-E0i200208-200212
W(HIGH MOUNT STOP LAMP),FAWN,TRIM4#
main64330-52130-C0i200208-200511
W(SPEAKER),BLACK,TRIM1#
main64330-52130-E0i200208-200511
W(SPEAKER),FAWN,TRIM4#
main64330-52140-C0i200208-200212
BLACK,TRIM1#
main64330-52140-E0i200208-200212
FAWN,TRIM4#
main64330-52150-C0i200208-200512
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#
main64330-52150-E0i200208-200512
W(HIGH MOUNT STOP LAMP & SPEAKER),FAWN,TRIM4#
main64330-52160-C0i200208-200512
W(HIGH MOUNT STOP LAMP),BLACK,TRIM1#
main64330-52160-E0i200208-200512
W(HIGH MOUNT STOP LAMP),FAWN,TRIM4#
main64330-52170-C0i200208-200512
W(SPEAKER),BLACK,TRIM1#
main64330-52170-E0i200208-200512
W(SPEAKER),FAWN,TRIM4#
main64330-52180-C0i200208-200512
BLACK,TRIM1#
main64330-52180-E0i200208-200512
FAWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-06020-B6i200212-200512
DK.GRAY,TRIM1#
sub90467-06020
main90467-06020-E5i200208-200512
FAWN,TRIM4#
sub90467-06020
main90467-06020-P0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub90467-06020
main90467-06020-P0i200208-200212
SHADOW GRAY,TRIM1#
sub90467-06020
64332COVER, PACKAGE TRAY TRIM
main64332-52010-B0i199908-200104
SHADOW GRAY,TRIM1#,9#
main64332-52050-B0i200104-200208
SHADOW GRAY,TRIM1#,9#
sub64332-52050
main64332-52050-B0i200208-200212
SHADOW GRAY,TRIM1#
sub64332-52050
main64332-52050-B1i200212-200511
DK.GRAY,TRIM1#
sub64332-52050
main64332-52050-E0i200208-200511
FAWN,TRIM4#
sub64332-52050
64334APAD, PACKAGE TRAY TRIM
main64334-52010i199908-200512
W(SPEAKER)
main64334-52020i199908-200512
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-52010-C0i200208-200212
W(FIXED TYPE REAR SEAT ),BLACK,TRIM4#
main64711-52010-C0i200212-200512
W(FIXED TYPE REAR SEAT ),BLACK,TRIM1#,4#
main64711-52010-C0i199908-200208
W(FIXED TYPE REAR SEAT ),BLACK,TRIM1#,9#
main64711-52020-C0i199908-199912
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
main64711-52021-C0i199912-200208
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
main64711-52030-C0i200208-200512
W(SPARE TIRE = GROUND TIRE),BLACK,TRIM1#,4#
main64711-52030-C0i199908-200208
W(SPARE TIRE = GROUND TIRE),BLACK,TRIM1#,9#
main64711-52030-C0i199908-200208
W(SPARE TIRE = GROUND TIRE),BLACK,TRIM9#
main64711-52030-C0i200208-200212
W(SPARE TIRE = GROUND TIRE),BLACK,TRIM4#
main64711-52040-C0i199908-199912
W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
main64711-52041-C0i200208-200512
W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,4#
main64711-52041-C0i199912-200208
W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
main64711-52041-C0i200208-200212
W(SPARE TIRE = GROUND TIRE & 6:4 SPRIT REAR SEAT),BLACK,TRIM4#
main64711-52070-C0i200208-200212
BLACK,TRIM4#
main64711-52070-C0i200212-200512
BLACK,TRIM1#,4#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64710-52010-C0i199908-200206
BLACK,TRIM1#,9#
sub64710-52011
main64710-52011-C0i200206-200208
BLACK,TRIM1#,9#
main64710-52011-C0i200208-200212
BLACK,TRIM4#
main64710-52011-C0i200208-200512
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-06155i199908-200601
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-08186-B4i200508-200601
DK.GRAY
sub90467-08186
main90467-08186-C0i199908-200208
BLACK,TRIM1#,9#
sub90467-08186
main90467-08186-C0i200208-200212
BLACK,TRIM4#
sub90467-08186
main90467-08186-C0i200208-200508
BLACK,TRIM1#,4#
sub90467-08186
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-52010-C0i199908-200206
BLACK,TRIM1#,9#
sub64722-52011
main64722-52011-C0i200206-200208
BLACK,TRIM1#,9#
main64722-52011-C0i200208-200212
BLACK,TRIM4#
main64722-52011-C0i200208-200512
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
main64770-52030i199908-200208
W(SPARE TIRE = 13 INCH GROND TIRE)
main64770-52040i199908-200208
W(SPARE TIRE = 14 INCH GROND TIRE)
main64771-52070i199908-200208
TEMPORARY USE = SPARE TIRE
64778BPROTECTOR, SPARE WHEEL
main64778-52020i199908-200208
9011908240
main90119-08240
9018305016
main90183-05016
9046706020B6
main90467-06020B6
9046706020E5
main90467-06020E5
9046707115C0
main90467-07115C0
9046708186C0
main90467-08186C0
9046709211
main90467-09211
9046710161
main90467-10161

28 parts on this diagram · 1 diagram in section
