INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

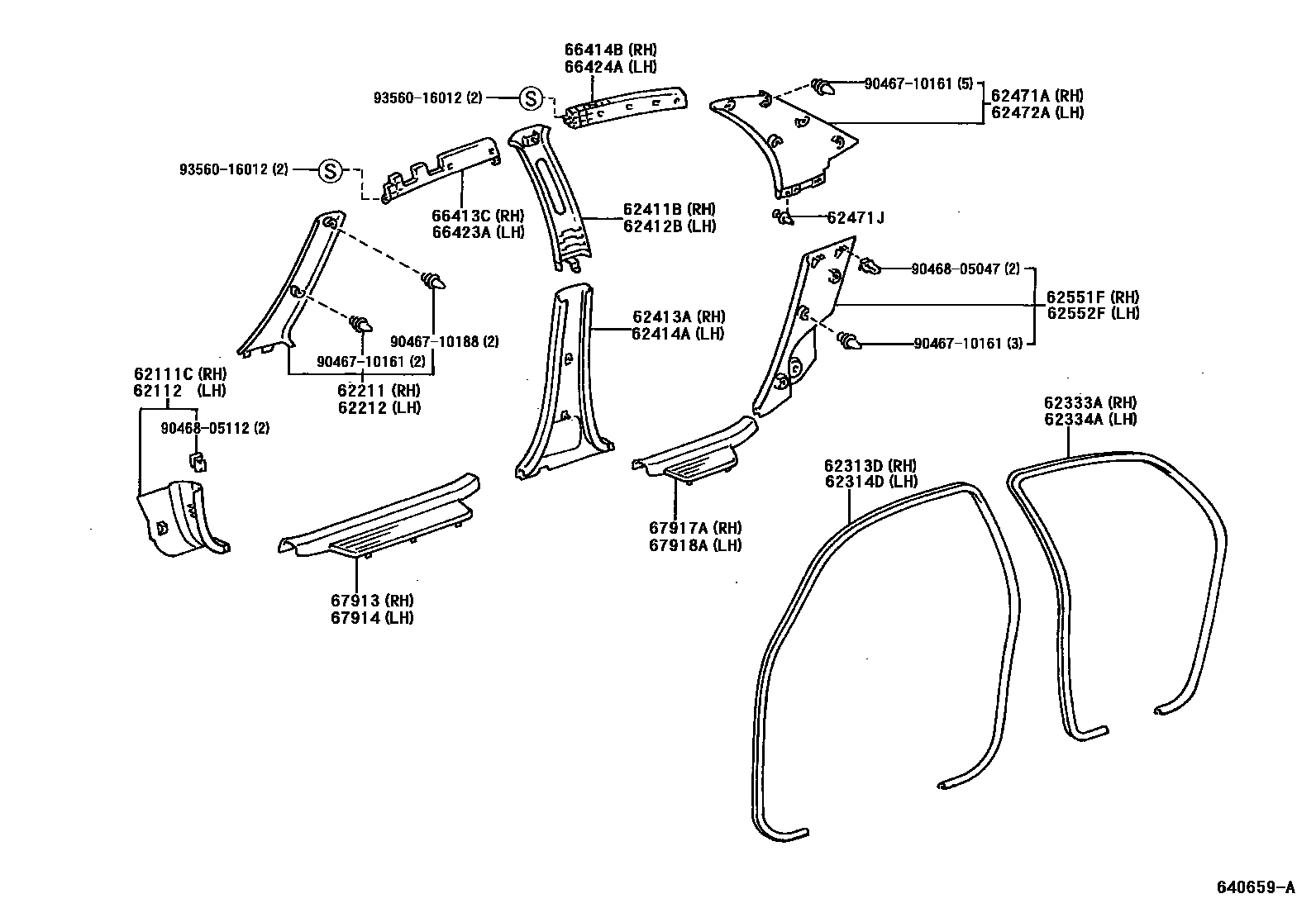

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-52020-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62111-52020
main62111-52020-B1i199908-200208
AMETHYST,TRIM9#
sub62111-52020
main62111-52020-B2i200212-200601
DK.GRAY,TRIM1#
sub62111-52020
main62111-52020-E1i200208-200601
SANDAL WOOD,TRIM4#
sub62111-52020
62112BOARD, COWL SIDE TRIM, LH
main62112-52030-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62112-52010
sub62112-52030
main62112-52030-B1i199908-200208
AMETHYST,TRIM9#
sub62112-52010
sub62112-52030
main62112-52030-B2i200212-200601
DK.GRAY,TRIM1#
sub62112-52010
sub62112-52030
main62112-52030-E0i200208-200601
SANDAL WOOD,TRIM4#
sub62112-52010
sub62112-52030
62211GARNISH, FRONT PILLAR, RH
main62211-52010-B0i199908-200208
LT. GRAY,TRIM1#
sub62211-52011
main62211-52010-B1i199908-200208
LT. GRAY,TRIM9#
sub62211-52011
main62211-52011-A0i200208-200601
IVORY,TRIM4#
sub62211-52011
sub62211-0D050
main62211-52011-B0i200208-200601
LT. GRAY,TRIM1#
sub62211-52011
sub62211-0D050
62212GARNISH, FRONT PILLAR, LH
main62212-52010-B0i199908-200208
LT. GRAY,TRIM1#
sub62212-52011
main62212-52010-B1i199908-200208
LT. GRAY,TRIM9#
sub62212-52011
main62212-52011-A0i200208-200601
IVORY,TRIM4#
sub62212-52011
sub62212-0D050
main62212-52011-B0i200208-200601
LT. GRAY,TRIM1#
sub62212-52011
sub62212-0D050
62313DTRIM, FRONT DOOR OPENING, RH
main62313-52020-B0i199908-200208
SHADOW GRAY,TRIM1#
sub62313-52020
main62313-52020-B1i199908-200208
AMETHYST,TRIM9#
sub62313-52020
main62313-52020-B2i200212-200601
DK.GRAY,TRIM1#
sub62313-52020
main62313-52020-E0i200212-200601
SANDAL WOOD,TRIM4#
sub62313-52020
62314DTRIM, FRONT DOOR OPENING, LH
main62314-52020-B0i199908-200208
SHADOW GRAY,TRIM1#
sub62314-52020
main62314-52020-B1i199908-200208
AMETHYST,TRIM9#
sub62314-52020
main62314-52020-B2i200212-200601
DK.GRAY,TRIM1#
sub62314-52020
main62314-52020-E0i200212-200601
SANDAL WOOD,TRIM4#
sub62314-52020
62333ATRIM, REAR DOOR OPENING, RH
main62333-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62333-52011
main62333-52010-B1i199908-200208
AMETHYST,TRIM9#
sub62333-52011
main62333-52010-B2i200212-200307
DK.GRAY,TRIM1#
sub62333-52011
main62333-52010-E0i200208-200307
SANDAL WOOD,TRIM4#
sub62333-52011
main62333-52011-B2i200307-200601
DK.GRAY,TRIM1#
sub62333-52011
main62333-52011-E0i200307-200601
SANDAL WOOD,TRIM4#
sub62333-52011
62334ATRIM, REAR DOOR OPENING, LH
main62334-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62334-52010
sub62334-52011
main62334-52010-B1i199908-200208
AMETHYST,TRIM9#
sub62334-52010
sub62334-52011
main62334-52010-B2i200212-200307
DK.GRAY,TRIM1#
sub62334-52010
sub62334-52011
main62334-52010-E0i200208-200307
SANDAL WOOD,TRIM4#
sub62334-52010
sub62334-52011
main62334-52011-B2i200307-200601
DK.GRAY,TRIM1#
sub62334-52011
main62334-52011-E0i200307-200601
SANDAL WOOD,TRIM4#
sub62334-52011
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-52010-B0i199908-200208
LT. GRAY,TRIM1#
sub62411-52011
main62411-52010-B1i199908-200208
LT. GRAY,TRIM9#
sub62411-52011
main62411-52011-A0i200208-200601
IVORY,TRIM4#
sub62411-52011
sub62411-0D050
main62411-52011-B0i200208-200601
LT. GRAY,TRIM1#
sub62411-52011
sub62411-0D050
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-52010-B0i199908-200208
LT. GRAY,TRIM1#
sub62412-52011
main62412-52010-B1i199908-200208
LT. GRAY,TRIM9#
sub62412-52011
main62412-52011-A0i200208-200601
IVORY,TRIM4#
sub62412-52011
sub62412-0D050
main62412-52011-B0i200208-200601
LT. GRAY,TRIM1#
sub62412-52011
sub62412-0D050
62413AGARNISH, CENTER PILLAR, LOWER RH
main62030-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62030-52010
main62030-52010-B1i199908-200208
AMETHYST,TRIM9#
sub62030-52010
main62030-52010-B2i200301-200601
DK.GRAY,TRIM1#
sub62030-52010
main62030-52010-E0i200208-200601
SANDAL WOOD,TRIM4#
sub62030-52010
62414AGARNISH, CENTER PILLAR, LOWER LH
main62040-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub62040-52010
main62040-52010-B1i199908-200208
AMETHYST,TRIM9#
sub62040-52010
main62040-52010-B2i200212-200601
DK.GRAY,TRIM1#
sub62040-52010
main62040-52010-E0i200208-200601
SANDAL WOOD,TRIM4#
sub62040-52010
62471AGARNISH, ROOF SIDE, INNER RH
main62470-52030-A0i200208-200601
IVORY,TRIM4#
main62470-52030-B0i199908-200601
LT. GRAY,TRIM1#
main62470-52030-B1i199908-200208
LT. GRAY,TRIM9#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-06133-B0i200208-200212
SHADOW GRAY,TRIM19,40
sub90467-06133
main90467-06133-B0i199908-200208
SHADOW GRAY,TRIM1#,9#
sub90467-06133
main90467-06133-B0i200208-200601
SHADOW GRAY,TRIM40
sub90467-06133
main90467-06133-C0i200208-200601
BLACK,TRIM40
sub90467-06133
main90467-06133-C0i200208-200212
BLACK,TRIM19,40
sub90467-06133
62472AGARNISH, ROOF SIDE, INNER LH
main62480-52030-A0i200208-200601
IVORY,TRIM4#
main62480-52030-B0i199908-200601
LT. GRAY,TRIM1#
main62480-52030-B1i199908-200208
LT. GRAY,TRIM9#
62551FGARNISH, REAR SEAT SIDE, RH
main62551-52040-B0i199908-200208
AMETHYST,TRIM9#
sub62551-52040
main62551-52040-B1i199908-200212
SHADOW GRAY,TRIM1#
sub62551-52040
main62551-52040-B2i200212-200512
DK.GRAY,TRIM1#
sub62551-52040
main62551-52040-E0i200208-200512
SANDAL WOOD,TRIM4#
sub62551-52040
62552FGARNISH, REAR SEAT SIDE, LH
main62552-52010-B1i199908-200208
AMETHYST,TRIM9#
sub62552-52010
main62552-52010-B2i199908-200212
SHADOW GRAY,TRIM1#
sub62552-52010
main62552-52010-B3i200212-200512
DK.GRAY,TRIM1#
sub62552-52010
main62552-52010-E0i200208-200512
SANDAL WOOD,TRIM4#
sub62552-52010
66413CSPACER, SIDE RAIL, FRONT RH
main66413-52010i199908-200105
sub66413-52011
main66413-52011i200105-200601
66414BSPACER, SIDE RAIL, REAR RH
main66414-52080i199908-200105
sub66414-52081
main66414-52081i200105-200601
66423ASPACER, SIDE RAIL, FRONT LH
main66423-52010i199908-200105
sub66423-52011
main66423-52011i200105-200601
66424ASPACER, SIDE RAIL, REAR LH
main66424-52080i199908-200105
sub66424-52081
main66424-52081i200105-200601
67913PLATE, FRONT DOOR SCUFF, RH
main67913-52020-B0i199908-200212
SHADOW GRAY,TRIM1#
sub67913-52020
main67913-52020-B1i199908-200208
AMETHYST,TRIM9#
sub67913-52020
main67913-52020-B2i200212-200601
DK.GRAY,TRIM1#
sub67913-52020
main67913-52020-E1i200208-200601
SANDAL WOOD,TRIM4#
sub67913-52020
67914PLATE, FRONT DOOR SCUFF, LH
main67914-52020-B0i199908-200212
SHADOW GRAY,TRIM1#
sub67914-52020
main67914-52020-B1i199908-200208
AMETHYST,TRIM9#
sub67914-52020
main67914-52020-B2i200212-200601
DK.GRAY,TRIM1#
sub67914-52020
main67914-52020-E1i200208-200601
SANDAL WOOD,TRIM4#
sub67914-52020
67917APLATE, REAR DOOR SCUFF, RH
main67917-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub67917-52010
main67917-52010-B1i199908-200208
AMETHYST,TRIM9#
sub67917-52010
main67917-52010-B2i200212-200601
DK.GRAY,TRIM1#
sub67917-52010
main67917-52010-E1i200208-200601
SANDAL WOOD,TRIM4#
sub67917-52010
67918APLATE, REAR DOOR SCUFF, LH
main67918-52010-B0i199908-200212
SHADOW GRAY,TRIM1#
sub67918-52010
main67918-52010-B1i199908-200208
AMETHYST,TRIM9#
sub67918-52010
main67918-52010-B2i200212-200601
DK.GRAY,TRIM1#
sub67918-52010
main67918-52010-E1i200208-200601
SANDAL WOOD,TRIM4#
sub67918-52010
9046710161
main90467-10161
9046710188
main90467-10188
9046805047
main90468-05047
9046805112
main90468-05112
9356016012
main93560-16012

30 parts on this diagram · 1 diagram in section
