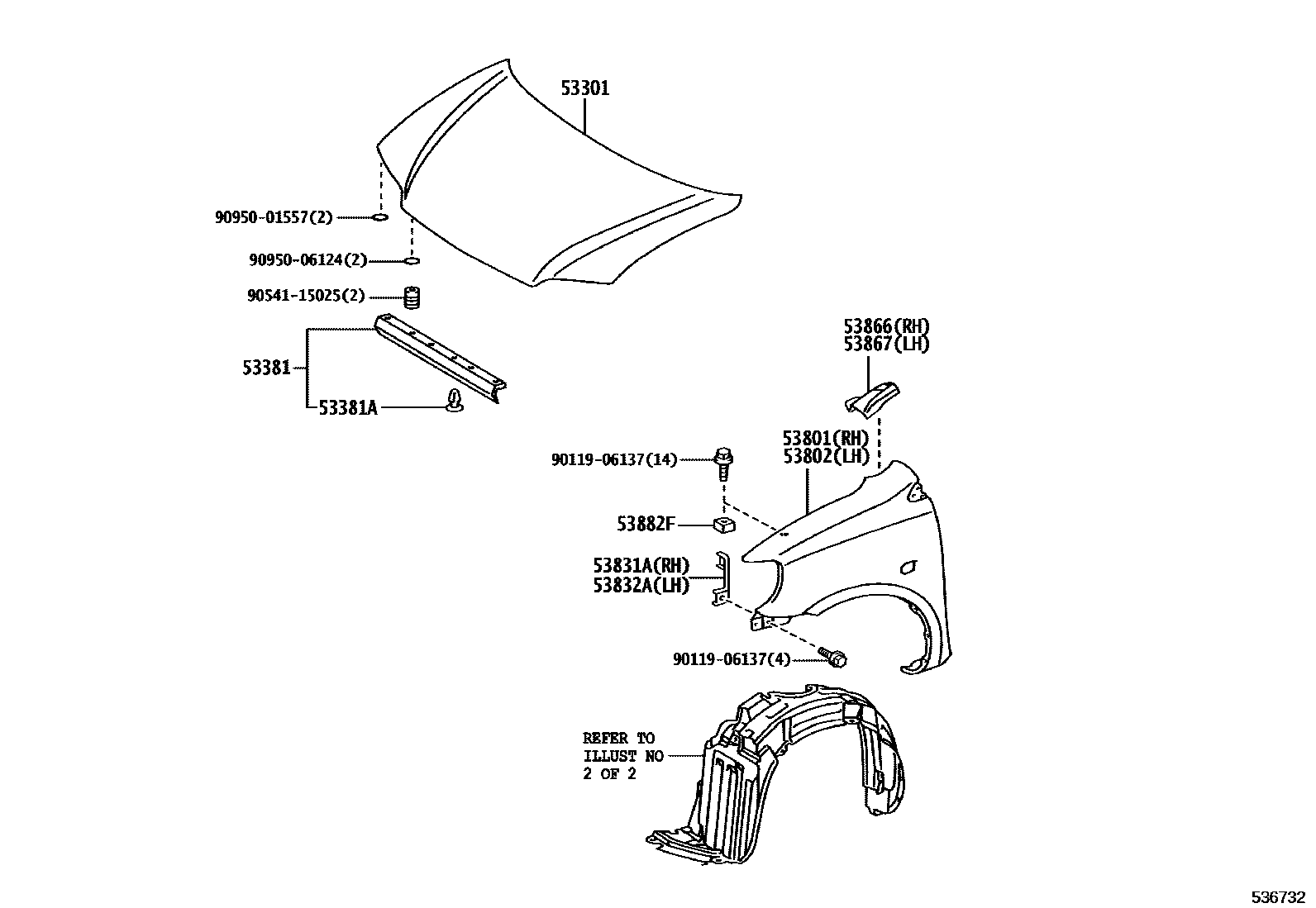

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52060iNCP1#199908-200208

main53301-52140iNCP1#200208-200601

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP1#199908-200208

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6iNCP1#199908-200208

53801FENDER SUB-ASSY, FRONT RH

main53811-52050iNCP1#..GCC,GEN199908-200208

main53811-52060iNCP12..ARL199908-200208

main53811-52070iNCP1#..GCC,GEN200010-200208

W(ARCH MOULDING)

main53811-52150iNCP1#..GCC,GEN200208-200601

main53811-52160iNCP12..ARL200208-200601

main53811-52170iNCP1#..GCC,GEN200208-200601

W(ARCH MOULDING)

main53811-52180iNCP12..ARL200208-200601

W(ARCH MOULDING)

53802FENDER SUB-ASSY, FRONT LH

main53812-52040iNCP1#..GCC,GEN199908-200208

main53812-52050iNCP12..ARL199908-200208

main53812-52070iNCP11..GCC200005-200010

W(ARCH MOULDING)

main53812-52150iNCP1#..GCC,GEN200208-200601

main53812-52160iNCP12..ARL200208-200601

main53812-52170iNCP1#..GCC,GEN200208-200601

W(ARCH MOULDING)

main53812-52180iNCP12..ARL200208-200601

W(ARCH MOULDING)

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-52010iNCP1#199908-200208

main53831-52040iNCP1#200208-200512

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-52010iNCP1#199908-200208

main53832-52040iNCP1#200208-200512

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52010iNCP1#199908-200208

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52010iNCP1#199908-200208

53882FSEAL, FRONT FENDER

main53882-16030×16iNCP1#199908-200010

9011906137

main90119-06137

9054115025

main90541-15025

9095001557

main90950-01557

9095006124

main90950-06124

14 parts on this diagram · 2 diagrams in section
