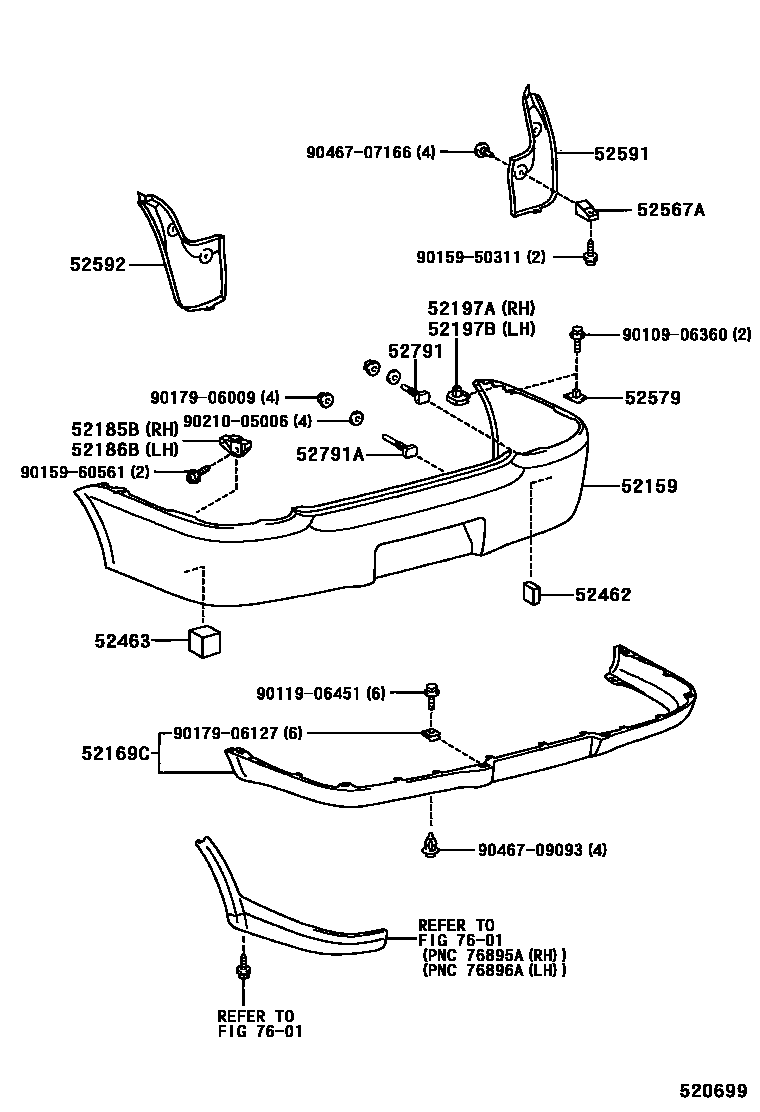

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-52090iNCP1#199908-200208

sub52159-52975

main52159-52200iNCP11..GCC200005-200208

W(BUMPER SPOILER)

sub52159-52976

main52159-52340iNCP1#200208-200601

main52159-52380iNCP1#200208-200601

W(BUMPER SPOILER)

main52159-52901iNCP1#..GEN200010-200207

W(BUMPER SPOILER)

sub52159-52200

52169CCOVER, REAR BUMPER, LOWER

main52169-52010iNCP1#199908-200208

sub52169-52904

main52169-52030iNCP1#..GCC,GEN200005-200208

W(BUMPER SPOILER)

sub52169-52905

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-52020iNCP1#199908-200208

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-52020iNCP1#199908-200208

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-52010iNCP1#199908-200208

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-52010iNCP1#199908-200208

52462PAD, REAR BUMPER, RH

main52462-52010iNCP1#199908-200208

52463PAD, REAR BUMPER, LH

main52463-52010iNCP1#199908-200208

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52567-52010iNCP1#199908-200208

main52567-52020iNCP1#200208

52579RETAINER, REAR BUMPER SIDE, NO.3

main52579-52010iNCP1#199908-200208

52591SEAL, REAR BUMPER SIDE, RH

main52591-52040iNCP1#199908-200208

main52591-52100iNCP1#200208-200601

52592SEAL, REAR BUMPER SIDE, LH

main52592-52040iNCP1#199908-200208

main52592-52090iNCP1#200208-200601

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010iNCP1#199908-199909

sub90109-06354

main52791-12040iNCP1#200208

main90109-06354iNCP1#199909-200208

52791ABOLT, BUMPER MOULDING SET, NO.2

main52791-12040iNCP1#200201-200208

main52791-32010iNCP1#199908-200201

7601

9010906360

main90109-06360

9011906451

main90119-06451

9015950311

main90159-50311

9015960561

main90159-60561

9017906009

main90179-06009

9017906127

main90179-06127

9021005006

main90210-05006

9046707166

main90467-07166

9046709093

main90467-09093

24 parts on this diagram · 2 diagrams in section
