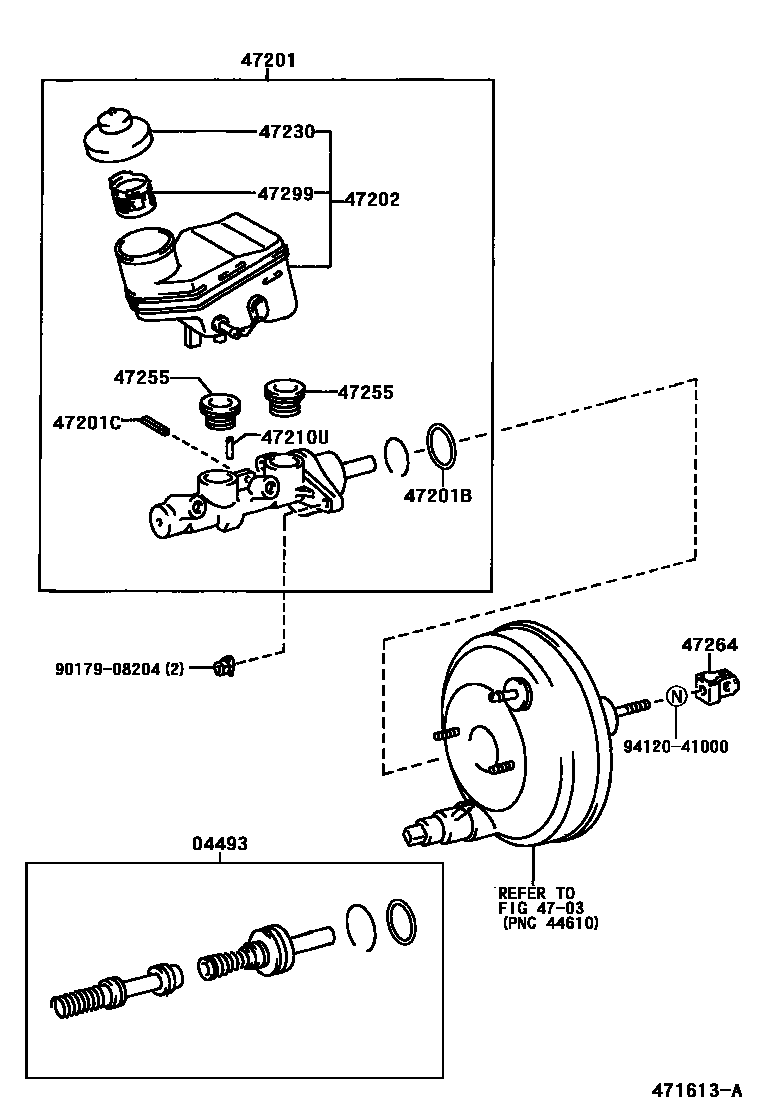

BRAKE MASTER CYLINDER

0001 1EXHAUST EMISSION CONTROL & W(0003 1EXHAUST EMISSION CONTROL & W/0005 1 0006 1 0007 1

04493CYLINDER KIT, BRAKE MASTER

main04493-52020iNCP1#..RHD199908-200008

W(ABS)

main04493-52030iNCP1#..RHD200208

W/O(ABS)

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52031iNCP1#..RHD..MTM200411

W(ABS)

sub47201-52032

main47201-52041iNCP1#..RHD..ATM200411

W(ABS)

sub47201-52042

main47201-52051iNCP1#..RHD..MTM200208-200410

W/O(ABS)

main47201-52061iNCP11..RHD..ATM200008-200109

W/O(ABS)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-EH001iNCP1#..LHD200309

main90029-20059iNCP1#..RHD199908-200008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP11..RHD200008-200109

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52030iNCP1#..LHD..MTM200208

main47220-52040iNCP1#..LHD..ATM200208

main47220-52050iNCP1#..RHD..MTM200208

main47220-52060iNCP11..RHD..ATM200008-200109

EXHAUST EMISSION CONTROL

main47220-52070iNCP1#..RHD..MTM200008-200208

main47220-52080iNCP1#..RHD..ATM200008-200208

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNCP1#..RHD199908-200008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iNCP1#..RHD199908-200008

main47230-52030iNCP1#200101-200208

sub47230-33071

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010×2iNCP1#..RHD199908-200008

main47255-52010×2iNCP1#200008-200101

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52010iNCP11..RHD200008-200109

EXHAUST EMISSION CONTROL

main47264-52020iNCP1#200101-200208

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNCP11..RHD200008-200109

EXHAUST EMISSION CONTROL

main47299-52010iNCP1#..LHD200208

9017908204

main90179-08204

9412041000

main94120-41000

13 parts on this diagram · 5 diagrams in section
