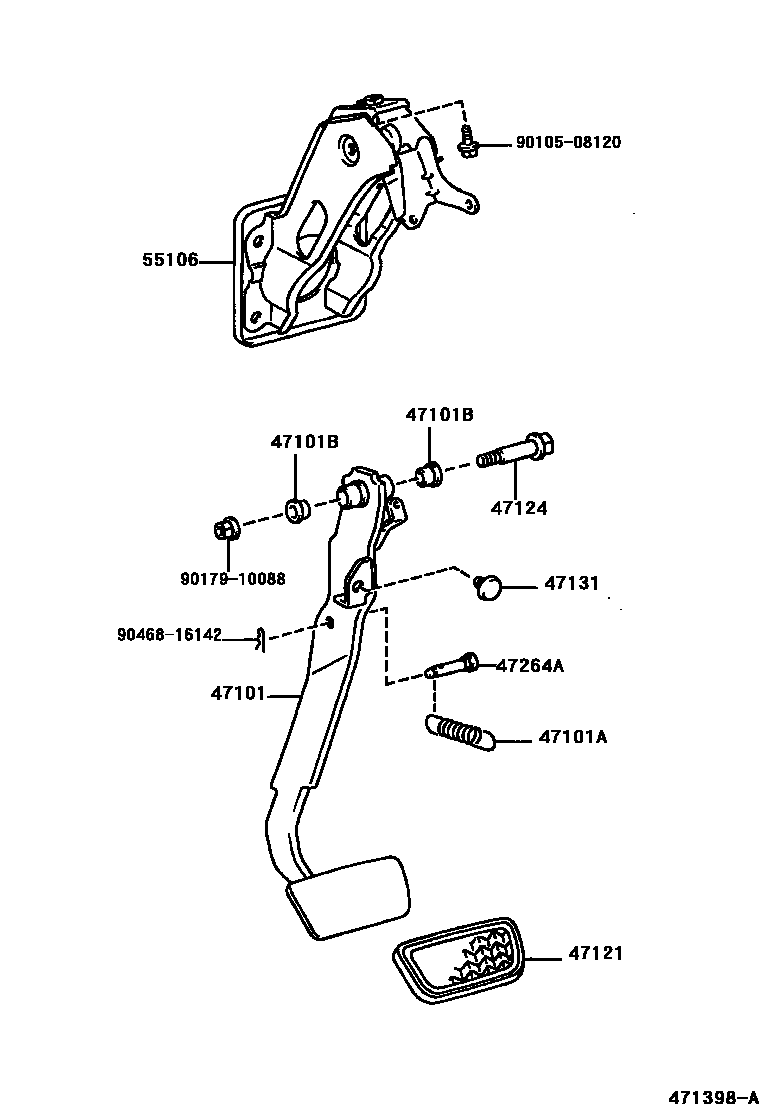

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52010iNCP1#..RHD..MTM199908-200212

sub47101-52050

main47101-52020iNCP1#..RHD..ATM199908-200212

sub47101-52060

main47101-52031iNCP1#..LHD..MTM199908-200208

main47101-52040iNCP1#..LHD..ATM199908-200208

main47101-52100iNCP1#..RHD..MTM200212

main47101-52110iNCP1#..RHD..ATM200212

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP1#199908-200208

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCP1#199908-200208

47121PAD, BRAKE PEDAL

main31321-52010iNCP1#..MTM199908-200208

main47121-52010iNCP1#..ATM199908-200208

47124SHAFT, BRAKE PEDAL

main90109-10167iNCP1#199908-200208

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iNCP1#199908-200208

47264APIN(FOR PUSH ROD)

main90249-08295iNCP1#..LHD199908-200208

main90249-08297iNCP1#..RHD199908-200208

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52011iNCP1#..RHD199908-200001

sub55106-52012

main55106-52012iNCP1#..RHD200001-200212

main55106-52020iNCP1#..LHD199908-200412

sub55106-52021

main55106-52021iNCP1#..LHD200412-200512

main55106-52090iNCP1#..RHD200212-200512

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

11 parts on this diagram · 1 diagram in section
