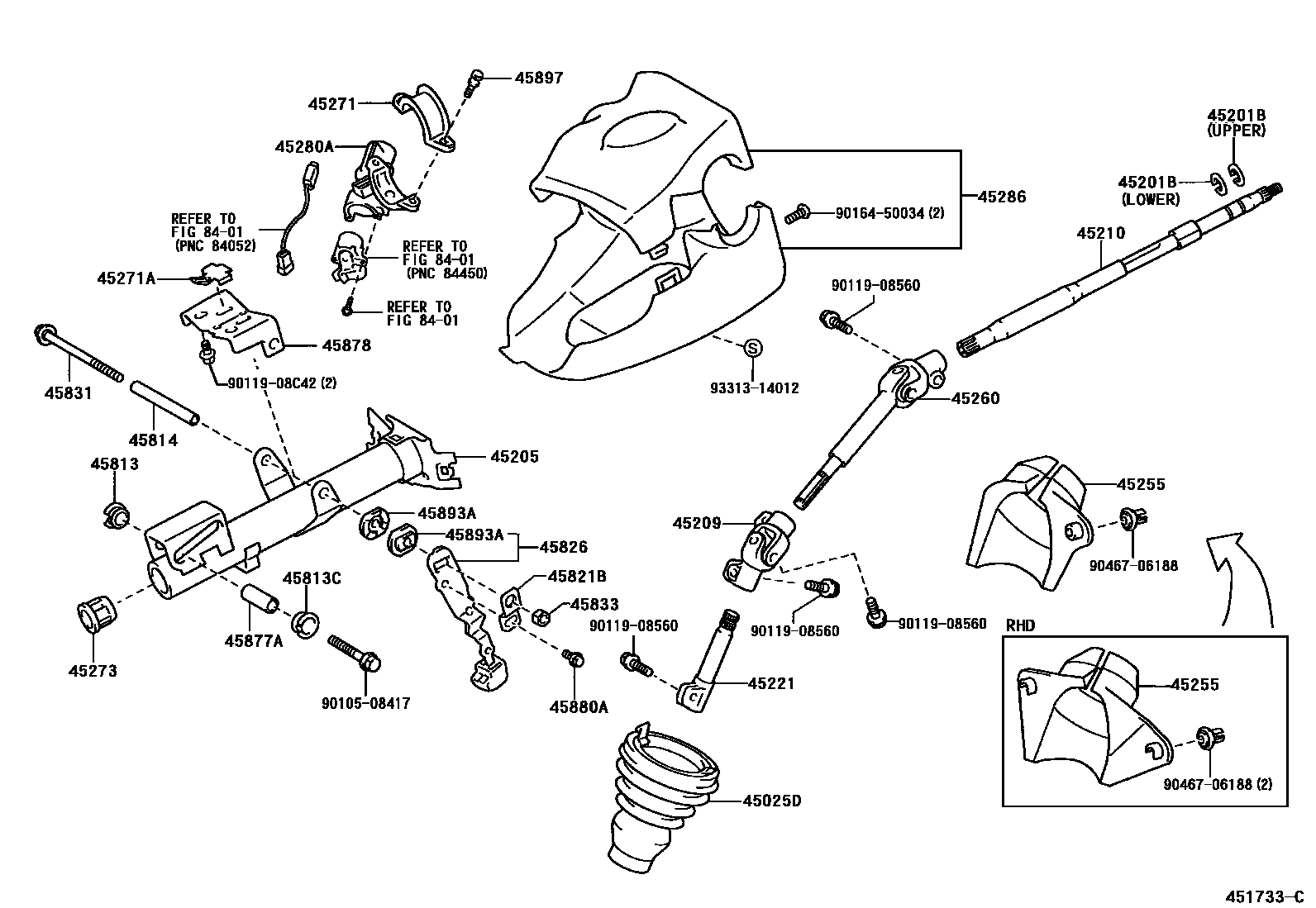

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
W(POWER STEERING)
W(MANUAL STEERING)
W(POWER STEERING)
W(MANUAL STEERING)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
W(POWER STEERING)
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45271ACLAMP, STEERING COLUMN, UPPER NO.2
45273BUSH, STEERING MAIN SHAFT
45286COVER, STEERING COLUMN
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=24
45813CCOLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
OD=8
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45880ABOLT(FOR STEERING TILT LEVER)
45893ASTOPPER, TILT STEERING PAWL
45897BOLT, STEERING LOCK SET
8401
9010508417
main90105-08417
9011908560
main90119-08560
9011908C42
main90119-08C42
9016450034
main90164-50034
9046706188
main90467-06188
9331314012
main93313-14012
32 parts on this diagram · 2 diagrams in section
