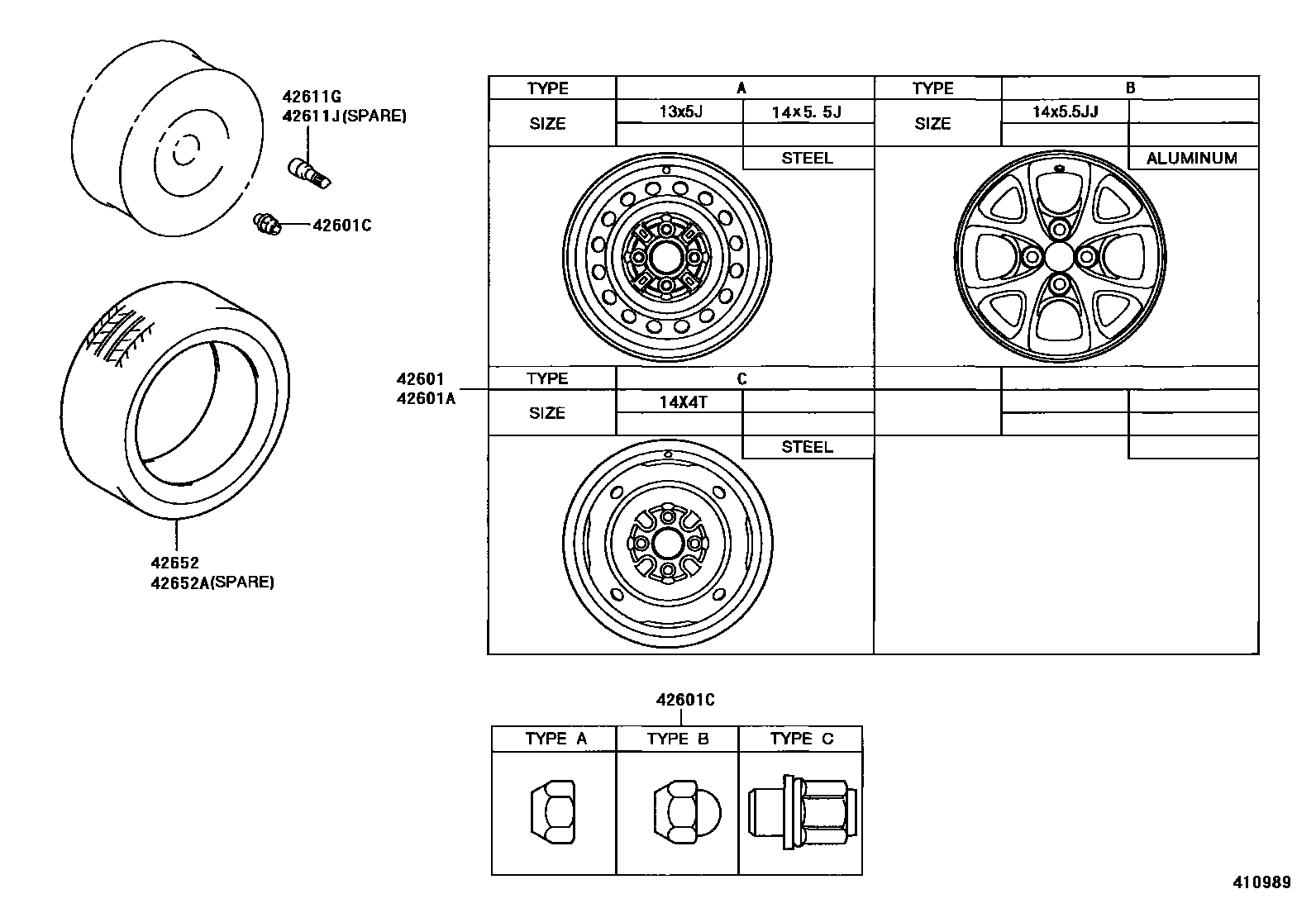

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52010×4iNCP1#199908-200208

13X5J,SILVER,TYPE A:REFER TO ILLUSTRATION

sub42611-52011

main42611-52020×4iNCP1#199908-200208

13X5JJ,BLACK, #,TYPE A:REFER TO ILLUSTRATION

sub42611-52021

main42611-52030×4iNCP1#200208-200601

14X5.5J, #,TYPE A:REFER ILLUST.

main42611-52040×4iNCP1#..ARL,GEN199908-200208

14X5.5JJ,OFFSET 45,#,TYPE B:REFER TO ILLUSTRATION

sub42611-52590

42601AWHEEL, DISC (FOR SPARE)

main42611-16310iNCP1#..GEN199908-200208

14X4T,OFFSET 45,TYPE C:REFER TO ILLUSTRATION

sub42611-1A330

main42611-52010iNCP1#..ARL,GEN200208-200601

13X5J,SILVER,TYPE A:REFER ILLUST.

sub42611-52011

main42611-52020iNCP1#..ARL,GEN200208-200601

13X5JJ,BLACK, #,TYPE A:REFER ILLUST.

sub42611-52021

main42611-52030iNCP1#199911-200208

14X5.5J, #,TYPE A:REFER TO ILLUSTRATION

main42611-52040iNCP1#..ARL,GEN200208-200601

14X5.5JJ,OFFSET 45,#,TYPE B:REFER ILLUST.

sub42611-52590

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iNCP1#200208

TYPE A:REFER TO ILLUSTRATION

main90942-01021×16iNCP1#199908-200208

TYPE B:REFER TO ILLUSTRATION

main90942-01033×16iNCP1#..ARL,GEN199908-200208

TYPE C:REFER TO ILLUSTRATION

main90942-01082×16iNCP1#200308

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNCP1#199908-200208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP1#199908-200208

42652TIRE

main42652-12680×4iNCP11..GCC200208-200601

155SR13

main42652-52030×4iNCP1#..LHD..GEN199908-200208

155/80R13 79T

main42652-52031×4iNCP1#..LHD..GEN200402-200512

155/80R13 79T

main42652-52040×4iNCP1#..LHD199911-200208

155/80R13 82T

main42652-52041×4iNCP1#..LHD200402-200601

175/65R14 82T

main42652-52050×4iNCP1#..RHD199908-200208

155/80R13

main42652-52051×4iNCP1#..RHD200402-200601

155/80R13

main42652-52060×4iNCP1#..RHD200208-200401

175/65R14

main42652-52061×4iNCP1#..RHD200402-200601

175/65R14

main42652-52780×4iNCP11..GCC200510-200601

155/80R13 *T/Y

main42652-52830×4iNCP1#..LHD200510-200601

175/65R14 *B/S

main42652-52840×4iNCP1#..LHD200510-200601

175/65R14 *D/L

42652ATIRE (FOR SPARE)

main42652-12680iNCP11..GCC200208-200601

155SR13

main42652-16220iNCP1#..GEN200208-200512

T115/70D14

main42652-52030iNCP1#..LHD..GEN199908-200208

155/80R13 79T

main42652-52031iNCP1#..LHD..GEN200402-200512

155/80R13 79T

main42652-52040iNCP1#..LHD..GEN199908-199911

155/80R13 82T

main42652-52041iNCP1#..LHD200402-200601

175/65R14 82T

main42652-52050iNCP1#..RHD199908-200208

155/80R13

main42652-52051iNCP1#..RHD200402-200601

155/80R13

main42652-52060iNCP1#..RHD200208-200401

175/65R14

main42652-52061iNCP1#..RHD200402-200601

175/65R14

main42652-52780iNCP11..GCC200510-200601

155/80R13 *T/Y

main42652-52830iNCP1#..LHD200510-200601

175/65R14 *B/S

main42652-52840iNCP1#..LHD200510-200601

175/65R14 *D/L

main42652-52880iNCP1#..GEN200510-200512

T115/70D14 *D/L

main42652-52890iNCP1#..GEN200510-200512

T115/70D14 *T/Y

main42652-52A00iNCP1#..GEN200510-200512

T115/70D14 *Y/H

7 parts on this diagram · 3 diagrams in section
