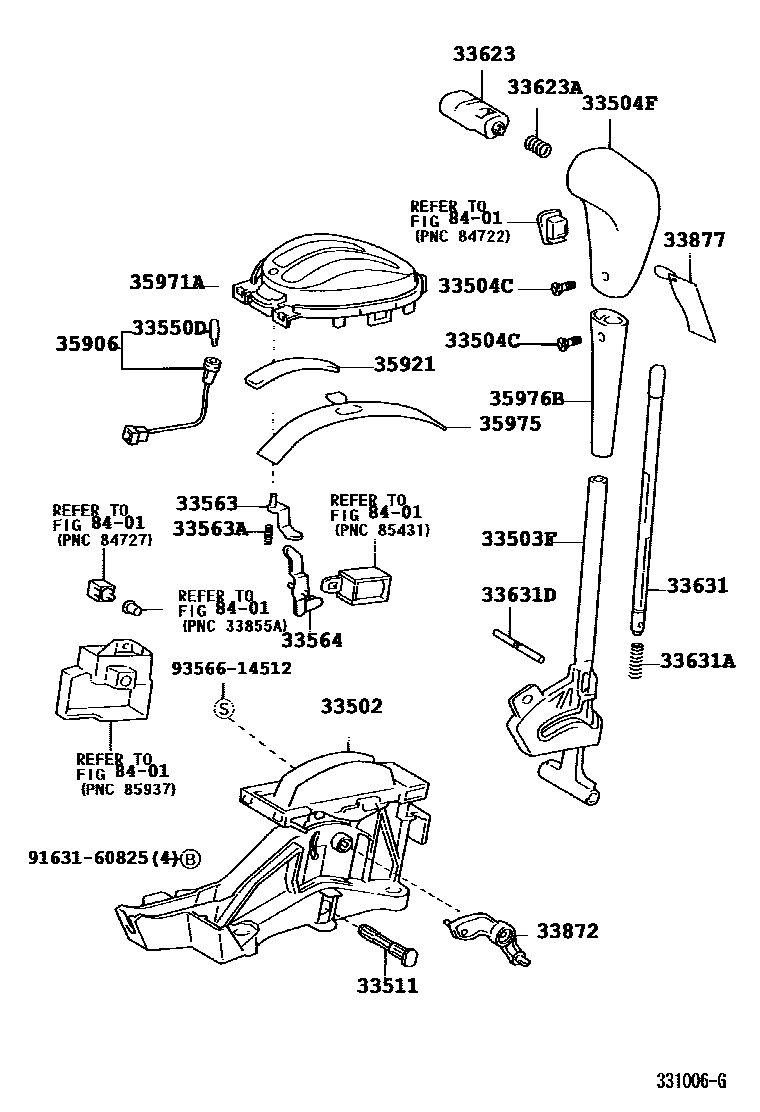

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
MD.CHARCOAL,TRIM9#
BLUE GRAY,TRIM1#
DK.GRAY,TRIM1#
BLUE GRAY,TRIM1#
SANDAL WOOD,TRIM4#
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33623BUTTON, SHIFT LEVER KNOB
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
W(KNOB=CHROME PLATED),DK.GRAY,TRIM1#
W(KNOB=CHROME PLATED),BLUE GRAY,TRIM1#
W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM4#
W(KNOB=CHROME PLATED),DK.GRAY,TRIM1#
W(KNOB=CHROME PLATED),BLUE GRAY,TRIM1#
W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM4#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33872LINK, SHIFT LOCK RELEASE, NO.2
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
BLUE GRAY,TRIM1#
MD.CHARCOAL,TRIM9#
DK.GRAY,TRIM1#
SANDAL WOOD,TRIM4#
8401
9163160825
main91631-60825
9356614512
main93566-14512
24 parts on this diagram · 4 diagrams in section
