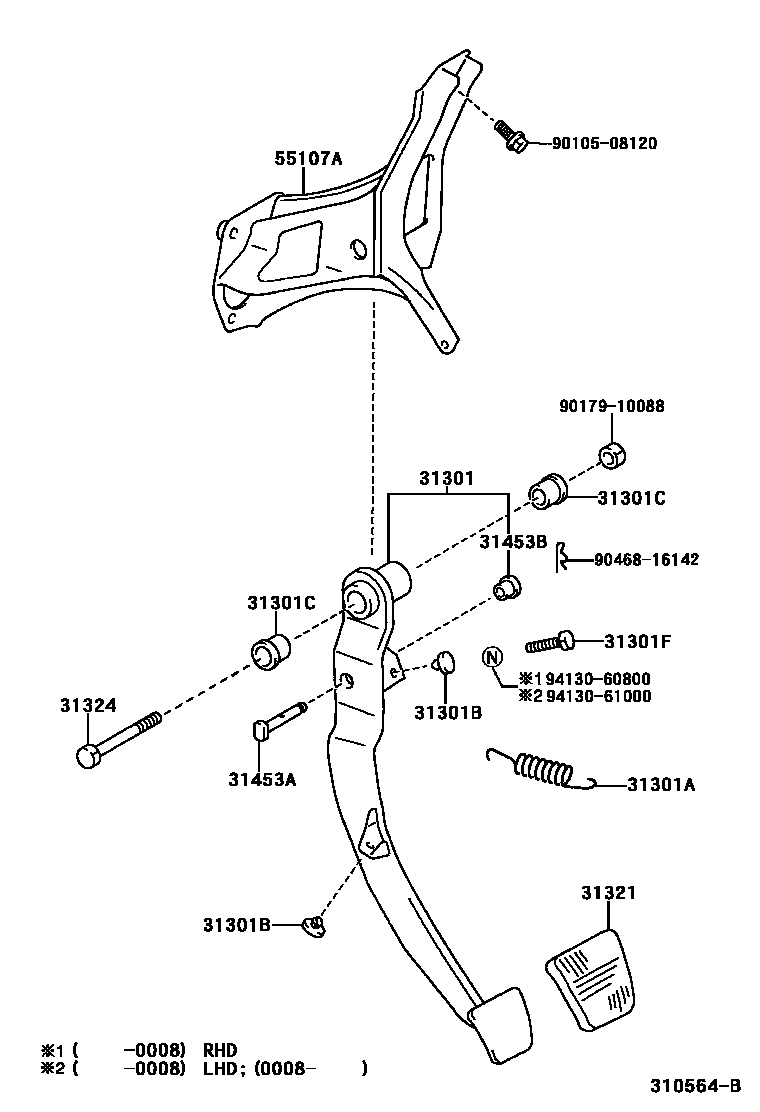

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52010iNCP1#..RHD..MTM199908-200208

sub31301-52030

main31301-52020iNCP1#..LHD..MTM199908-200208

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNCP1#..MTM199908-200208

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP1#..LHD..MTM199908-200208

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP1#..MTM199908-200208

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iNCP1#..RHD..MTM199908-200008

main90101-10369iNCP1#..LHD..MTM199908-200208

31321PAD, CLUTCH PEDAL

main31321-52010iNCP1#..MTM199908-200208

31324SHAFT, CLUTCH PEDAL

main90109-10167iNCP1#..MTM199908-200208

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iNCP1#..RHD..MTM199908-200208

L=30

main90249-08294iNCP1#..LHD..MTM199908-200208

L=48.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iNCP1#..MTM199908-200208

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52010iNCP1#..RHD..MTM199908-200008

sub55107-52011

main55107-52011iNCP1#..RHD..MTM200008-200512

sub55107-52050

main55107-52021iNCP1#..LHD..MTM199908-200208

sub55107-52040

main55107-52040iNCP1#..LHD..MTM200208-200512

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

9413060800

main94130-60800

9413061000

main94130-61000

15 parts on this diagram · 3 diagrams in section
