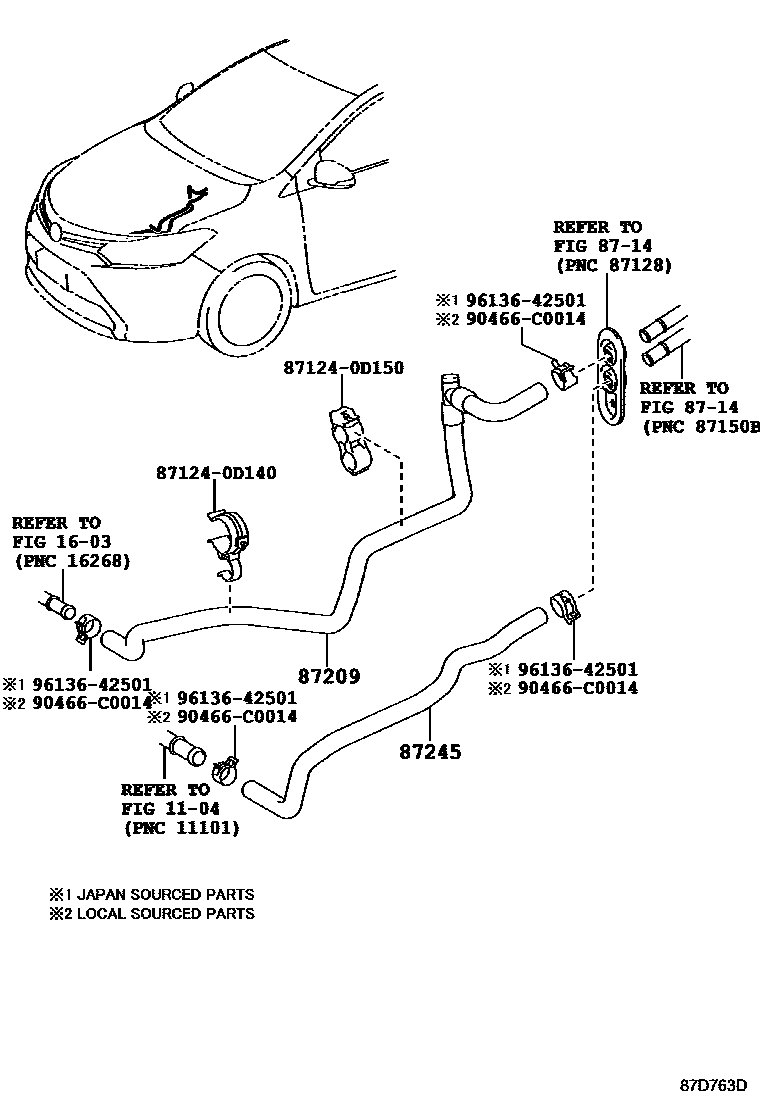

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0006 1 0007 1

1104

1603

8714

87209HOSE SUB-ASSY, WATER

main87209-0D240iNSP15#201311-201609

main87209-0D280iNSP150..5F201609-202004

main87209-0D300iNSP150..CVT201609-202004

main87209-0D810iNSP151..CVT201811-202008

main87209-0D820iNSP151..5F201811-202008

87245HOSE, HEATER WATER, INLET

main87209-0D290iNSP151..CVT201609-201811

main87245-0D480iNSP15#201311-201609

main87245-0D640iNSP150..5F201609-202004

main87245-0D800iNSP151..CVT201811-202008

main87245-0D810iNSP151..5F201811-202008

871240D140CLAMP, HEATER

main87124-0D140

871240D150CLAMP, HEATER

main87124-0D150

90466C0014

main90466-C0014

9613642501

main96136-42501

9 parts on this diagram · 5 diagrams in section
