HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1HEATER CONTROL 0003 1AIR DUCT 0004 1SENSOR

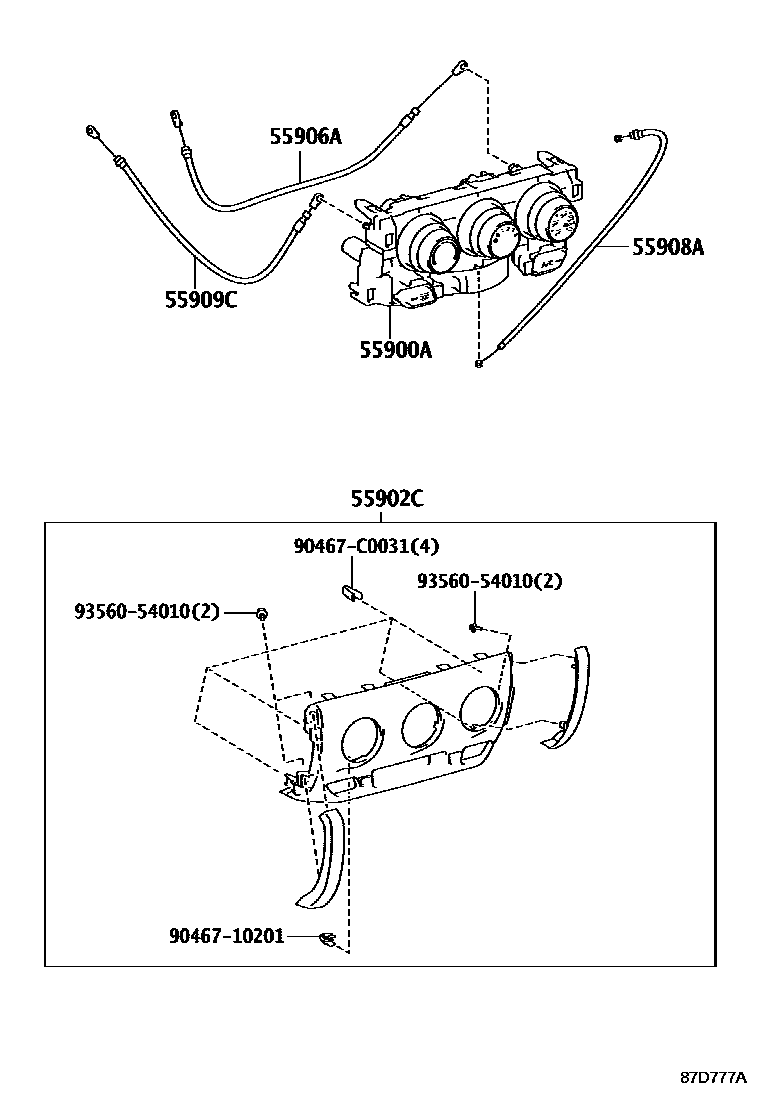

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-0D890iNSP150201609-202004

main55900-0D390supersedes 55900-0D380iNSP15#201311-201609

COLD AREA SPEC

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-0D230iNSP15#201311-201609

main55902-0D410iNSP150201609-202004

main55902-0D690iNSP151202008

main55902-0D400iNSP151..G,N201410-201510

TWO-TONE PACKAGE

main55902-0D700iNSP151..CVT..R201912-202008

2019/11 PACKAGE(WHITE INTERIOR PANEL)

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D110iNSP151201609-202008

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D130iNSP15#201311-201609

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D100iNSP15#201311-201609

9046710201

main90467-10201

90467C0031

main90467-C0031

9356054010

main93560-54010

8 parts on this diagram · 4 diagrams in section
