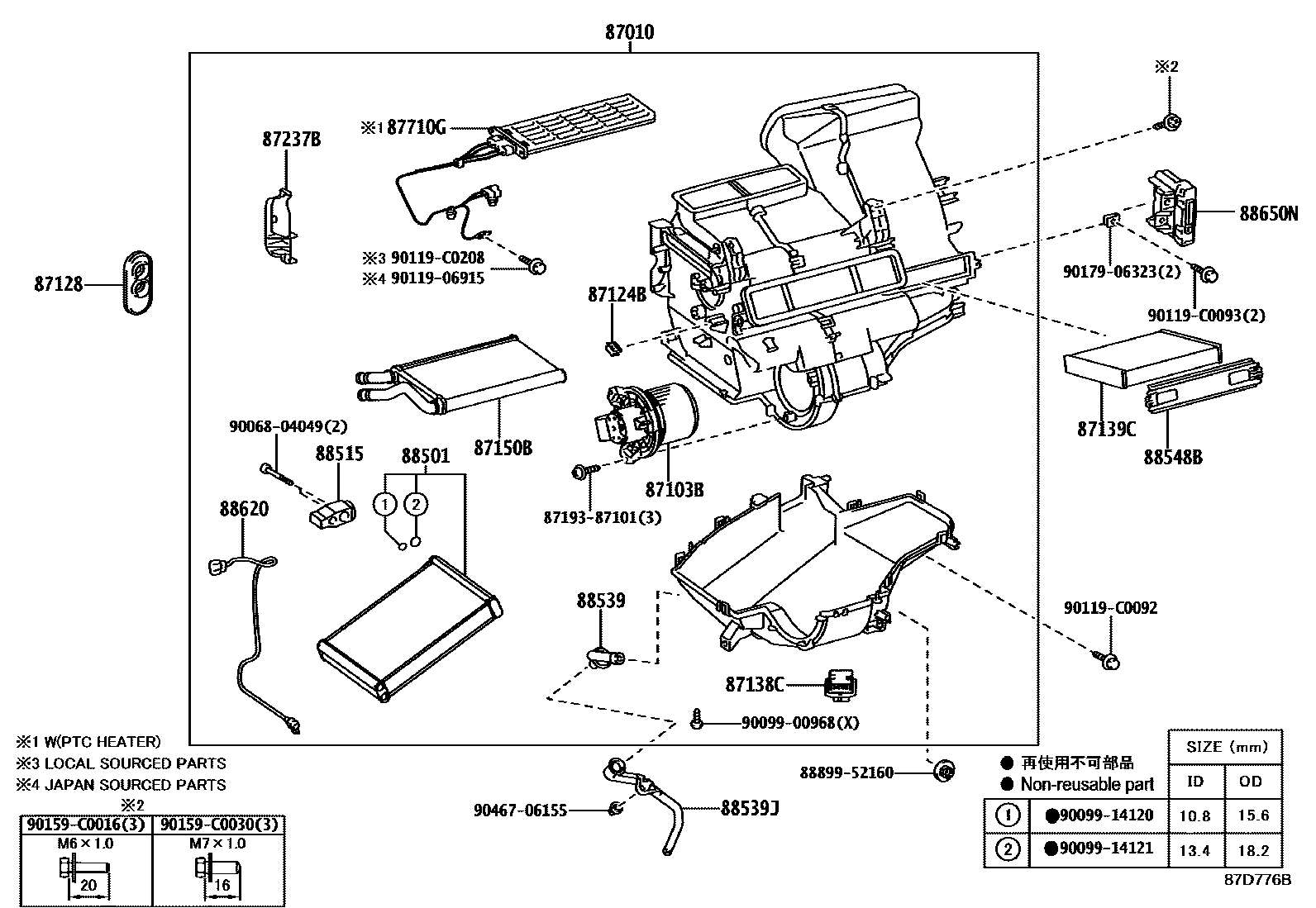

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87010UNIT ASSY, AIR CONDITIONER

main87010-0D750iNSP15#201311-201609

main87010-0DG20iNSP151201609-202008

main87010-0DG21iNSP151202008

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D270iNSP151201311-202008

main87103-0D271iNSP151202008

87124BCLAMP, HEATER

main87124-0D130iNSP15#201311-202008

87128GROMMET, HEATER

main87128-0D080iNSP151201311-202008

87138CRESISTOR, BLOWER

main87138-0D140iNSP150201311-202008

87139CFILTER, CLEAN AIR

main87139-0D030iNSP151201609-202008

STANDARD,OE PART

main87139-0D030iNSP15#201311-201609

main87139-50100iNSP151201609-202008

POLLEN DEODORANT

87150BRADIATOR ASSY, HEATER

main87150-0D120iNSP151201311-202008

87237BCOVER, HEATER PIPING

main87237-0D030iNSP150201311-202008

87710GQUICK HEATER ASSY

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D231iNSP15#201311-201609

main88501-0D450iNSP150201609-202008

88515VALVE, COOLER EXPANSION

main88515-0D200iNSP15#201311-201609

main88515-0D430iNSP15#201609-202001

main88515-0D670iNSP150202002-202008

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D270iNSP15#201311-202008

88539JHOSE, DRAIN COOLER

main88539-0D280iNSP15#201311-202008

88548BCASE, AIR FILTER

main88548-0D150iNSP15#201311-202008

88620THERMOSTAT SUB-ASSY

main88620-0D040iNSP15#201311-202008

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D420iNSP15#201311-201609

main88650-0D640iNSP150201609-202008

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

9006804049

main90068-04049

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9011906915

main90119-06915

90119C0092

main90119-C0092

90119C0093

main90119-C0093

90119C0208

main90119-C0208

90159C0016

main90159-C0016

90159C0030

main90159-C0030

9017906323

main90179-06323

9046706155

main90467-06155

30 parts on this diagram · 2 diagrams in section
