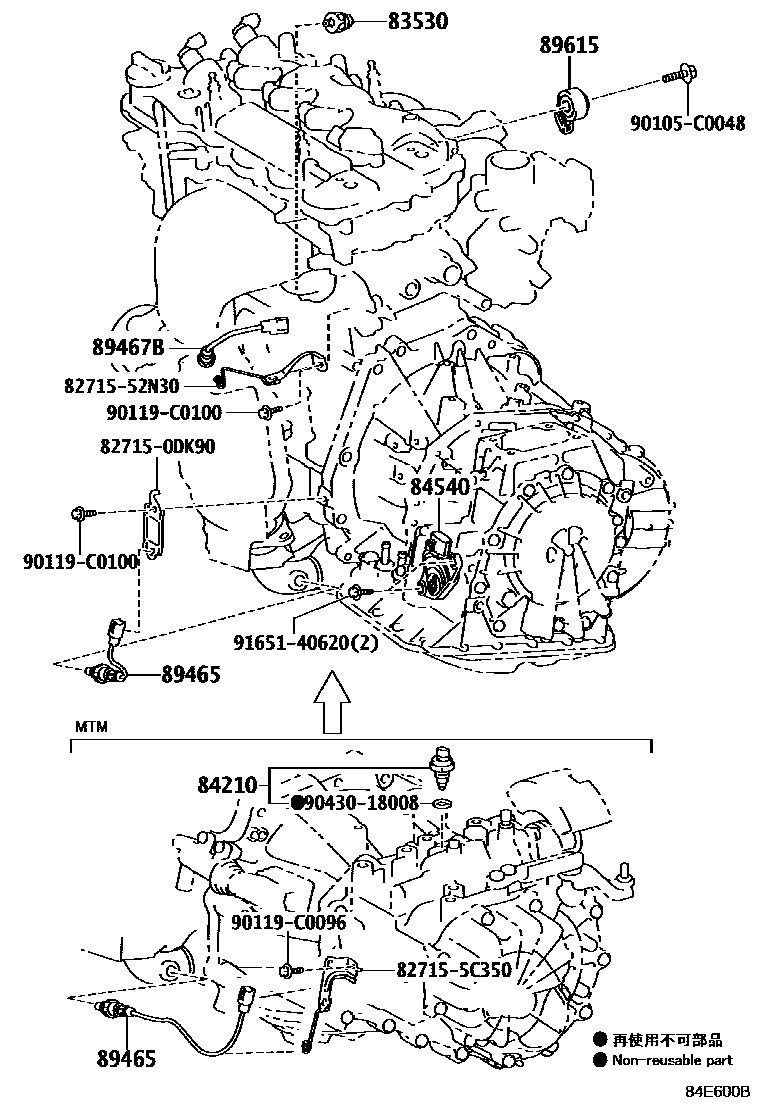

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1DOOR,ROOF,FLOOR & LUGGAGE 0013 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNSP150201311-202008

DENSO

main83530-60020iNSP151201311-202008

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52050iNSP15#..5F201311-202008

84540SWITCH ASSY, NEUTRAL START

main84540-02020iNSP151..CVT201609-202008

main84540-52110iNSP15#..4FC201311-201609

89465SENSOR, OXYGEN

main89465-0D220iNSP15#..5F201311-202004

main89465-0D230iNSP151..CVT201311-202004

main89467-0D070iNSP151..CVT201811-202008

main89467-0D080iNSP151..5F201811-202008

89467BSENSOR, AIR FUEL RATIO

main89467-0D040iNSP15#201311-201609

main89467-0D050iNSP151201609-202004

main89467-0D060iNSP151201811-202304

89615SENSOR, KNOCK CONTROL

main89615-20090iNSP15#201311-202008

827150DK90BRACKET,WIRING HARNESS CLAMP

main82715-0DK90

8271552N30BRACKET,WIRING HARNESS CLAMP

main82715-52N30

827155C350BRACKET,WIRING HARNESS CLAMP

main82715-5C350

90105C0048

main90105-C0048

90119C0096

main90119-C0096

90119C0100

main90119-C0100

9043018008

main90430-18008

9165140620

main91651-40620

14 parts on this diagram · 13 diagrams in section
