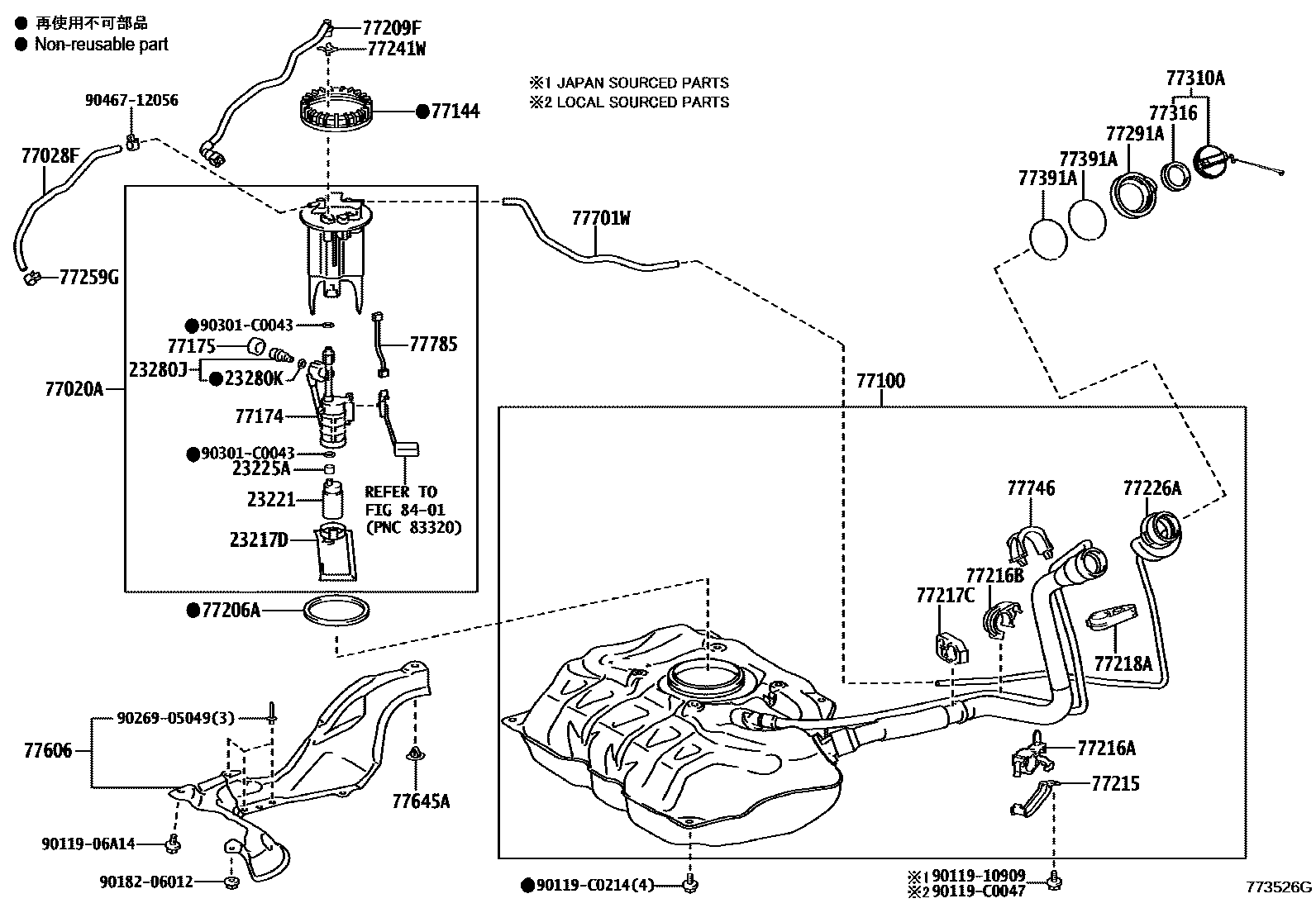

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK, W(CHARCOAL CANISTE0003 1FUEL TANK, W(CHARCOAL CANISTE0004 1FUEL TUBE 0005 1FUEL TUBE, W(CHARCOAL CANISTE0006 1FUEL LID OPENER 0007 1FUEL LID OPENER

23217DFILTER, FUEL PUMP

main23217-0Y030i4NRFE,5NRF..NSP15#201311-201609

23221PUMP, FUEL

main23221-0Y010i4NRFE,5NRF..NSP15#201311-201609

23225ASPACER, FUEL PUMP

main23225-0H020i4NRFE,5NRF..NSP15#201311-201609

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010replaces 23280-22010i5NRF..NSP151202008

main23280-22010i4NRFE,5NRF..NSP15#201311-201609

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i5NRF..NSP151202008

NO.1:REFER ILLUST.

main90301-07020i4NRFE..NSP150201609-202004

main90301-15024replaces 90301-07020i5NRF..NSP151202008

NO.2:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D180iNSP15#201311-201609

main77020-0D380replaces 77020-0D180iNSP151202008-202204

main77020-0D381iNSP151202205

77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2

main77028-0D130iNSP151201609-202008

77100TANK ASSY, FUEL

main77001-0D210iNSP15#201311-201609

main77001-0D211iNSP150201609-202004

main77001-0D400replaces 77001-0D211iNSP151202008

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iNSP150201609-202004

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D040replaces 77174-0D090iNSP151202008

main77174-0D090iNSP150201609-202004

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D040iNSP151201609-202008

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-0D030iNSP15#201311-201609

main77169-0D120replaces 77169-0D030iNSP151202008-202104

main77169-0D160iNSP151202104

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D150iNSP15#201311-201609

main77209-0D250replaces 77209-0D150iNSP151202008

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77219-0D060iNSP15#201311-201609

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0D120iNSP15#201311-201609

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-0D130iNSP15#201311-201609

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0D110iNSP15#201311-201609

main77217-0D230replaces 77217-0D110iNSP151202008

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-0D040iNSP150201609-202004

main77218-0D090replaces 77218-0D040iNSP151202008

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0D051iNSP150201609-202004

main77226-0D190replaces 77226-0D051iNSP151202008-202010

main77226-0D210iNSP151202011

main77226-0D171replaces 77226-0D051iNSP151201811-201907

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

77241WCLIP, TUBE JOINT

main77241-02020iNSP151202101

main77241-33011iNSP15#201311-201609

77259GCLIP, FUEL HOSE

main90466-C0037iNSP15#201311-201609

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D150iNSP15#201311-201609

77310ACAP ASSY, FUEL TANK

main77300-02030iNSP150201609-202004

main77300-06100replaces 77300-02030iNSP151202008-202110

main77300-0F010iNSP15#201311-201609

main77300-0R010iNSP151202111

77316GASKET, FUEL TANK CAP

main77316-0F020iNSP15#201311-201609

main77316-75020replaces 77316-0F020iNSP151202008-202111

77391ARING, FUEL INLET BOX

main77391-0R030×2iNSP151202008

(L)

main77391-12020×2iNSP151201609-202008

(J)

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0D080iNSP15#201311-201609

main77606-0D140replaces 77606-0D080iNSP151202008

77645ARETAINER, FUEL TANK PROTECTOR

main77645-0D020iNSP15#201311-201609

main77645-0D090replaces 77645-0D090iNSP150201805-202004

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D080iNSP150201609-202004

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-52020iNSP151201609-202008

77785HARNESS, FUEL PUMP

main77785-0D100iNSP15#201311-201609

main77785-0D170replaces 77785-0D100iNSP151202008

8401

9011906A14

main90119-06A14

9011910909

main90119-10909

90119C0047

main90119-C0047

90119C0214

main90119-C0214

9018206012

main90182-06012

9026905049

main90269-05049

90301C0043

main90301-C0043

9046712056

main90467-12056

39 parts on this diagram · 7 diagrams in section
