BATTERY CARRIER

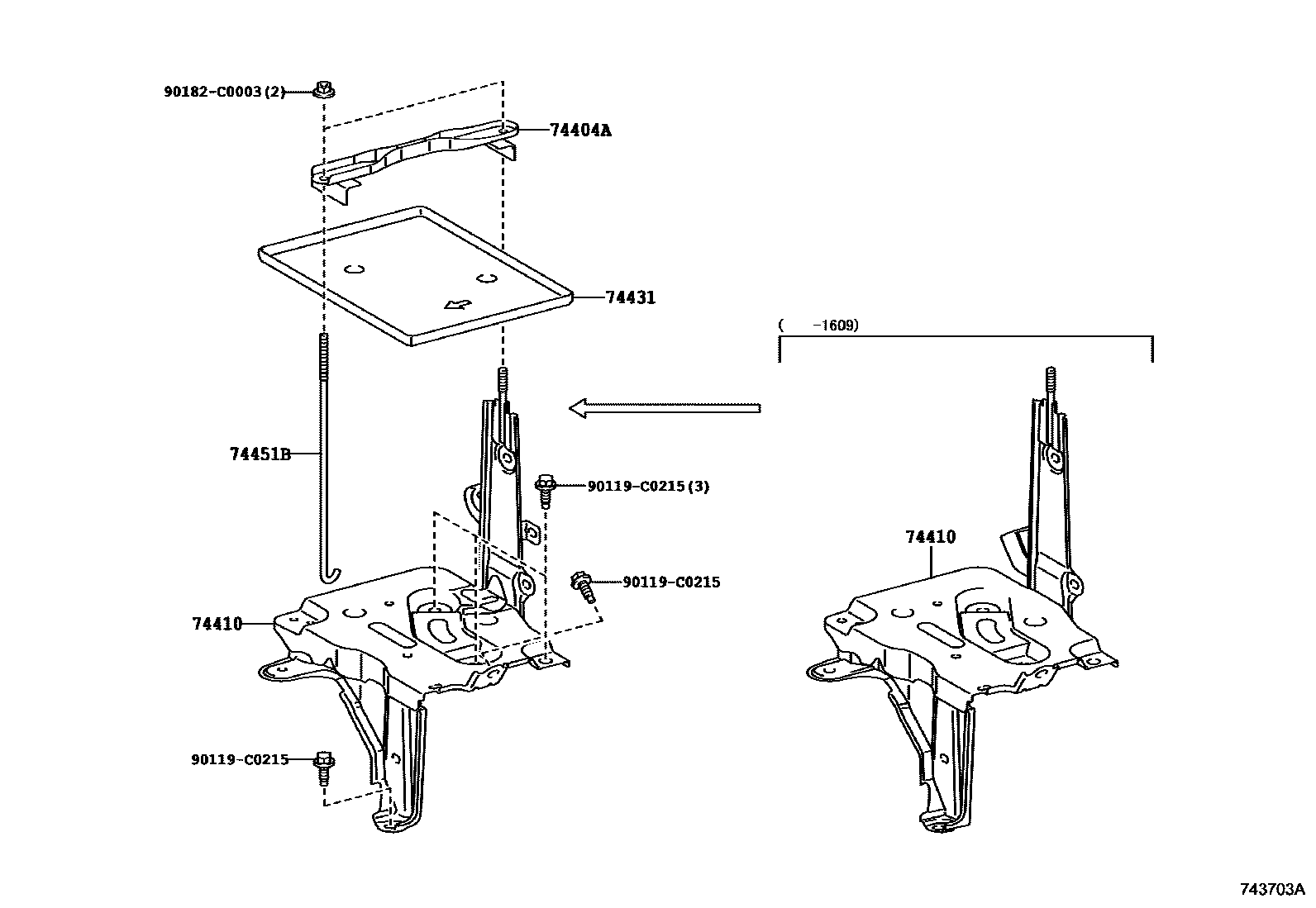

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D160i201311-201609

74410CARRIER ASSY, BATTERY

main74410-0D130i201311-201609

main74410-0D251i201609-202004

74431TRAY, BATTERY

main74431-0D200i201311-201609

main74431-0D300i201609-202004

74451BBOLT, BATTERY CLAMP

main74451-52070i201311-201402

main74451-52071i201403-201609

main74451-52080i201611-202004

90119C0215

main90119-C0215

90182C0003

main90182-C0003

6 parts on this diagram · 1 diagram in section
