REAR SEAT & SEAT TRACK

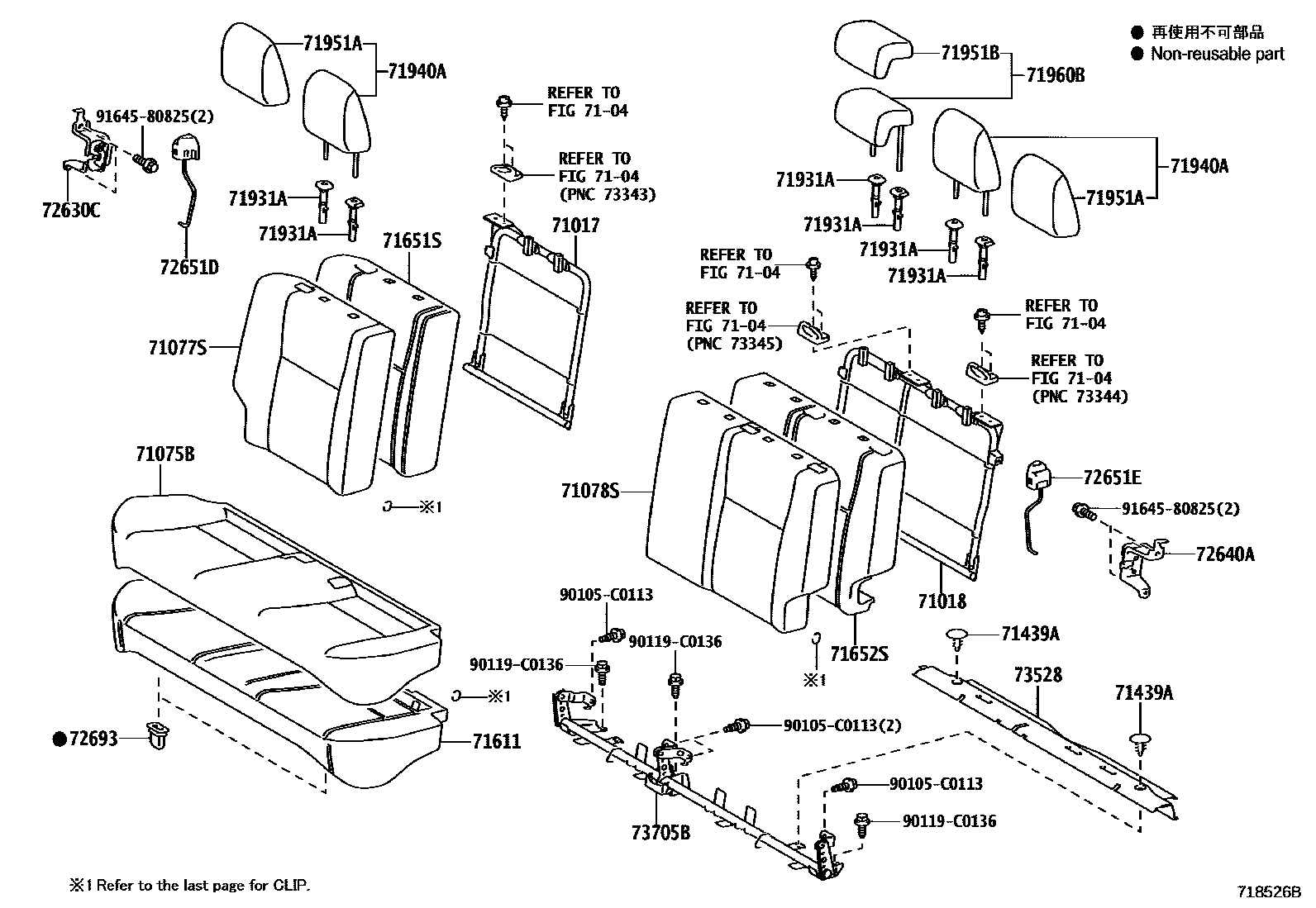

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-0D310i201311-201609
main71017-0D770i202008
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-0D130i201311-201609
main71018-0D450i201703-202008
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-0DA60-A0i201311-201609
IVORY,TRIM0#
main71075-0DA60-A3i201609-202008
IVORY,TRIM0#
main71075-0DA60-C0i201311-201609
BLACK,TRIM2#
main71075-0DA60-C2i201609-202004
BLACK,TRIM2#
main71075-0DA70-A0i201311-201609
IVORY,TRIM0#
main71075-0DA70-A4i201609-202008
IVORY,TRIM0#
main71075-0DA70-C0i201311-201609
BLACK,TRIM2#
main71075-0DA70-C2i201609-202008
BLACK,TRIM2#
main71075-0DA80-A0i201311-201609
IVORY,TRIM0#
main71075-0DA80-A2i201609-202008
IVORY,TRIM0#
main71075-0DM90-A2i201703-202004
IVORY,TRIM0#
main71075-0DM90-C2i201703-202004
BLACK,TRIM2#
main71075-0DN00-A2i201703-202008
IVORY,TRIM0#
main71075-0DN00-C2i201703-202008
BLACK,TRIM2#
main71075-0DN10-A3i201703-202008
IVORY,TRIM0#
main71075-0DZ70-B1i202008
LT. GRAY,TRIM1#
main71075-0DZ70-C1i202008
BLACK,TRIM2#
main71075-0DZ80-B2i202008
LT. GRAY/WHITE,TRIM1#
main71075-0DZ80-B3i202008
LT. GRAY/MUSTARD YELLOW,TRIM2#
main71075-0DZ90-B2i202008
LT. GRAY,TRIM1#
main71075-0DZ90-C1i202008
BLACK,TRIM2#
main71075-0U010-B2i202008
LT. GRAY,TRIM1#
main71075-0U010-C1i202008
BLACK,TRIM2#
main71075-0DA70-A3i201511-201609
WITH(ALUMINUM WHEEL),WHITE/BLACK,TRIM2#
main71075-0DM60-A0i201410-201510
TWO-TONE PACKAGE,WHITE/BLACK,TRIM2#
main71075-YK090i202108-202207
CARE PACKAGE
main71075-YK100i202108-202207
CARE PACKAGE
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-0DC70-A0i201311-201608
IVORY,TRIM0#
sub71077-0DC71
main71077-0DS90-A1i201609-202008
IVORY,TRIM0#
main71077-0DT00-A2i201703-202008
IVORY,TRIM0#
main71077-0DT00-C2i201703-202008
BLACK,TRIM2#
main71077-0DT10-A2i201703-202008
IVORY,TRIM0#
main71077-0DT10-C2i201703-202008
BLACK,TRIM2#
main71077-0DT20-A3i201703-202008
IVORY,TRIM0#
main71077-0U770-B4i202008
LT. GRAY/MUSTARD YELLOW,TRIM2#
main71077-0U770-B6i202008
LT. GRAY/WHITE,TRIM1#
main71077-0U790-B3i202008
LT. GRAY,TRIM1#
main71077-0U790-C1i202008
BLACK,TRIM2#
main71077-0DC60-A0i201311-201403
MOON ROOF-WITH,IVORY,TRIM0#
main71077-0DC60-C0i201311-201403
MOON ROOF-WITH,BLACK,TRIM2#
main71077-0DS50-A0i201410-201510
TWO-TONE PACKAGE,WHITE/BLACK,TRIM2#
main71077-YK120i202108-202207
CARE PACKAGE
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-0D560-A0i201311-201608
IVORY,TRIM0#
sub71078-0D561
main71078-0D730-A2i201609-202008
IVORY,TRIM0#
main71078-0DB90-A2i201703-202004
IVORY,TRIM0#
main71078-0DB90-C2i201703-202004
BLACK,TRIM2#
main71078-0DC00-A2i201703-202008
IVORY,TRIM0#
main71078-0DC00-C2i201703-202008
BLACK,TRIM2#
main71078-0DC10-A3i201703-202008
IVORY,TRIM0#
main71078-0DM70-B6i202008
LT. GRAY/MUSTARD YELLOW,TRIM2#
main71078-0DM70-B7i202008
LT. GRAY/WHITE,TRIM1#
main71078-0DM80-B3i202008
LT. GRAY,TRIM1#
main71078-0DM80-C2i202008
BLACK,TRIM2#
main71078-0D550-A0i201311-201403
MOON ROOF-WITH,IVORY,TRIM0#
main71078-0D550-C0i201311-201403
MOON ROOF-WITH,BLACK,TRIM2#
main71078-0DB80-A0i201410-201510
TWO-TONE PACKAGE,WHITE/BLACK,TRIM2#
main71078-YK060i202108-202207
CARE PACKAGE
71439ACLIP
main90467-05161-C0×7i201703-201808
BLACK
main90467-05161-C9×7i201808-202004
BLACK
main90467-08186-C0×2i201311-201609
BLACK
main90467-08186-C3×2i201610-202008
BLACK
main90467-C0096-C0i202211
BLACK,(L)
71611PAD, REAR SEAT CUSHION
main71503-0D230i201609-202004
main71503-0D620i201703-202004
main71503-0D670i202008
main71503-0D680i202008
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-0D270i201311-201609
main71651-0D690i201609-202008
main71651-0D700i201703-202008
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-0D170i201311-201609
main71652-0D360i201609-202008
main71652-0D370i201703-202004
71931ASUPPORT, REAR SEAT HEADREST
main71930-02360-A1×3i201609-202008
W(LOCK),IVORY,TRIM0#
main71930-02360-C0×3i201311-201609
W(LOCK),BLACK,TRIM2#
main71931-02120-A1×3i201609-202008
W/O(LOCK),IVORY,TRIM0#
main71931-02120-C0×3i201311-201609
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-0D720-A0×2i201311-201512
IVORY,TRIM0#
main71940-0D720-C0×2i201311-201512
BLACK,TRIM2#
main71940-0D721-A0×2i201604-201609
IVORY,TRIM0#
main71940-0D721-B1×2i202008
LT. GRAY,TRIM1#
main71940-0D721-C0×2i201609-202004
BLACK,TRIM2#
main71940-0D730-A0×2i201311-201409
IVORY,TRIM0#
main71940-0D730-A1×2i201409-201512
IVORY,TRIM0#
main71940-0D731-A1×2i201604-201609
IVORY,TRIM0#
main71940-0D731-A2×2i201609-202008
IVORY,TRIM0#
main71940-0DA00-A0×2i201512-201603
IVORY,TRIM0#
main71940-0DA00-C0×2i201512-201603
BLACK,TRIM2#
main71940-0DA10-A0×2i201512-201603
IVORY,TRIM0#
main71940-0DF90-A0×2i201703-202008
IVORY,TRIM0#
main71940-0DF90-B1×2i202008
LT. GRAY,TRIM1#
main71940-0DF90-C0×2i201703-202008
BLACK,TRIM2#
main71940-0DG00-A0×2i201703-202008
IVORY,TRIM0#
main71940-0DS20-B1×2i202008
LT. GRAY,TRIM1#
main71940-0DS20-C1×2i202008
BLACK,TRIM2#
main71940-0DS30-B1×2i202008
LT. GRAY,TRIM1#
main71940-0DS30-C1×2i202008
BLACK,TRIM2#
main71940-0D730-C1×2i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
71951ACOVER, REAR SEAT HEADREST
main71951-0D240-A0×2i201311-201512
IVORY,TRIM0#
main71951-0D240-C0×2i201311-201512
BLACK,TRIM2#
main71951-0D242-A0×2i201609-202004
IVORY,TRIM0#
main71951-0D242-B1×2i202008
LT. GRAY,TRIM1#
main71951-0D242-C0×2i201609-202008
BLACK,TRIM2#
main71951-0D250-A0×2i201311-201409
IVORY,TRIM0#
main71951-0D250-A1×2i201409-201512
IVORY,TRIM0#
main71951-0D252-A1×2i201604-201609
IVORY,TRIM0#
main71951-0D252-A2×2i201609-202008
IVORY,TRIM0#
main71951-0D350-A0×2i201512-201603
IVORY,TRIM0#
main71951-0D350-C0×2i201512-201603
BLACK,TRIM2#
main71951-0D360-A0×2i201512-201603
IVORY,TRIM0#
main71951-0D390-A0×2i201703-202008
IVORY,TRIM0#
main71951-0D390-B1×2i202008
LT. GRAY,TRIM1#
main71951-0D390-C0×2i201703-202008
BLACK,TRIM2#
main71951-0D400-A0×2i201703-202008
IVORY,TRIM0#
main71951-0D720-B1×2i202008
LT. GRAY,TRIM1#
main71951-0D720-C1×2i202008
BLACK,TRIM2#
main71951-0D730-B1×2i202008
LT. GRAY,TRIM1#
main71951-0D730-C1×2i202008
BLACK,TRIM2#
main71951-0D250-C1×2i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
71951BCOVER, REAR SEAT HEADREST, CENTER
main71951-0D210-A0i201311-201512
IVORY,TRIM0#
main71951-0D210-C0i201311-201512
BLACK,TRIM2#
main71951-0D212-A0i201604-201609
IVORY,TRIM0#
main71951-0D212-B1i202008
LT. GRAY,TRIM1#
main71951-0D212-C0i201604-201609
BLACK,TRIM2#
main71951-0D212-C2i202008
BLACK,TRIM2#
main71951-0D230-A0i201311-201409
IVORY,TRIM0#
sub71951-0D340
main71951-0D230-A1i201409-201512
IVORY,TRIM0#
sub71951-0D340
main71951-0D232-A1i201604-201609
IVORY,TRIM0#
main71951-0D232-A2i201609-202008
IVORY,TRIM0#
main71951-0D370-A0i201512-201603
IVORY,TRIM0#
main71951-0D370-C0i201512-201603
BLACK,TRIM2#
main71951-0D380-A0i201512-201603
IVORY,TRIM0#
main71951-0D420-A0i201703-202004
IVORY,TRIM0#
main71951-0D420-B1i202008
LT. GRAY,TRIM1#
main71951-0D420-C0i201703-202004
BLACK,TRIM2#
main71951-0D420-C1i202008
BLACK,TRIM2#
main71951-0D740-B1i202008
LT. GRAY,TRIM1#
main71951-0D740-C1i202008
BLACK,TRIM2#
main71951-0D750-B1i202008
LT. GRAY,TRIM1#
main71951-0D750-C1i202008
BLACK,TRIM2#
main71951-0D220-A0i201311-201403
MOON ROOF-WITH,IVORY,TRIM0#
sub71951-0D330
main71951-0D220-C0i201311-201403
MOON ROOF-WITH,BLACK,TRIM2#
sub71951-0D330
main71951-0D230-C1i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
sub71951-0D340
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-0D320-A0i201703-202008
IVORY,TRIM0#
main71960-0D320-B1i202008
LT. GRAY,TRIM1#
main71960-0D320-C0i201703-202004
BLACK,TRIM2#
main71960-0D320-C1i202008
BLACK,TRIM2#
main71960-0D370-A0i201311-201512
IVORY,TRIM0#
main71960-0D370-C0i201311-201512
BLACK,TRIM2#
main71960-0D371-A0i201609-202004
IVORY,TRIM0#
main71960-0D371-B1i202008
LT. GRAY,TRIM1#
main71960-0D371-C0i201604-201609
BLACK,TRIM2#
main71960-0D371-C2i202008
BLACK,TRIM2#
main71960-0D390-A0i201311-201409
IVORY,TRIM0#
main71960-0D390-A1i201409-201512
IVORY,TRIM0#
main71960-0D391-A1i201604-201609
IVORY,TRIM0#
main71960-0D391-A2i201609-202008
IVORY,TRIM0#
main71960-0D830-A0i201512-201603
IVORY,TRIM0#
main71960-0D830-C0i201512-201603
BLACK,TRIM2#
main71960-0D840-A0i201512-201603
IVORY,TRIM0#
main71960-0DD30-B1i202008
LT. GRAY,TRIM1#
main71960-0DD30-C1i202008
BLACK,TRIM2#
main71960-0DD70-B1i202008
LT. GRAY,TRIM1#
main71960-0DD70-C1i202008
BLACK,TRIM2#
main71960-0D380-A0i201311-201403
MOON ROOF-WITH,IVORY,TRIM0#
main71960-0D380-C0i201311-201403
MOON ROOF-WITH,BLACK,TRIM2#
main71960-0D390-C1i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-0D070i202008
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-0D070i201311-201609
72651DROD, REAR SEATBACK LOCK, RH
main72651-0D030-A0i201703-202004
IVORY,TRIM0#
main72651-0D030-C0i202008
BLACK,TRIM1#,2#
main72651-0D060-A0i201609-202008
IVORY,TRIM0#
main72651-0D060-C0i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
72651EROD, REAR SEATBACK LOCK, LH
main72652-0D030-A0i201703-202004
IVORY,TRIM0#
main72652-0D030-C0i202008
BLACK,TRIM1#,2#
main72652-0D060-A0i201609-202008
IVORY,TRIM0#
main72652-0D060-C0i201410-201510
TWO-TONE PACKAGE,BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-02030×2i201609-202004
73528CARPET, REAR SEAT SUB FLOOR, REAR
main73528-0D040i201311-201601
W/O(CCC MARK)
main73528-0D041i201601-201609
W(CCC MARK)
73705BBRACKET SUB-ASSY, CROSS ANCHOR
main73705-0D160i201311-201609
main73705-0D170i201609-202008
main73705-0D600i201703-202004
90105C0113
main90105-C0113
90119C0136
main90119-C0136
9164580825
main91645-80825

25 parts on this diagram · 4 diagrams in section
