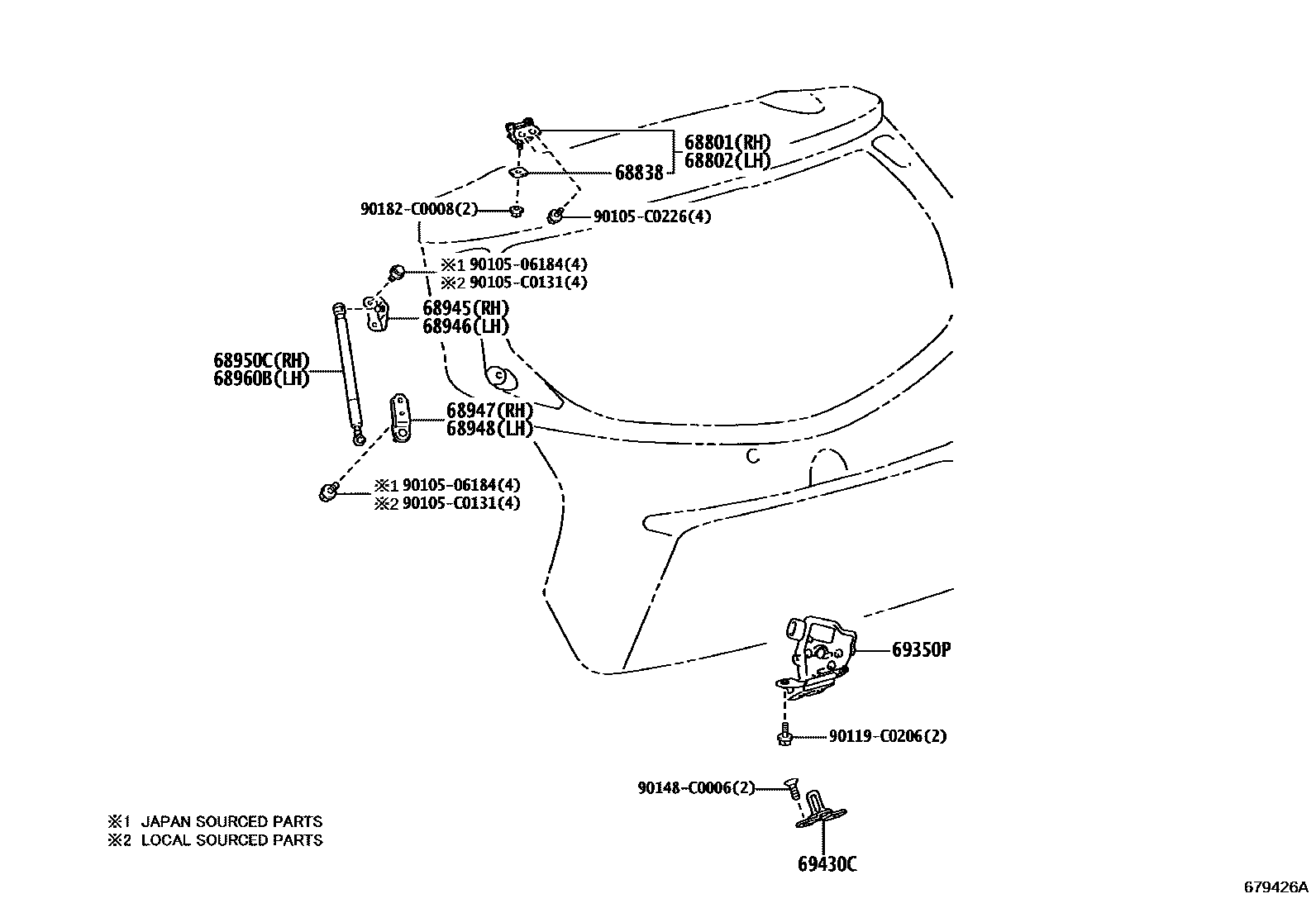

BACK DOOR LOCK & HANDLE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-0D350iNSP150..5D201703-202004

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-0D350iNSP150..5D201703-202004

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D170×2iNSP151..5D201703-202008

T=0.5

main68838-0D180×2iNSP150..5D201703-202004

T=1.0

main68838-0D190×2iNSP150..5D201703-202004

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D060iNSP151..5D202008

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-0D060iNSP151..5D201703-202008

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0D030iNSP150..5D201703-202004

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-0D030iNSP150..5D201703-202004

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D100iNSP150..5D201703-202004

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D040iNSP150..5D201703-202004

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D160iNSP150..5D201703-202004

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0D080iNSP150..5D201703-202004

9010506184

main90105-06184

90105C0131

main90105-C0131

90105C0226

main90105-C0226

90119C0206

main90119-C0206

90148C0006

main90148-C0006

90182C0008

main90182-C0008

17 parts on this diagram · 1 diagram in section
