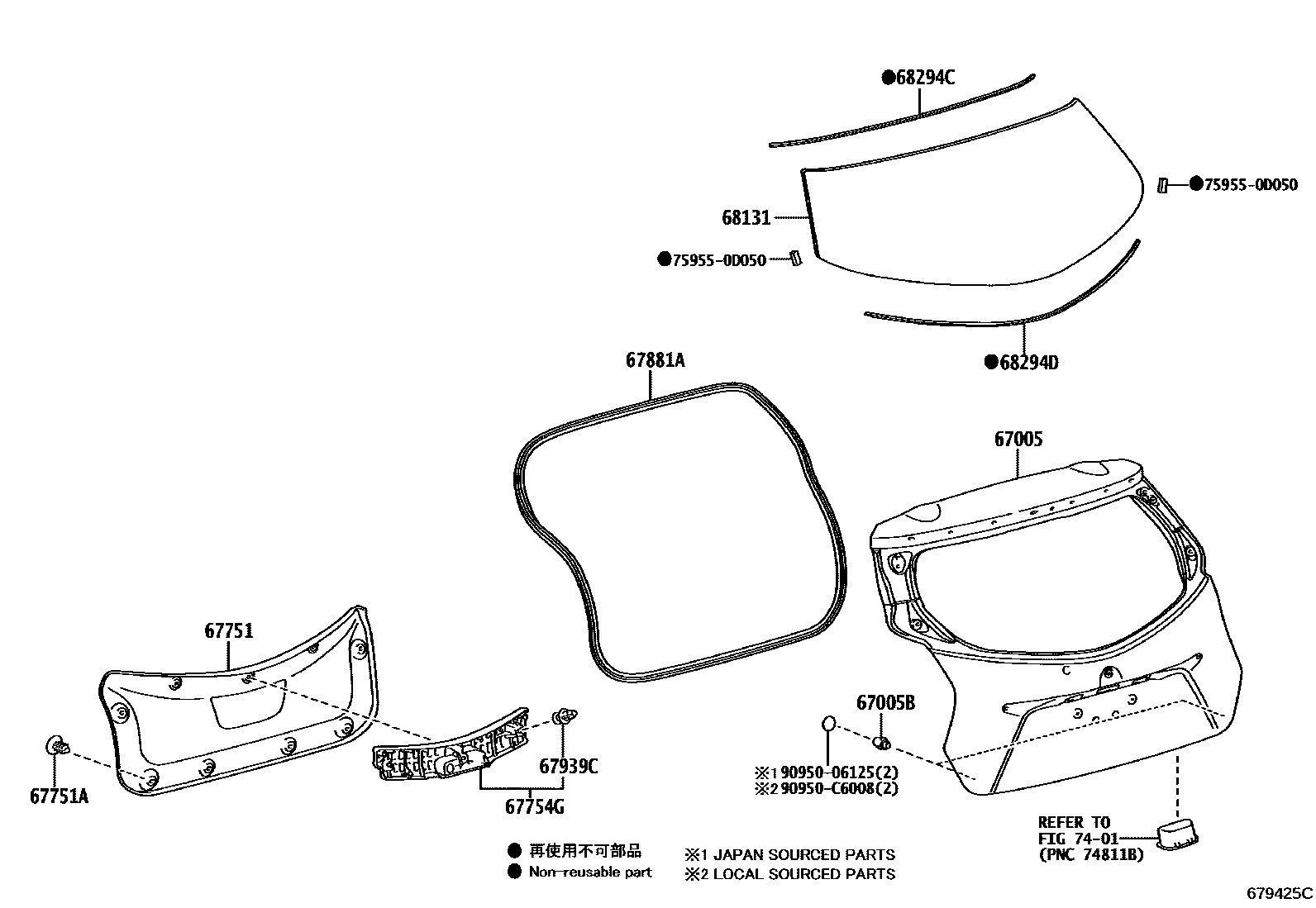

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D520iNSP150..5D201703-202004

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09125×2iNSP150..5D201703-202004

67751BOARD, BACK DOOR TRIM

main67750-0D180-C0iNSP150..5D201703-202004

BLACK,TRIM0#,2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-08186×9iNSP15#..5D201703-201705

main90467-C0045-C0×9iNSP150..5D201706-202004

BLACK,TRIM0#,2#

67754GSPACER, BACK DOOR TRIM

main67754-0D080iNSP150..5D201703-202004

67881AWEATHERSTRIP, BACK DOOR

main67881-0D160iNSP150..5D201703-202004

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-C0036×3iNSP150..5D201703-202004

68131GLASS, BACK DOOR

main68105-0D160iNSP15#..5D201703-201802

main68105-0D450iNSP150..5D201802-202004

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main64813-0D370iNSP150..5D201703-202004

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main64814-0D190iNSP150..5D201703-202004

7401

759550D050PLATE, REAR DOOR SCUFF, OUTSIDE RH

main75955-0D050

9095006125

main90950-06125

90950C6008

main90950-C6008

14 parts on this diagram · 1 diagram in section
