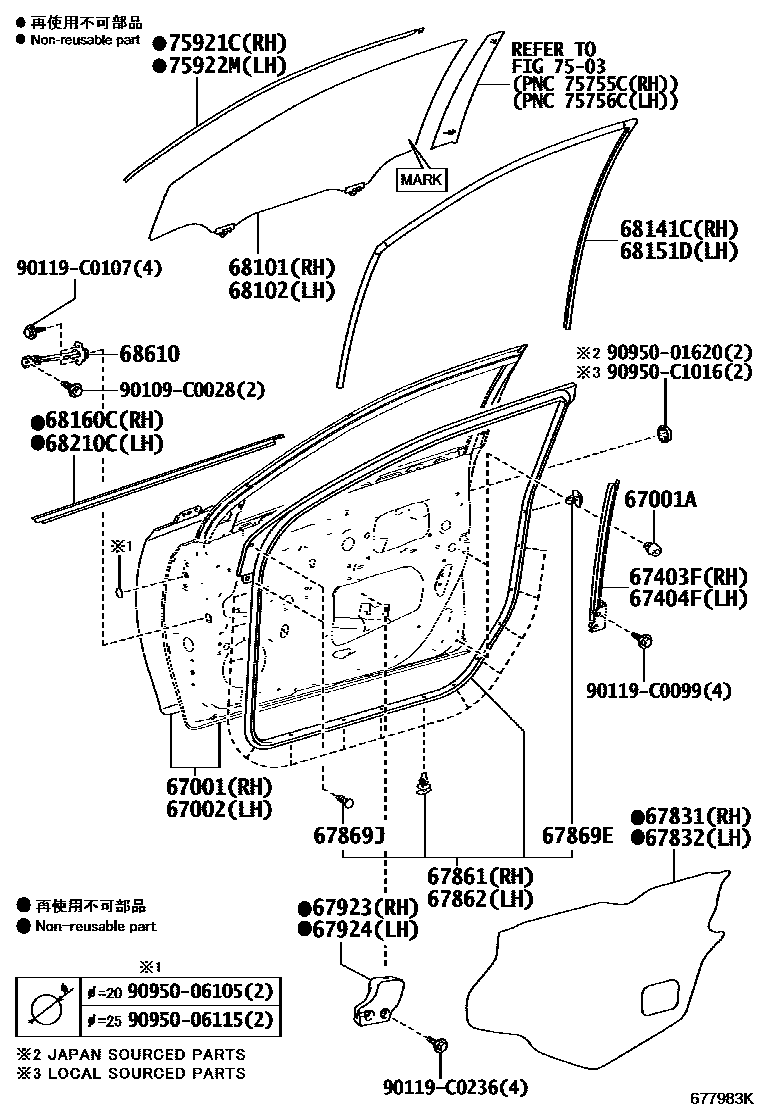

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
(J)
(L)
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67869JCLIP, FRONT DOOR WEATHERSTRIP
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
MARK=FUYAO(E000970)
MARK=FUYAO(E006888)
MARK=FUYAO(E006888)
68102GLASS SUB-ASSY, FRONT DOOR, LH
MARK=FUYAO(E000970)
MARK=FUYAO(E006888)
MARK=FUYAO(E006888)
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
7503
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90119C0236
main90119-C0236
9095001620
main90950-01620
9095006105
main90950-06105
9095006115
main90950-06115
90950C1016
main90950-C1016
31 parts on this diagram · 2 diagrams in section
