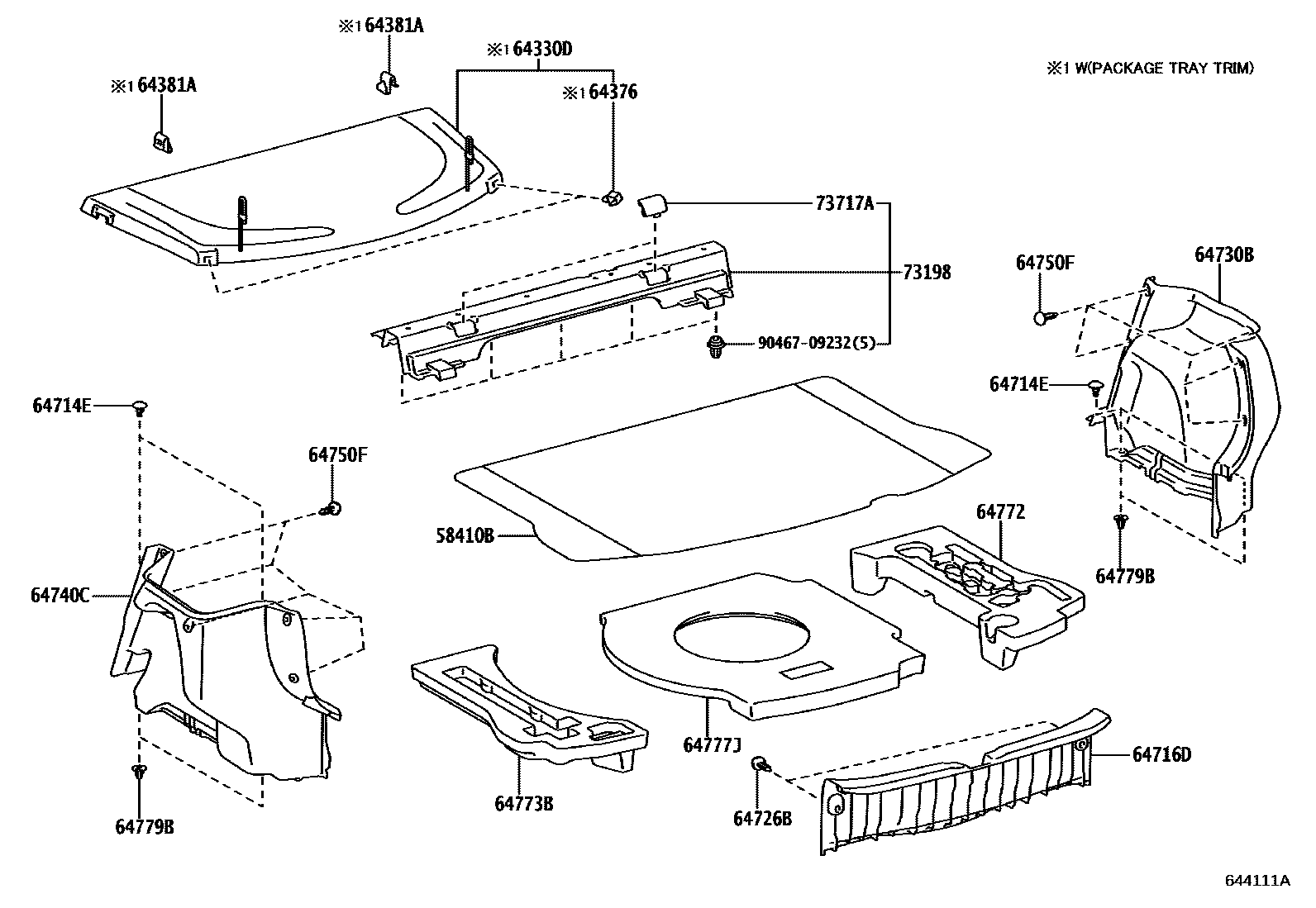

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-0D120-C0iNSP150..5D201703-202004

BLACK,TRIM0#,2#

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-0D530-A1iNSP151..5D..(G,N)201703-202008

IVORY,TRIM0#

main64330-0D530-C1iNSP151..5D..N201703-202008

BLACK,TRIM2#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020×2iNSP151..5D..(G,N)201703-202008

64381AHANGER, PACKAGE TRAY TRIM

main64381-52010×2iNSP151..5D..(G,N)201703-202008

64714ECLIP(FOR DECK TRIM SIDE COVER)

main64726-0D010×4iNSP150..5D201703-202004

64716DCOVER, DECK TRIM, REAR

main64716-0D230iNSP150..5D201703-202004

64726BCLIP, DECK REAR TRIM

main90467-08186-C3×2iNSP15#..5D..(N,R)201703-201705

BLACK,TRIM0#,2#

main90467-C0045-C0×2iNSP150..5D201706-202004

BLACK,TRIM0#,2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D480-C0iNSP150..5D201703-202004

BLACK,TRIM0#,2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D480-C0iNSP150..5D201703-202004

BLACK,TRIM0#,2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-08186-C3×10iNSP15#..5D..(N,R)201703-201705

BLACK,TRIM0#,2#

main90467-C0045-C0×10iNSP150..5D201706-202004

BLACK,TRIM0#,2#

64772PAD, SPARE WHEEL COVER

main64772-0D240iNSP150..5D201703-202004

64773BPAD, SPARE WHEEL COVER, NO.2

main64773-0D180iNSP150..5D201703-202004

64777JCUSHION, SPARE WHEEL

main64777-0D130iNSP150..5D201703-202004

64779BSTOPPER, SPARE WHEEL COVER

main64779-0D040×4iNSP150..5D201703-202004

73198COVER, REAR SEAT BRACKET

main73198-0D020iNSP150..5D201703-202004

73717ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-0D160×2iNSP150..5D201703-202004

9046709232

main90467-09232

17 parts on this diagram · 1 diagram in section
