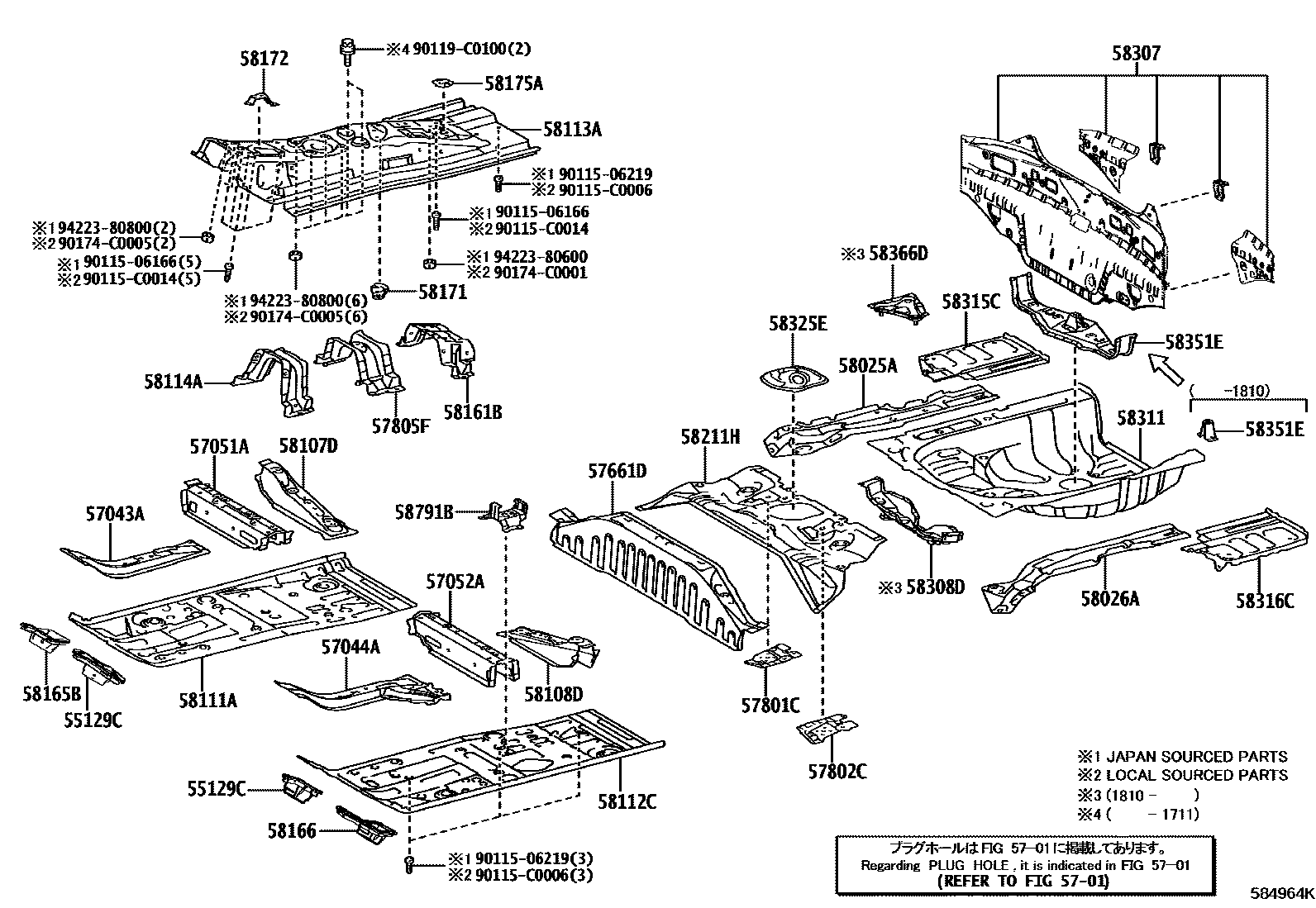

FLOOR PAN & LOWER BACK PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH
57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
sub58112-52921
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58311PAN, REAR FLOOR
58315CEXTENSION, REAR FLOOR SIDE PANEL, RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
90115C0006
main90115-C0006
90115C0014
main90115-C0014
90119C0100
main90119-C0100
90174C0001
main90174-C0001
90174C0005
main90174-C0005
9422380600
main94223-80600
9422380800
main94223-80800
43 parts on this diagram · 2 diagrams in section
