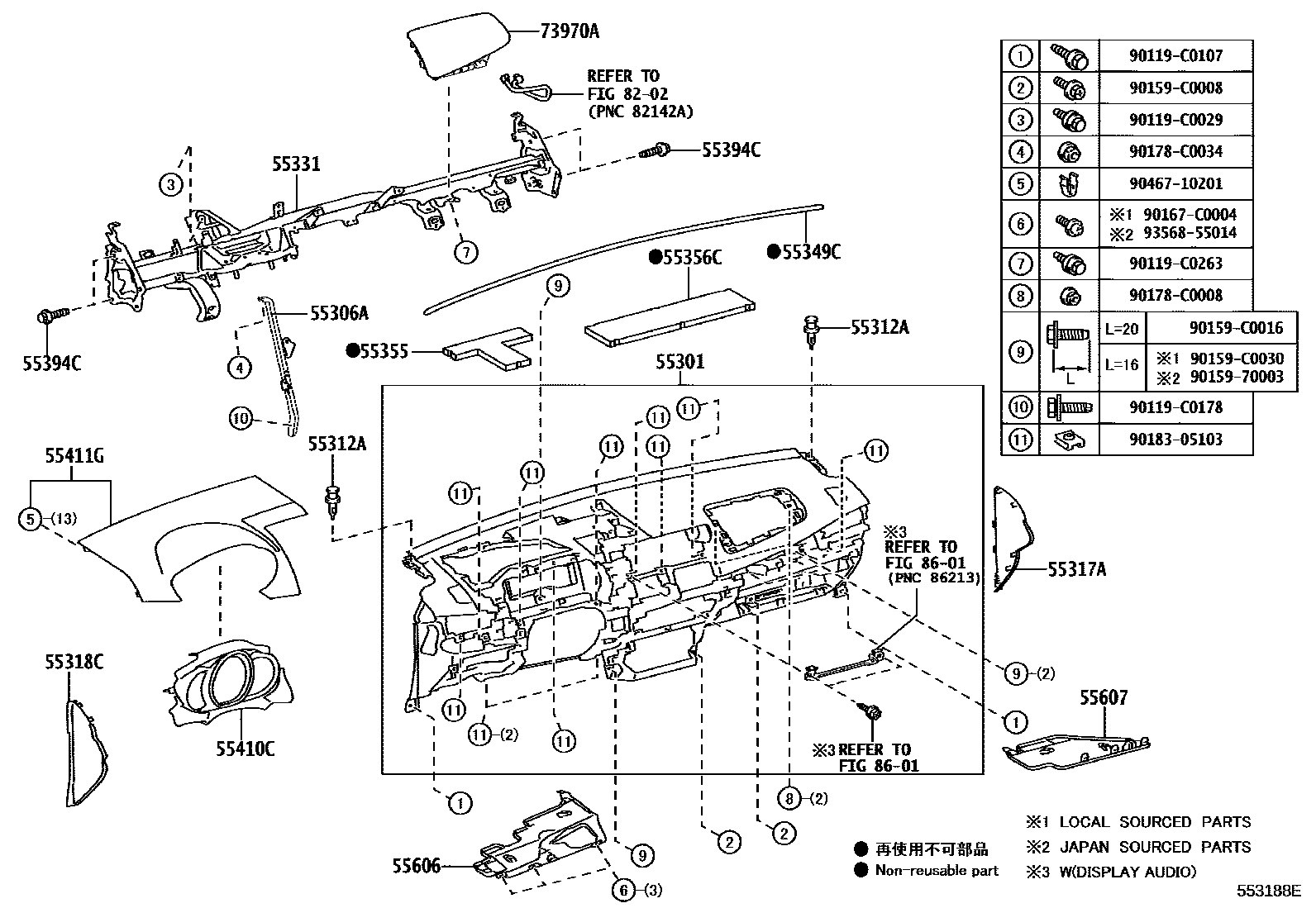

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1CENTER 0005 1CENTER 0006 1PASSENGER SIDE 0007 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55310-0D070-E0iNSP15#201311-201511

DK. BROWN,TRIM0#,2#

sub55310-0D071

main55310-0D071-C0iNSP151..N,R201609-202008

BLACK,TRIM0#

main55310-0D071-C0iNSP150201609-202008

BLACK,TRIM0#,2#

main55310-0D071-C0iNSP151202008

BLACK,TRIM1#,2#

main55310-0D071-E0iNSP15#..N,R201512-201609

DK. BROWN,TRIM0#

main55310-0D071-E0iNSP15#..N,R201512-201609

DK. BROWN,TRIM0#,2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D210iNSP15#201311-202008

55312ACLIP, INSTRUMENT PANEL

main52161-02040iNSP15#201411-202008

(L)

main52161-16010iNSP151201411-202008

(J)

sub52161-0K040

main52161-16010iNSP15#201311-201411

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-0D080-C0iNSP151..N,R;NSP151..5D..G201609-202008

BLACK,TRIM0#

main55317-0D080-C0iNSP150201609-202008

BLACK,TRIM0#,2#

main55317-0D080-C0iNSP151202008

BLACK,TRIM1#,2#

main55317-0D080-E0iNSP15#201311-201609

DK. BROWN,TRIM0#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0D060-C0iNSP150201609-202008

BLACK,TRIM0#,2#

main55318-0D060-C0iNSP151..4D..G201609-202008

BLACK,TRIM0#

main55318-0D060-C0iNSP151202008

BLACK,TRIM1#,2#

main55318-0D060-E0iNSP15#201311-201609

DK. BROWN,TRIM0#,2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D470iNSP15#201311-201609

main55330-0D650iNSP150201609-202008

55349CCUSHION, INSTRUMENT PANEL

main55349-0D160iNSP15#201311-201806

main55349-0D161iNSP150201807-202008

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D150iNSP15#201311-201703

main55355-0D151iNSP150201703-202008

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D150iNSP15#201311-201703

main55356-0D151iNSP150201703-202008

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP15#201311-202008

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-0D060iNSP15#201311-202008

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-0D160-E0iNSP15#201311-201511

DK. BROWN,TRIM0#,2#

sub55411-0D161

main55411-0D161-C0iNSP151..G201609-202008

BLACK,TRIM0#,2#

main55411-0D161-C0iNSP151..G201609-202008

BLACK,TRIM0#

main55411-0D161-C0iNSP151202008

BLACK,TRIM1#,2#

main55411-0D161-E0iNSP151..G201512-201609

DK. BROWN,TRIM0#

main55411-0D161-E0iNSP15#..N,R201512-201609

DK. BROWN,TRIM0#,2#

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-0D070iNSP15#201311-201804

sub55606-0D071

main55606-0D071iNSP150201805-202008

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-0D090iNSP15#201311-201703

main55607-0D091iNSP150201703-202008

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0D120-C0iNSP151202008

BLACK,TRIM1#,2#

main73970-0D120-C0iNSP150201609-202008

BLACK,TRIM0#,2#

main73970-0D120-C0iNSP151..4D..G201609-202008

BLACK,TRIM0#

main73970-0D120-E0iNSP15#201311-201609

DK. BROWN,TRIM0#,2#

8202

8601

90119C0029

main90119-C0029

90119C0107

main90119-C0107

90119C0178

main90119-C0178

90119C0263

main90119-C0263

9015970003

main90159-70003

90159C0008

main90159-C0008

90159C0016

main90159-C0016

90159C0030

main90159-C0030

90167C0004

main90167-C0004

90178C0008

main90178-C0008

90178C0034

main90178-C0034

9018305103

main90183-05103

9046710201

main90467-10201

9356855014

main93568-55014

31 parts on this diagram · 7 diagrams in section
