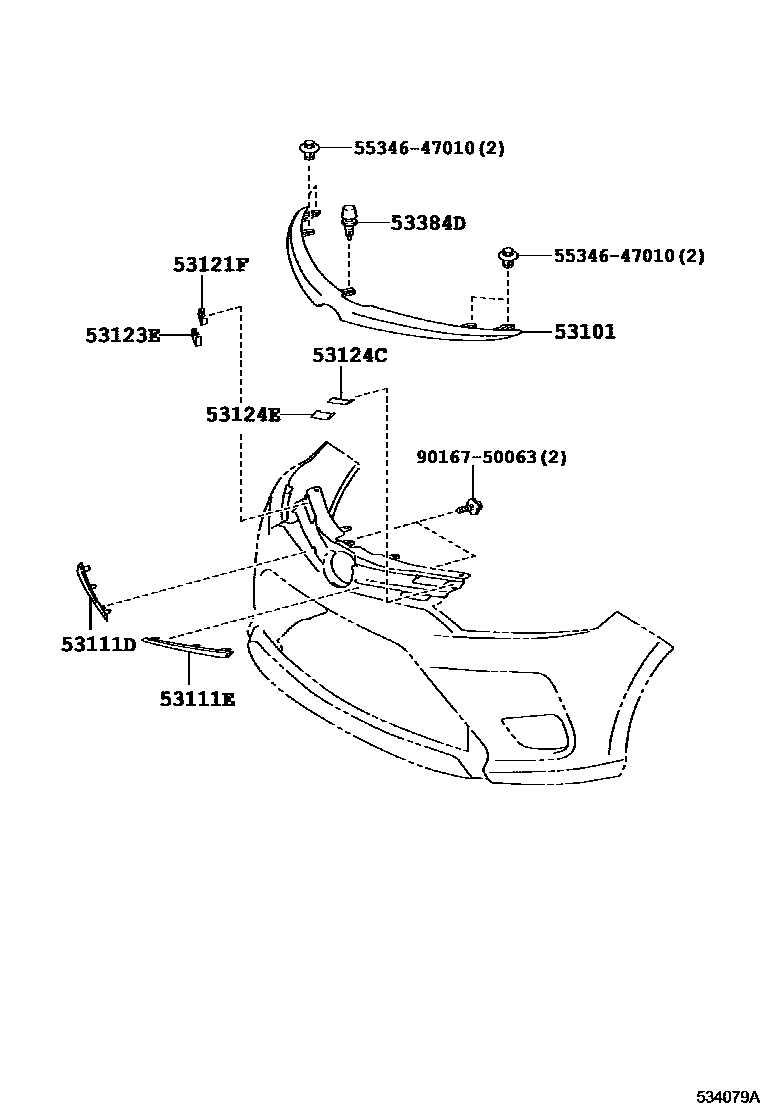

RADIATOR GRILLE
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.,ENTRY PACKAGE
PLATED
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
SILKY BEIGE ME.,4W1
BLUE ME.,8V6
GLITTER VIOLET M.M.,9AP
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
SILKY BEIGE ME.,4W1
BLUE ME.,8V6
GLITTER VIOLET M.M.,9AP
NO PAINT REQ.
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2NR
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
SILKY BEIGE ME.,4W1
BLUE ME.,8V6
GLITTER VIOLET M.M.,9AP
ENTRY PACKAGE,SUPER WHITE 2,040 ,2NR
ENTRY PACKAGE,SUPER WHITE 2,040
ENTRY PACKAGE,WHITE PEARL CS.,070
ENTRY PACKAGE,PLATINUM WHITE PEARL MC.,089
ENTRY PACKAGE,SILVER ME.,1F7
ENTRY PACKAGE,BLACK MC.,209
ENTRY PACKAGE,RED M.M.,3R3
ENTRY PACKAGE,RED M.M.,2NU ,3R3
ENTRY PACKAGE,LUMINOUS YELLOW,2QR ,5B5
SUPER WHITE 2,040
SUPER WHITE 2,040 ,2NR
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,2NU ,3R3
RED M.M.,3R3
LUMINOUS YELLOW,2QR ,5B5
LUMINOUS YELLOW,5B5
53111DMOULDING, RADIATOR GRILLE, RH
ENTRY PACKAGE
53111EMOULDING, RADIATOR GRILLE, LH
ENTRY PACKAGE
53121FMOULDING, RADIATOR GRILLE, UPPER RH
53123EMOULDING, RADIATOR GRILLE, LOWER RH
53124CMOULDING, RADIATOR GRILLE, UPPER LH
53124EMOULDING, RADIATOR GRILLE, LOWER LH
53384DCUSHION, HOOD, CENTER
5534647010GARNISH, GLOVE COMPARTMENT SIDE, RH
main55346-47010
9016750063
main90167-50063
10 parts on this diagram · 3 diagrams in section
