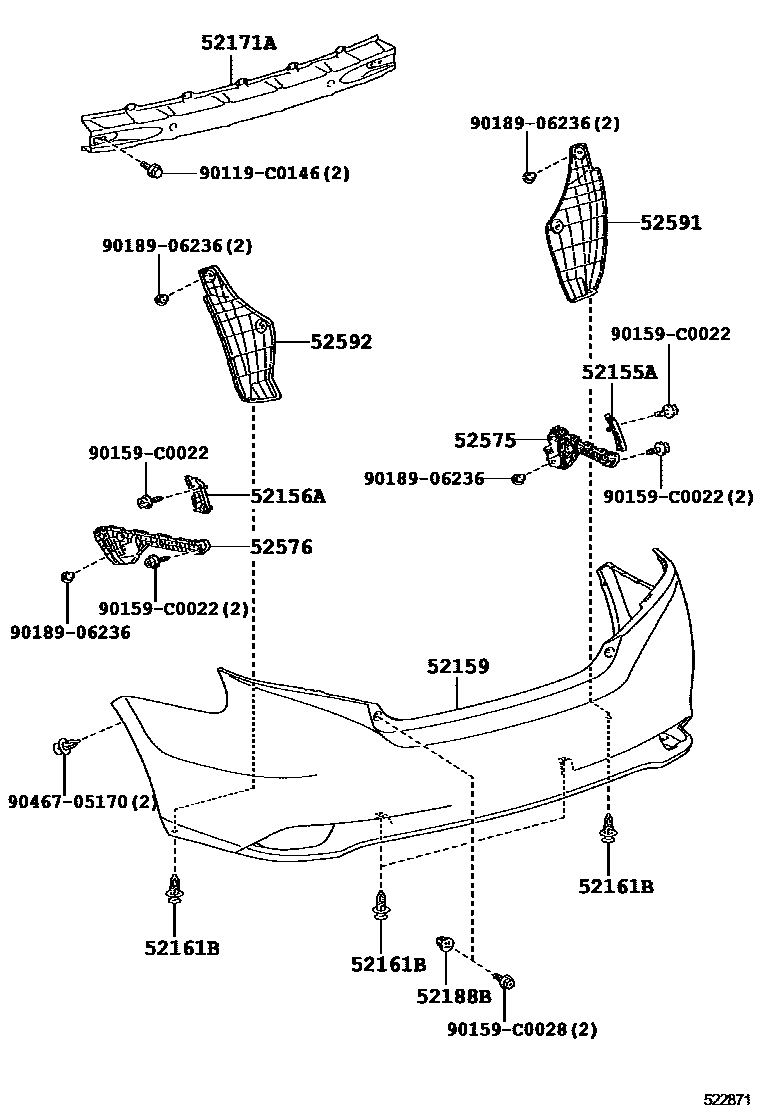

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D060iNSP15#201311-201609

main52155-0D130iNSP151..4D201609-202008

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D050iNSP15#201311-201609

main52156-0D120iNSP151..4D201609-202008

52159COVER, REAR BUMPER

main52159-0U914iNSP15#201311-201609

PAINT REQ.

main52159-0Z937iNSP150..4D201609-202008

PAINT REQ.

main52159-0Z939iNSP151..5D201703-202008

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040iNSP150..4D201311-202008

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-0D070iNSP151201311-202008

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP15#¥80201311-201707

main52188-33040iNSP150..4D¥80201704-202008

(J)

main90189-C0023iNSP150..5D201704-202008

(L)

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D150iNSP15#201311-202008

main52575-0D440iNSP150..5D201703-202008

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D150iNSP15#201311-202008

main52576-0D430iNSP151..5D201703-202008

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D180iNSP15#201311-201609

main52591-0D500iNSP150..4D201609-202008

main52591-0D510iNSP151..5D201703-202008

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D180iNSP15#201311-201609

main52592-0D500iNSP150..4D201609-202008

main52592-0D510iNSP150..5D201703-202008

90119C0146

main90119-C0146

90159C0022

main90159-C0022

90159C0028

main90159-C0028

9018906236

main90189-06236¥100

9046705170

main90467-05170¥80

15 parts on this diagram · 3 diagrams in section
