REAR SPRING & SHOCK ABSORBER

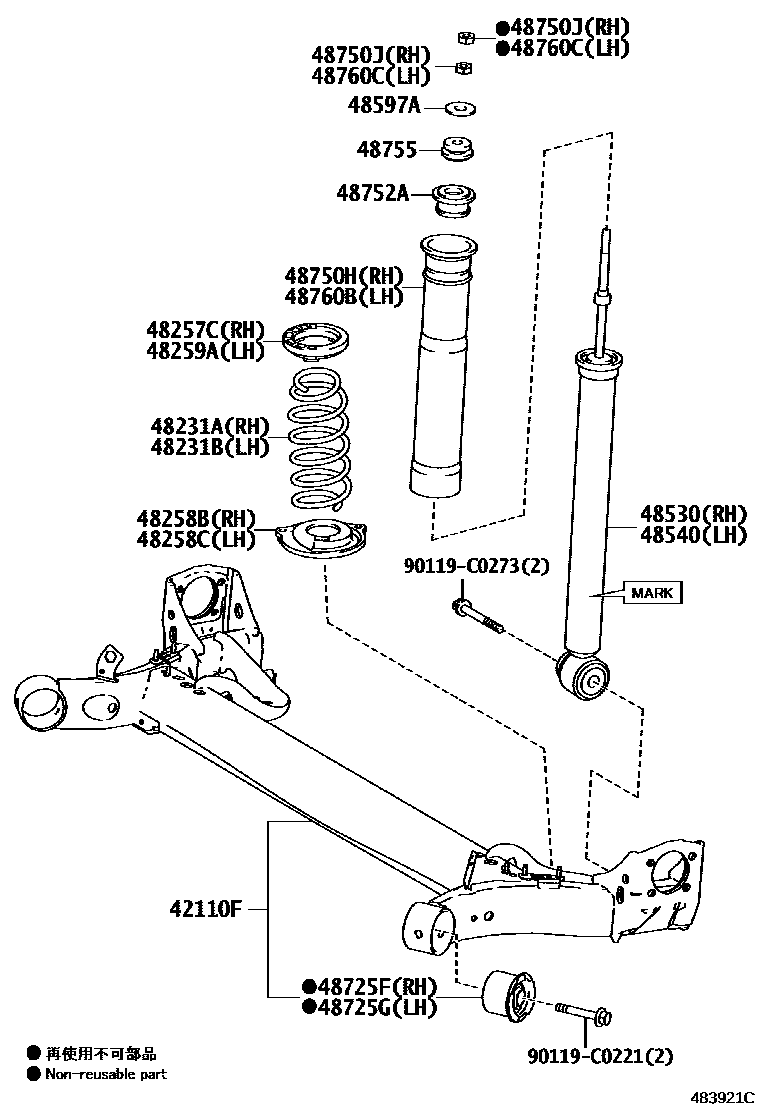

Parts diagram

42110FBEAM ASSY, REAR AXLE

main42110-0D451i201311-201609

48231ASPRING, COIL, REAR RH

main48231-0D450i201311-201510

main48231-0DB10i201511-201609

48231BSPRING, COIL, REAR LH

main48231-0D450i201311-201510

main48231-0DB10i201511-201609

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D100i201311-201609

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D110i201311-201609

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D110i201311-201609

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D100i201311-201609

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0D520i201311-201609

MARK 48530-0D520

main48530-0DF00i201609-202004

MARK 48530-0DF00

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0D520i201311-201609

MARK 48530-0D520

main48530-0DF00i201609-202004

MARK 48530-0DF00

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2i201311-201609

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0D140i201311-201609

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0D140i201311-201609

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0D080i201311-201506

main48750-0D081i201507-201609

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0001×2i201311-201609

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0D090×2i201311-201609

48755SUPPORT, REAR SUSPENSION

main48755-0D170×2i201311-201609

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0D080i201311-201506

main48750-0D081i201507-201609

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0001×2i201311-201609

90119C0221

main90119-C0221

90119C0273

main90119-C0273

20 parts on this diagram · 1 diagram in section
