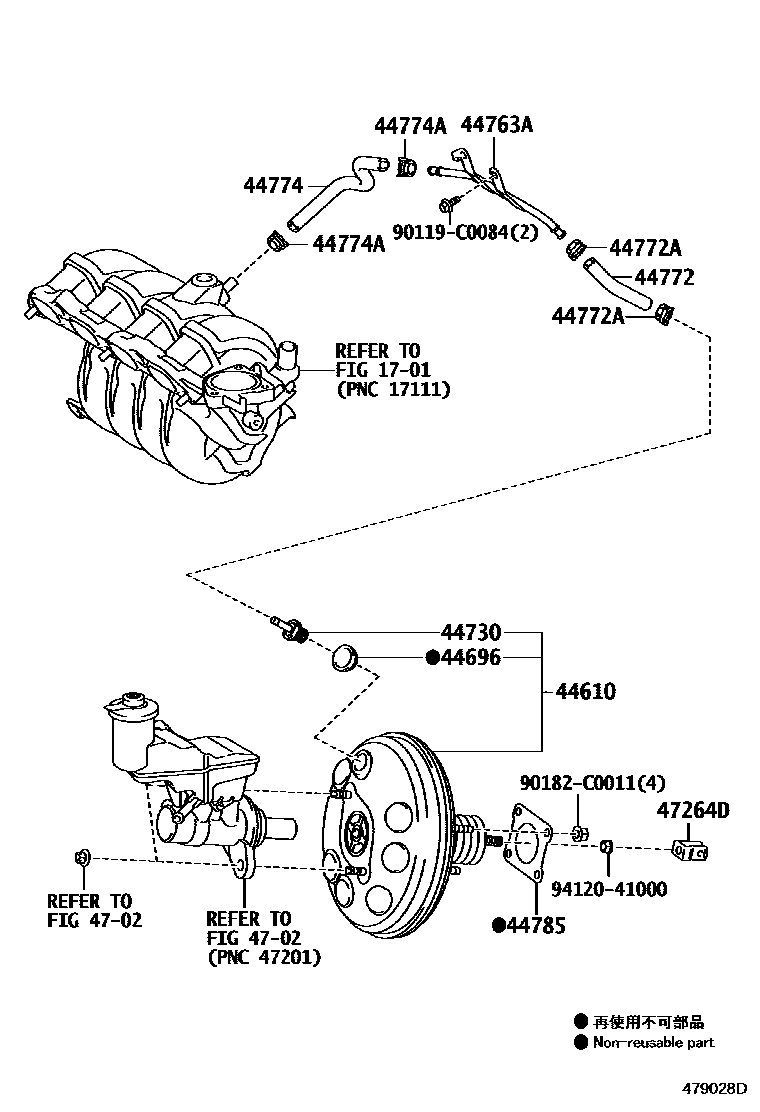

BRAKE BOOSTER & VACUUM TUBE
1701
44696GROMMET, CHECK VALVE
(J)
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44763ATUBE, HOSE TO HOSE, NO.1
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
90119C0084
main90119-C0084
90182C0011
main90182-C0011
9412041000
main94120-41000
15 parts on this diagram · 5 diagrams in section
