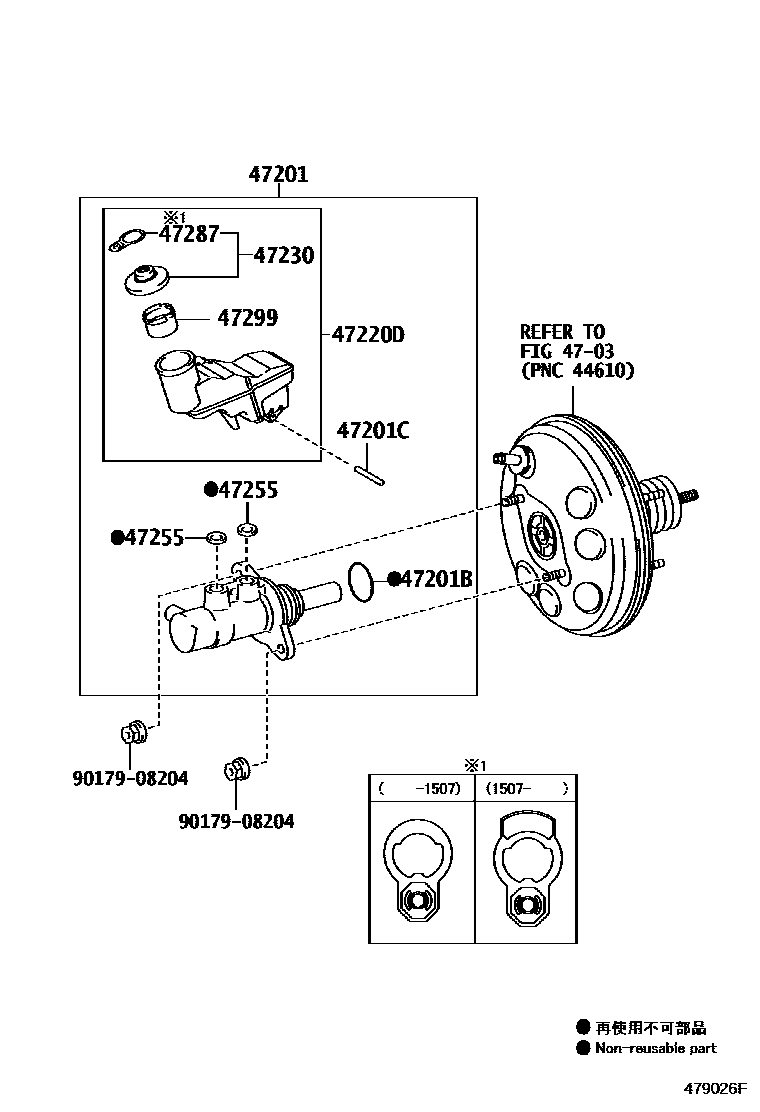

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D390iNSP15#..4FC201311-201609

main47201-0D400iNSP15#..5F201311-201609

main47201-0D570iNSP151..5F201609-202011

sub47201-0DB40

main47201-0D580iNSP151..CVT201609-202011

sub47201-0DB50

main47201-0DB40iNSP151..5F202012

main47201-0DB50iNSP151..CVT202012

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90016-AH902iNSP150201311-202008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP15#201311-202008

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D200iNSP15#..4FC201311-201609

main47220-0D210iNSP15#..5F201311-201609

main47220-0D330iNSP150..5F201609-202011

sub47220-0D500

main47220-0D340iNSP151..CVT201609-202011

sub47220-0D510

main47220-0D500iNSP151..5F202012

main47220-0D510iNSP151..CVT202012

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D200iNSP15#201311-201507

sub47230-0R030

main47230-0R030iNSP15#201507-202008

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002iNSP151201311-202008

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iNSP151201507-202008

main47287-20010iNSP15#201311-201507

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNSP15#201311-202008

9017908204

main90179-08204

10 parts on this diagram · 2 diagrams in section
