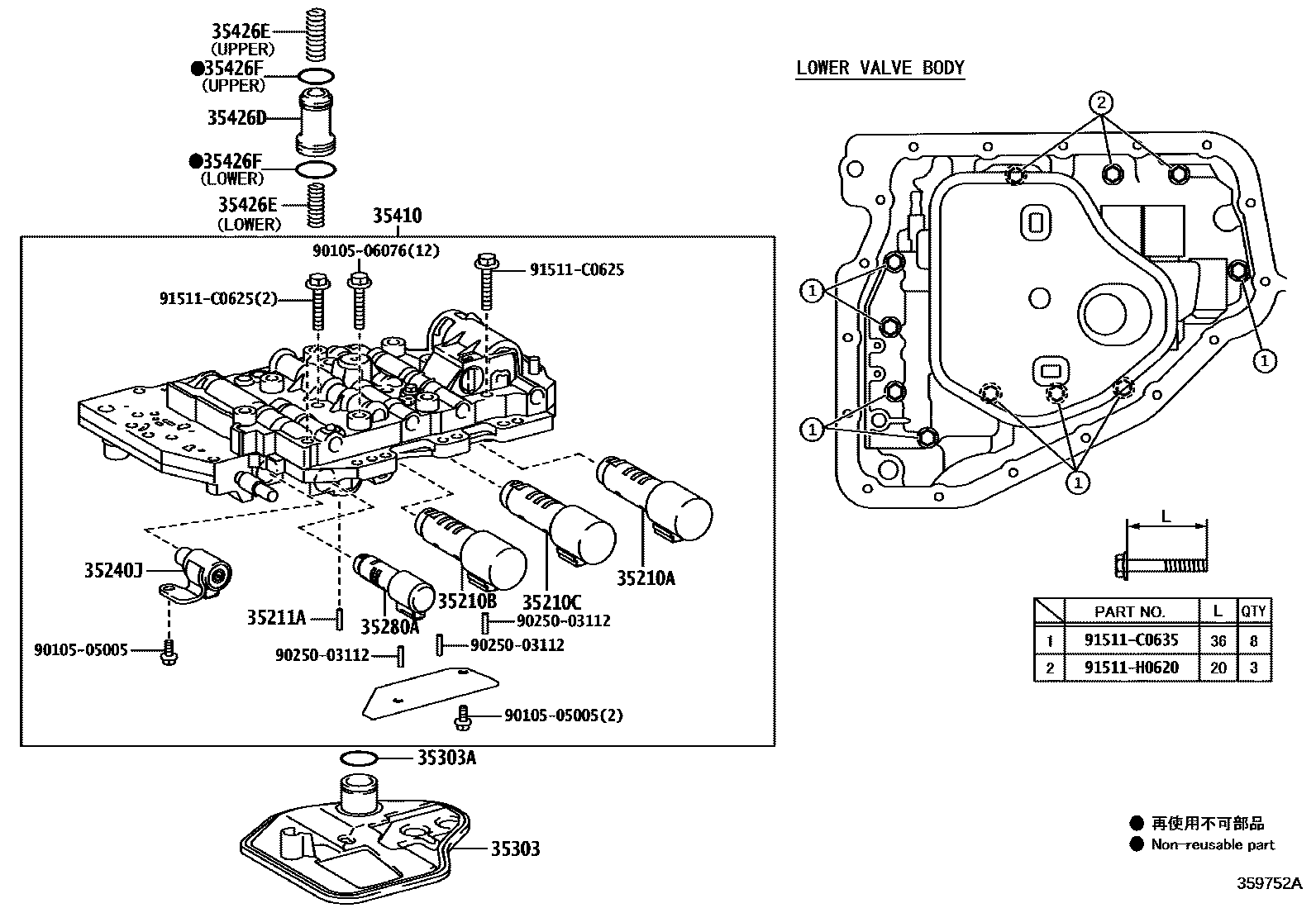

VALVE BODY & OIL STRAINER (ATM)

0001 1U442E 0002 1U442E

35210AVALVE, SOLENOID(SL1)

main35210-0D010iNSP15#..4FC201311-201404

main35210-0D011iNSP15#..4FC201405-201609

sub35210-52040

35210BVALVE, SOLENOID(SL3)

main35270-0D010iNSP15#..4FC201311-201404

main35270-0D011iNSP15#..4FC201405-201609

sub35270-52030

35210CVALVE, SOLENOID(SL2)

main35210-0D010iNSP15#..4FC201311-201404

main35210-0D011iNSP15#..4FC201405-201609

sub35210-52040

35211APIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

main90250-03112iNSP15#..4FC201311-201609

35240JVALVE, SOLENOID(SR)

main35240-0D010iNSP15#..4FC201311-201404

main35240-0D011iNSP15#..4FC201405-201609

sub35240-52080

35280AVALVE, SOLENOID(SLU)

main35280-50030iNSP15#..4FC201311-201609

35303STRAINER SUB-ASSY, OIL

main35303-52020iNSP15#..4FC201311-201609

sub35303-52030

35303ARING, O (FOR OIL STRAINER)

main90301-C0047iNSP15#..4FC201311-201609

sub90301-22014

35410BODY ASSY, TRANSMISSION VALVE

main35410-0D010iNSP15#..4FC201311-201404

main35410-0D011iNSP15#..4FC201405-201609

sub35410-52310

35426DPISTON, C-3 ACCUMULATOR

main35426-52010iNSP15#..4FC201311-201609

35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

main90501-14210iNSP15#..4FC201311-201609

LOWER

main90501-21050iNSP15#..4FC201311-201609

UPPER

35426FRING, O (FOR C-3 ACCUMULATOR PISTON)

main90301-21011iNSP15#..4FC201311-201609

UPPER

main90301-24013iNSP15#..4FC201311-201609

LOWER

9010505005

main90105-05005

9010506076

main90105-06076

9025003112

main90250-03112

91511C0625

main91511-C0625

91511C0635

main91511-C0635

91511H0620

main91511-H0620

18 parts on this diagram · 2 diagrams in section
