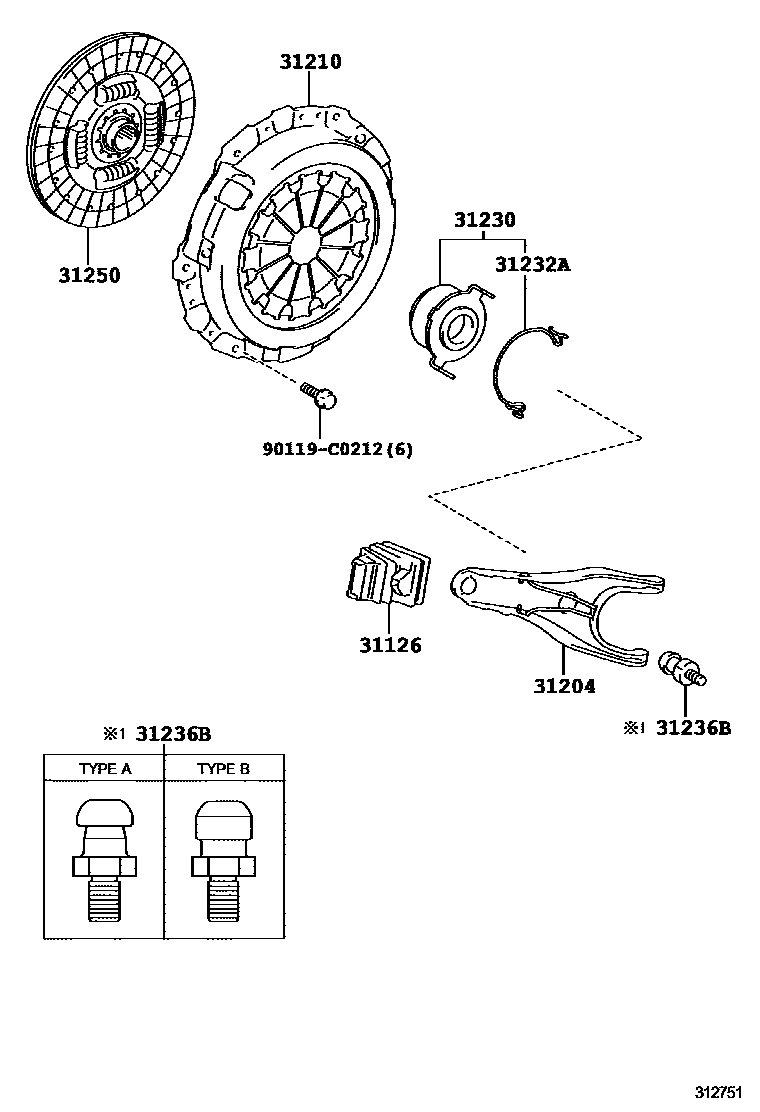

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0D040iNSP15#..5F201401-201609

main31126-12051iNSP15#..5F201311-201401

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D030iNSP151..5F202008

main31204-52010iNSP15#..5F201311-201401

PNC 31236B=TYPE A

31210COVER ASSY, CLUTCH

main31210-0D160iNSP150..5F201609-202004

main31210-0D170iNSP151..5F201609-202008

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010iNSP15#..5F201311-201512

main31230-0D011iNSP15#..5F201512-201609

main31230-0D012iNSP150..5F201709-202004

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iNSP15#..5F201512-201609

main31232-12070iNSP15#..5F201311-201512

31236BSUPPORT, RELEASE FORK

main31236-0D010iNSP150..5F201609-202004

main31236-12020iNSP15#..5F201311-201401

TYPE A:REFER ILLUST.

31250DISC ASSY, CLUTCH

main31250-0D200iNSP150..5F201311-201609

main31250-0D210iNSP151..5F202008

90119C0212

main90119-C0212

8 parts on this diagram · 1 diagram in section
