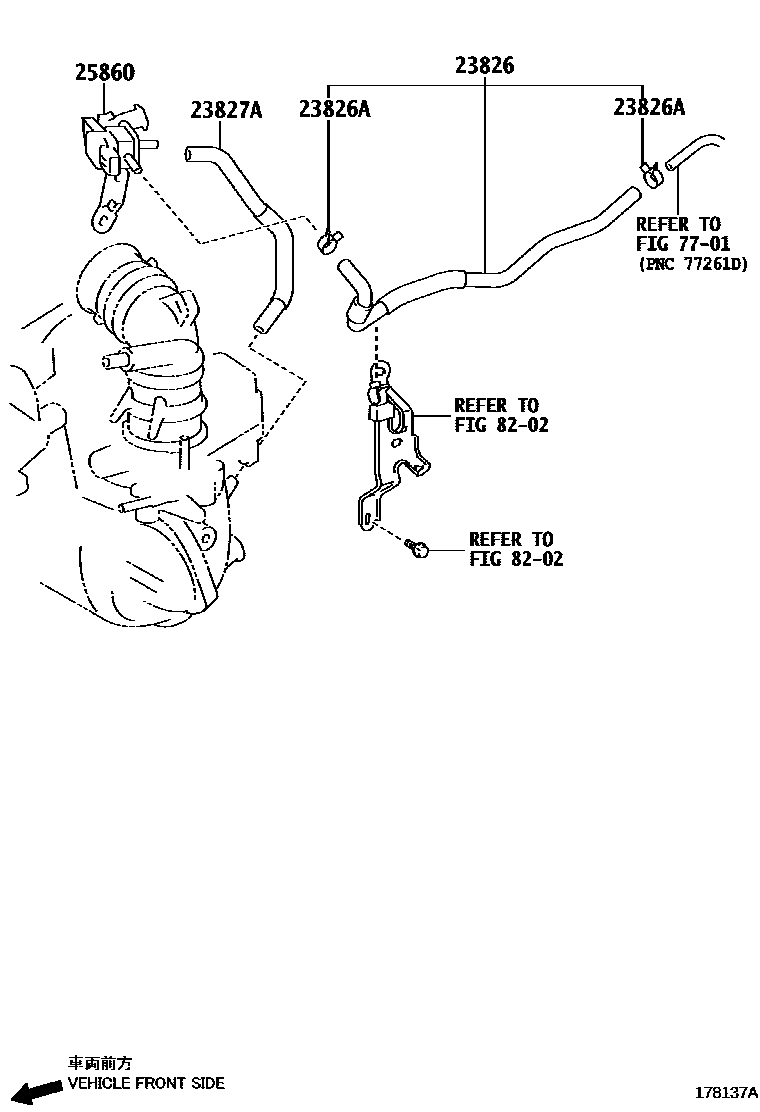

VACUUM PIPING

0001 1 0002 1 0004 1 0005 1 0007 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Y090i4NRFE,5NRF..NSP15#201311-201609

main23826-0Y130i4NRFE..NSP150201609-202004

main23826-0Y300supersedes 23826-0Y290i5NRF..NSP151202008

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i5NRF..NSP151201609-201811

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Y080i4NRFE,5NRF..NSP15#201311-201609

main23827-0Y130i5NRF..NSP151201609-201811

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0Y060i4NRFE,5NRF..NSP15#201311-201609

main25860-0Y070i4NRFE..NSP150201609-202004

7701

8202

6 parts on this diagram · 5 diagrams in section
