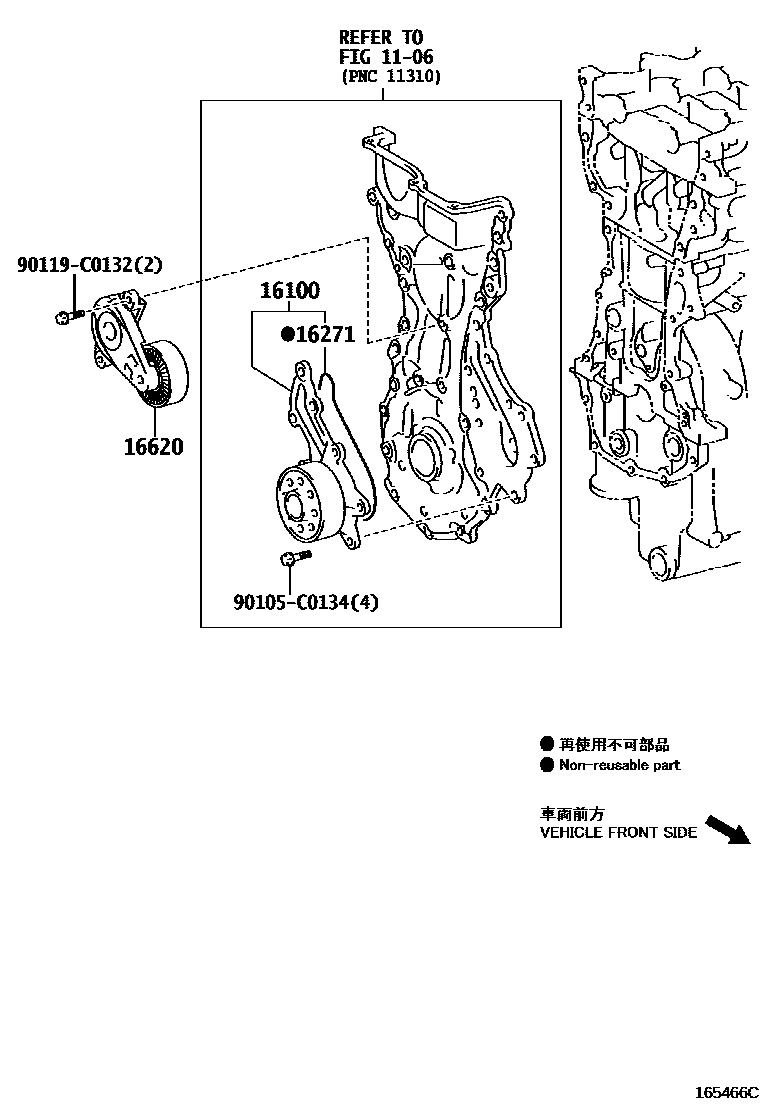

WATER PUMP

0001 1 0003 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09630i4NRFE,5NRF..NSP15#201311-201609

main16100-09790i5NRF..NSP151201811-202008

16271GASKET, WATER PUMP

main16271-0Y020i4NRFE,5NRF..NSP15#201311-201609

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y010i4NRFE,5NRF..NSP15#201311-201607

main16620-0Y040i4NRFE,5NRF..NSP15#201608-201609

main16620-0Y042i4NRFE,5NRF..NSP15#201804-201907

main16620-0Y043i4NRFE..NSP150201908-202004

main16620-0Y044i5NRF..NSP151202110

90105C0134

main90105-C0134

90119C0132

main90119-C0132

6 parts on this diagram · 2 diagrams in section
