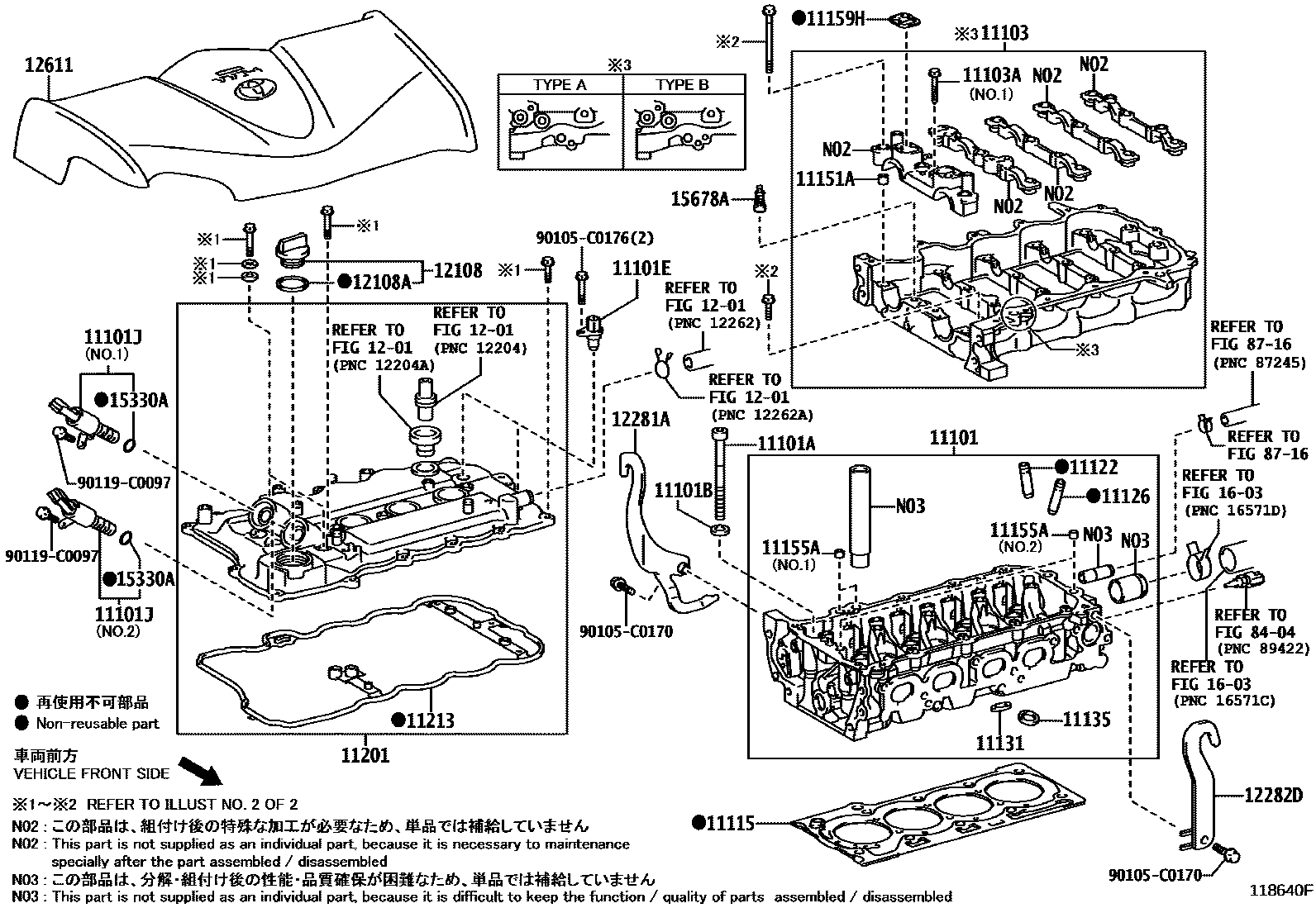

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11103ABOLT(FOR CAMSHAFT HOUSING SET)
NO.2:REFER ILLUST.
(J),NO.1:SEE ILLUST
(L),NO.1:SEE ILLUST
NO.1:REFER ILLUST.
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD,(L)
STD
STD,(J)
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD
STD,(J)
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,(J)
L=12.5,OD=8,(L)
L=12.5,OD=8
11155APIN, RING W/HEAD
NO.1:REFER ILLUST.
NO.1 & NO.2:REF ILL.
NO.2:REFER ILLUST.
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
8404
8716
90105C0170
main90105-C0170
90105C0176
main90105-C0176
90119C0097
main90119-C0097
31 parts on this diagram · 4 diagrams in section
