HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1SENSOR

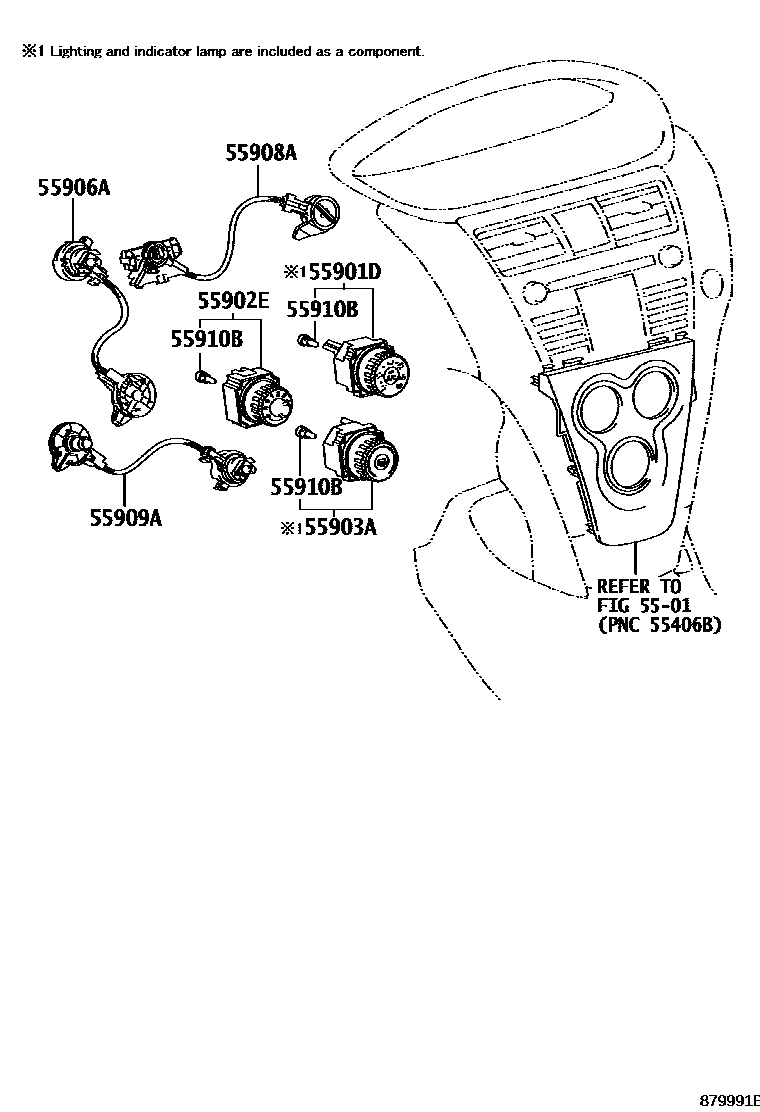

5501

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0D080iZSP92..GLS200802-201008

main55901-0D090iNCP92,ZSP92..GLI,GLXI200802-201008

main55901-0D260iZSP92..GLS201008-201303

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0D070iZSP92..GLS200802-201008

main55902-0D080iNCP92,ZSP92..GLI,GLXI200802-201008

main55902-0D190iZSP92..GLS201008-201303

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0D080iZSP92..GLS200802-201008

main55903-0D090iNCP92,ZSP92..GLI,GLXI200802-201008

main55903-0D230iZSP92..GLS201008-201303

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP92,ZSP92200802-201307

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52120iNCP92,ZSP92200802-201307

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP92,ZSP92200802-201307

55910BBULB, HEATER CONTROL

main90010-01112iNCP92,ZSP92..GLI,GLXI200802-201303

main90010-01113iNCP92,ZSP92..GLI,GLXI200802-201008

8 parts on this diagram · 3 diagrams in section
