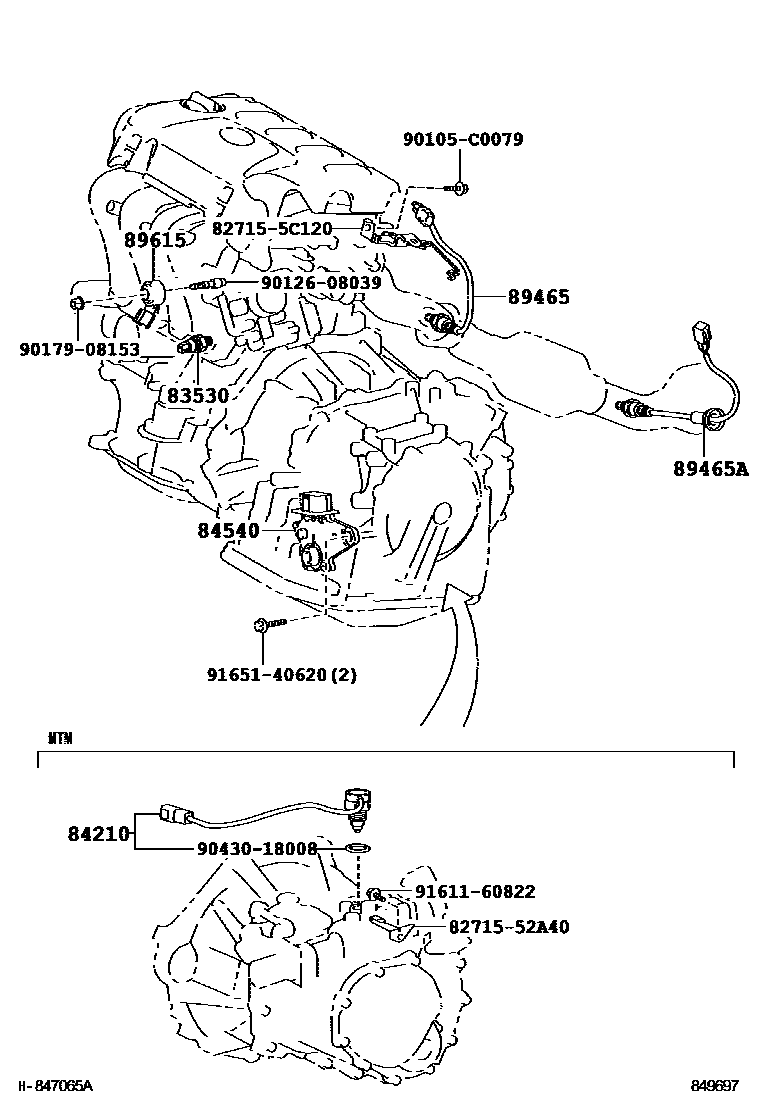

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1DOOR,ROOF,FLOOR, & LAGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iNCP92,ZSP92..GLI,GLXI200802-201303

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP92,ZSP92..5F200802-201307

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP92..4FC200802-201307

main84540-52080iZSP92..4FC200802-201307

89465SENSOR, OXYGEN

main89465-12880iZSP92200802-201011

main89465-52380iNCP92200802-201008

main89467-12210iNCP92201008

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

main89467-52060iZSP92201008-201011

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITH(ON BOARD DIAGNOSIS)

main89467-52060iZSP92201008-201011

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

main89467-52060iZSP92..GLI,GLXI201011-201303

89465ASENSOR, OXYGEN NO.2

main89465-0D200iZSP92200802-201303

main89465-52370iNCP92200802-201008

main89465-52480iNCP92201008

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP92,ZSP92200802-201303

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

90105C0079

main90105-C0079

9012608039

main90126-08039

9017908153

main90179-08153

9043018008

main90430-18008

9161160822

main91611-60822

9165140620

main91651-40620

14 parts on this diagram · 8 diagrams in section
