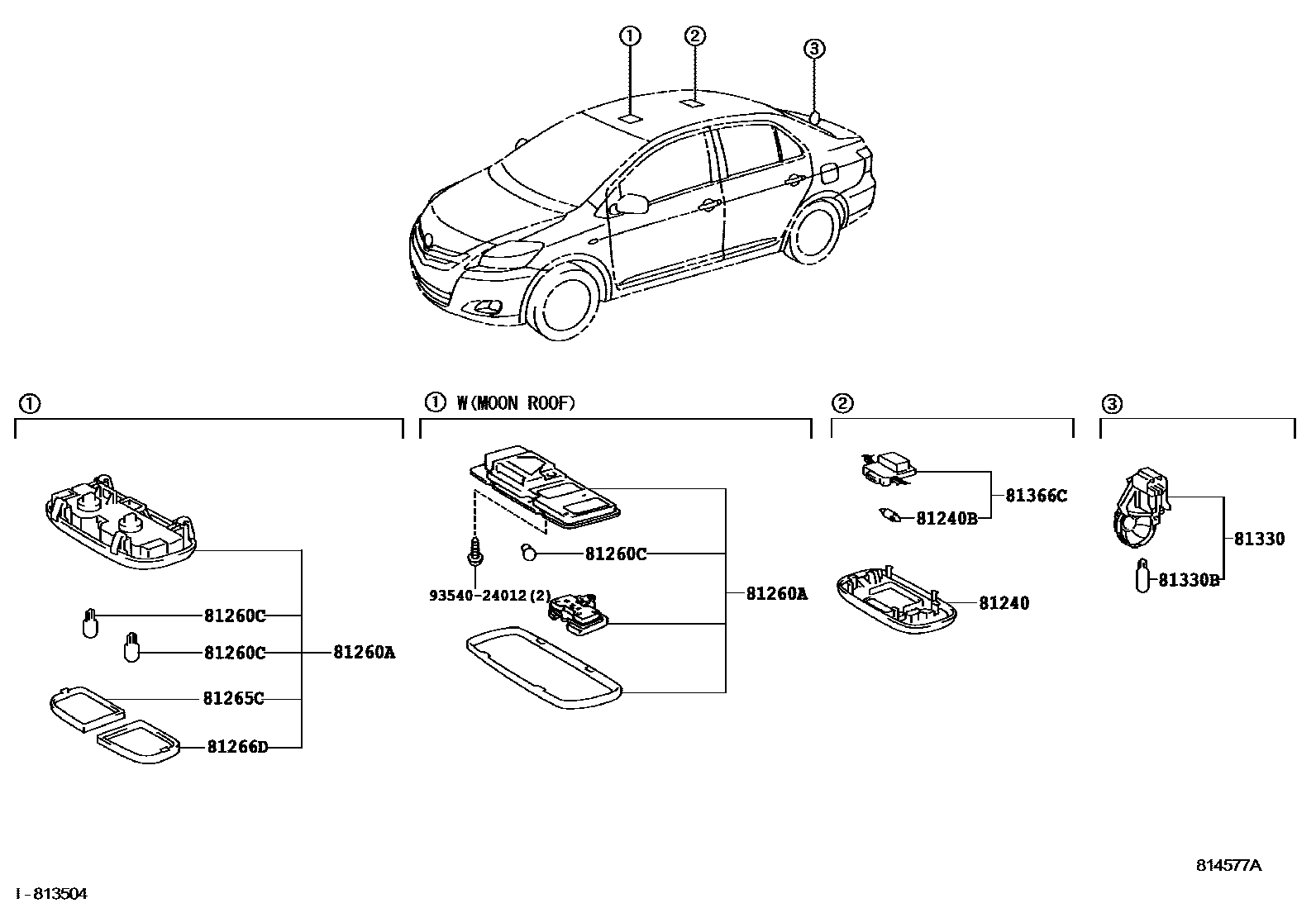

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B0iZSP92..GLS200802-201303

GRAY,TRIM1#

main81240-52040-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP92,ZSP92200802-201303

12V 8W

81260ALAMP ASSY, MAP

main81260-52030-B0iZSP92..GLS200802-201303

GRAY,TRIM1#

main81260-52030-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

main81260-63010-E0iZSP92..GLI200802-201303

MOON ROOF-WITH,GREGE,TRIM4#

main81260-63010-E0iZSP92..GLI201008-201307

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-11062iZSP92..GLI,GLS200802-201303

12V 8W

main90981-12014iZSP92..GLI200802-201303

12V 10W,MOON ROOF-WITH

main90981-12014iZSP92..GLXI201008

12V 10W

81265CLENS, MAP LAMP, NO.1

main81265-52020iZSP92..GLI,GLS200802-201303

81266DLENS, MAP LAMP, NO.2

main81266-52020iNCP92,ZSP92200802-201303

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iZSP92..GLS200802-201303

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNCP92,ZSP92200802-201303

12V 3.8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iNCP92,ZSP92200802-201307

9354024012

main93540-24012

10 parts on this diagram · 1 diagram in section
