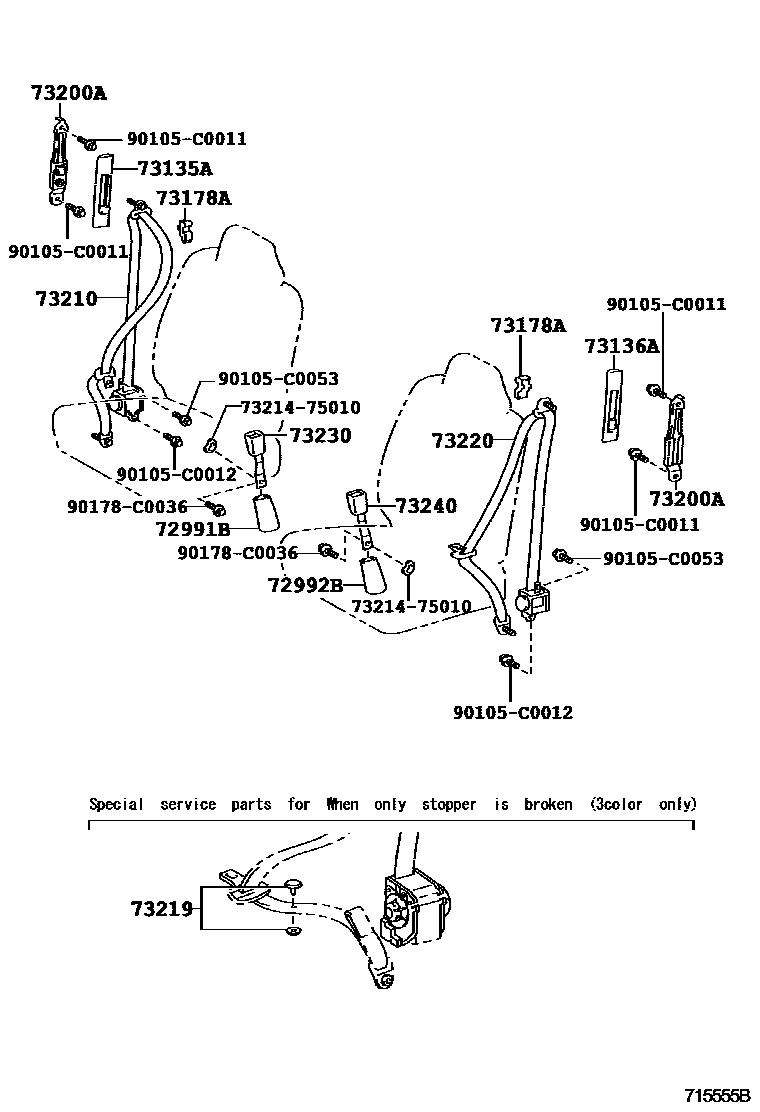

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

72991BCOVER, FRONT SEAT CUSHION, RH

main72991-0D060-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main72991-0D060-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

72992BCOVER, FRONT SEAT CUSHION, LH

main72991-0D060-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main72991-0D060-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73135-52020-B0iZSP92..GLS200802-201303

GRAY,TRIM1#

main73135-52020-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73135-52020-B0iZSP92..GLS200802-201303

GRAY,TRIM1#

main73135-52020-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-52020-B0iZSP92..GLS200802-201303

GRAY,TRIM1#

main73178-52020-E1iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52050-B1iZSP92..GLS200802-201303

GRAY,TRIM1#

main73200-52050-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D240-B2iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

sub73210-0D240

main73210-0D240-E1iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

sub73210-0D240

main73210-0D240-E2iNCP92,ZSP92..GLI,GLXI201008-201307

GREGE,TRIM4#

sub73210-0D240

73219STOPPER, TONGUE PLATE

main73219-33010iNCP92,ZSP92..GLI,GLXI201008-201303

BLACK

main73219-33020iZSP92..GLS201008-201303

GRAY

main73219-33030iZSP92..GLS201008-201303

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D220-B2iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

sub73220-0D220

main73220-0D220-E1iNCP92,ZSP92..GLI,GLXI200802-201008

GREGE,TRIM4#

sub73220-0D220

main73220-0D220-E2iNCP92,ZSP92..GLI,GLXI201008-201307

GREGE,TRIM4#

sub73220-0D220

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D230-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main73230-0D230-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D220-B0iZSP92..GLS200802-201303

DK.GRAY,TRIM1#

main73230-0D220-E0iNCP92,ZSP92..GLI,GLXI200802-201307

GREGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90178C0036

main90178-C0036

16 parts on this diagram · 2 diagrams in section
