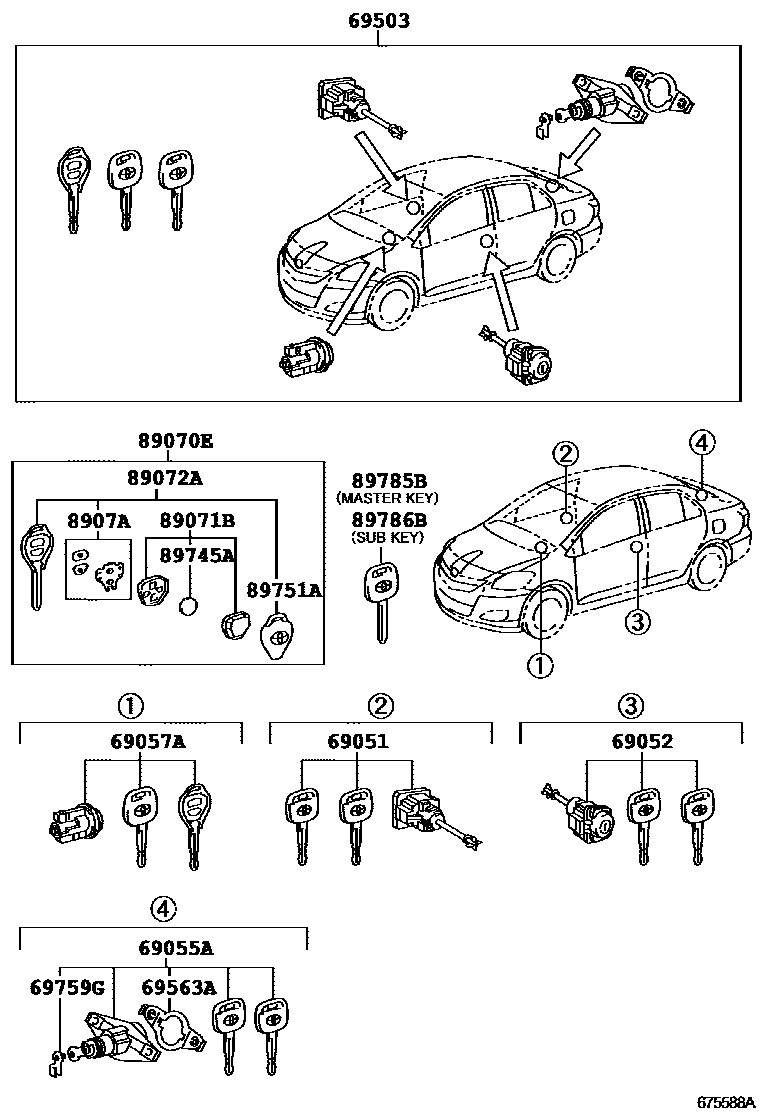

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) 0003 1W(SMART ENTRY)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0D110iNCP92,ZSP92200802-201303

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0D110iNCP92,ZSP92200802-201303

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-0D100iNCP92,ZSP92200802-201303

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0D170iNCP92,ZSP92200802-201008

main69057-0D230iZSP92..GLS201008-201303

69503CYLINDER SET, LOCK

main69005-0D230iNCP92,ZSP92200802-201008

main69005-0D430iZSP92..GLS201008-201303

main69005-0D450iZSP92..GLXI201008

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-52060iNCP92,ZSP92200802-201303

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iNCP92,ZSP92200802-201303

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-02590iNCP92,ZSP92..GLI,GLS201008-201103

main89070-02591iNCP92,ZSP92..GLI201104-201303

main89070-0D180iNCP92,ZSP92200802-201008

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-02050iZSP92..GLS201008-201303

main89071-0D040iNCP92,ZSP92200802-201008

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-02340iNCP92,ZSP92..GLI,GLS201008-201104

main89072-02341iZSP92..GLS201104-201303

main89072-0D120iNCP92,ZSP92200802-201008

8907ASWITCH SET, TRANSMITTER

main8907A-28010iNCP92,ZSP92200802-201303

89745ABATTERY, TRANSMITTER

main89745-48030iNCP92,ZSP92..GLI200802-201303

main89745-52020iZSP92..GLXI201008

89751ACOVER, TRANSMITTER HOUSING

main89751-0D020iNCP92,ZSP92200802-201104

main89751-0D021iZSP92..GLS201104-201303

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iNCP92,ZSP92200802-201008

main89785-60210iZSP92..GLS201008-201303

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iNCP92,ZSP92200802-201008

BLANK KEY

main89786-60220iZSP92..GLS201008-201303

BLANK KEY

15 parts on this diagram · 2 diagrams in section
