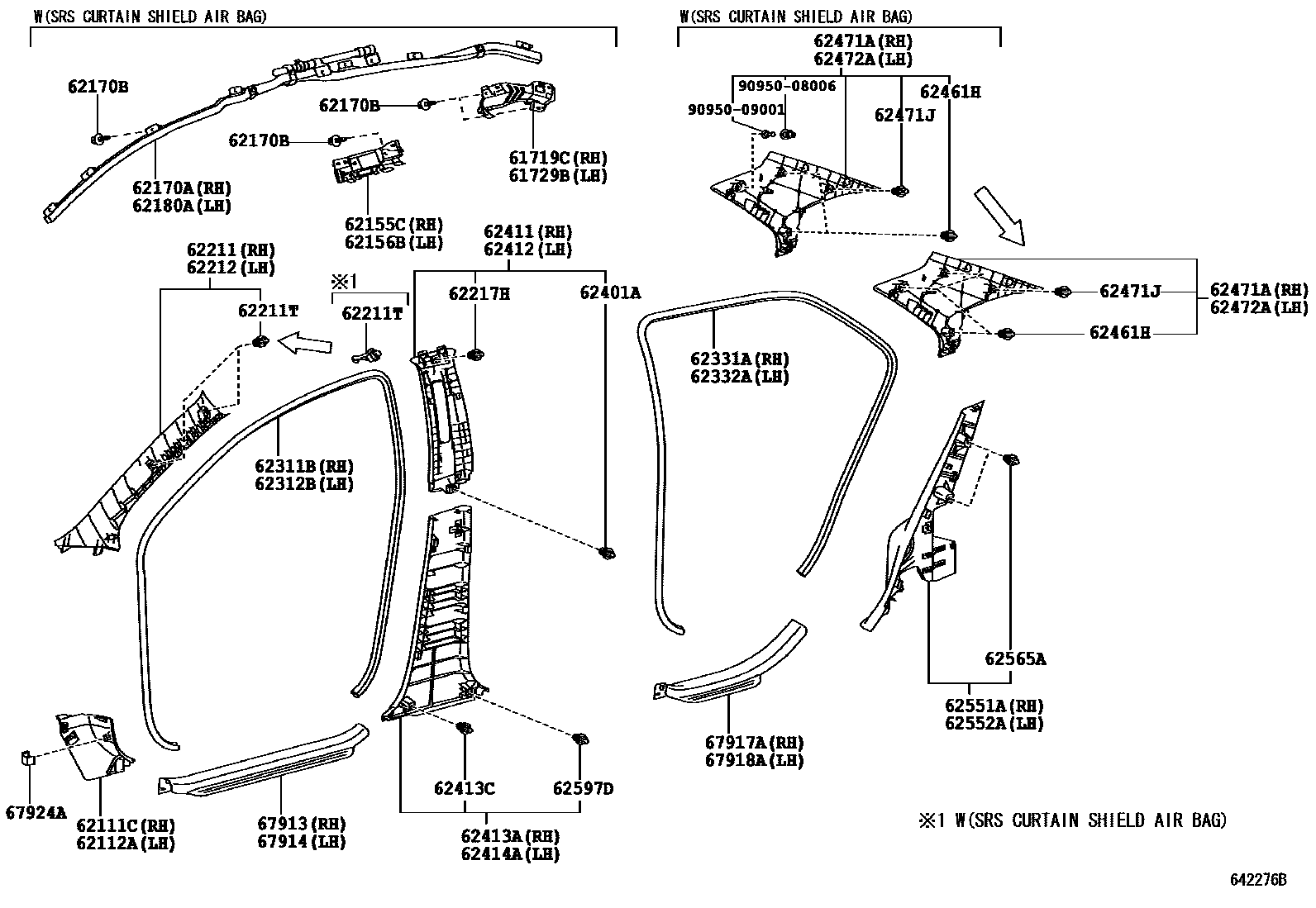

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
61719CBRACKET, ROOF SIDE RAIL, RH
61729BBRACKET, ROOF SIDE RAIL, LH
62111CBOARD, COWL SIDE TRIM, RH
62112ATRIM SUB-ASSY, COWL SIDE, LH
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM1#
GREGE,TRIM4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM1#
GREGE,TRIM4#
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
GRAY,TRIM1#
GREGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
GRAY,TRIM1#
GREGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM1#
GREGE,TRIM4#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM1#
GREGE,TRIM4#
62551ACOVER, REAR SEAT SIDE, RH
62552ACOVER, REAR SEAT SIDE, LH
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
62597DCLIP
67913PLATE, FRONT DOOR SCUFF, RH
sub67913-0D141
67914PLATE, FRONT DOOR SCUFF, LH
sub67914-0D151
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67924ACLAMP, DOOR SCUFF PLATE, NO.2
9095008006
9095009001
38 parts on this diagram · 1 diagram in section
